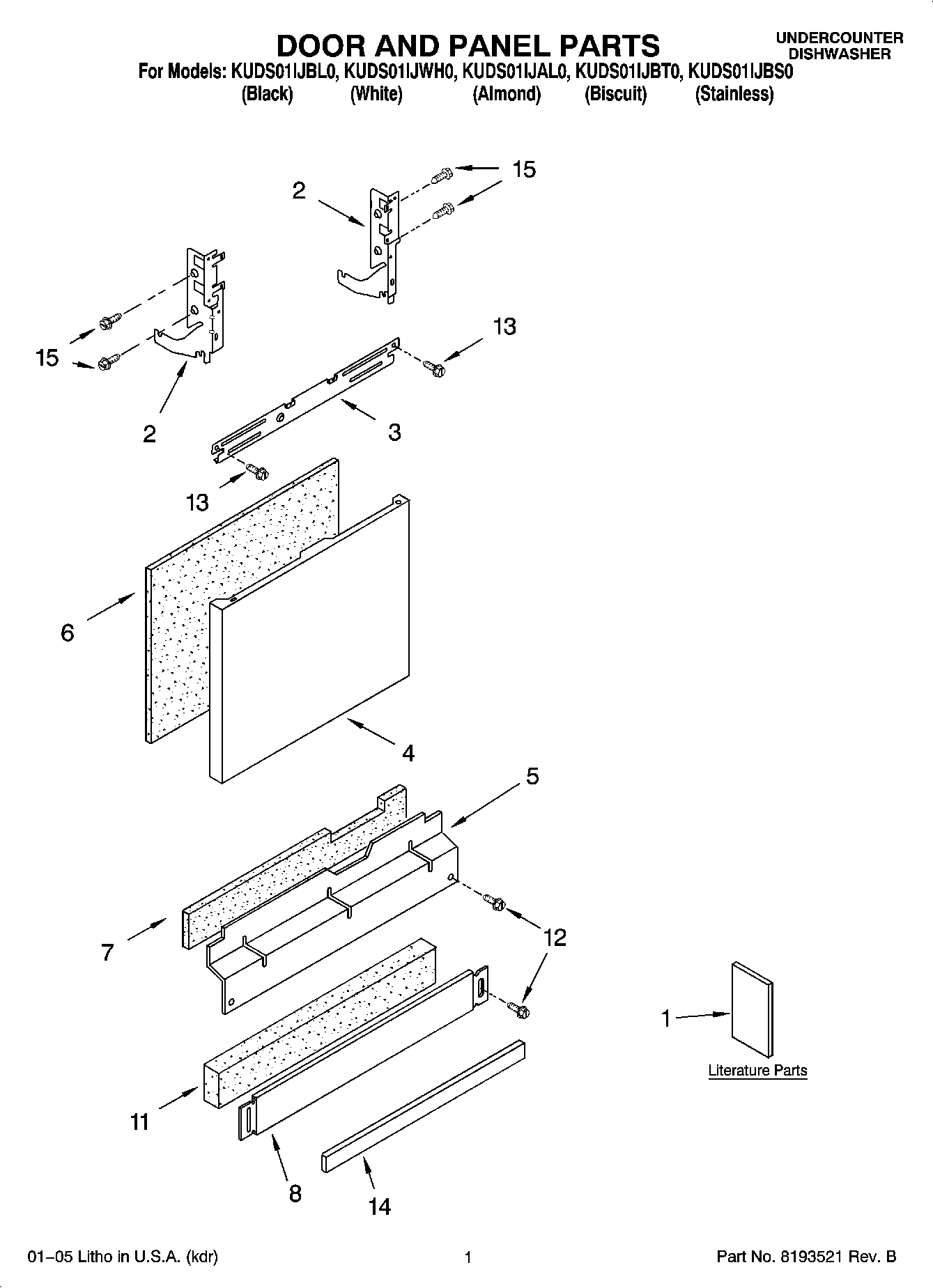

KUDS01IJBS0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (English)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Energy Guide)
1	Literature Parts (French)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	W10384707 Whirlpool Dishwasher Panel
4	Panel Front (White)
4	W10301571 Whirlpool Dishwasher Panel
4	W10301577 Whirlpool Outer Door Panel
4	Panel Front (Almond)
5	W10871198 Whirlpool Dishwasher Panel
5	Access Panel (Includes Item 7) (Almond)
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
8	Toe Panel (Includes Item 11) (Biscuit)
8	W10871196 Whirlpool Toekick Plate
8	Toe Panel (Includes Item 11) (Almond)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
11	SHIELD
12	WPW10503550 Whirlpool Dishwasher Retainer
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	Seal, Toe Panel
15	WP3400071 Whirlpool Screw
