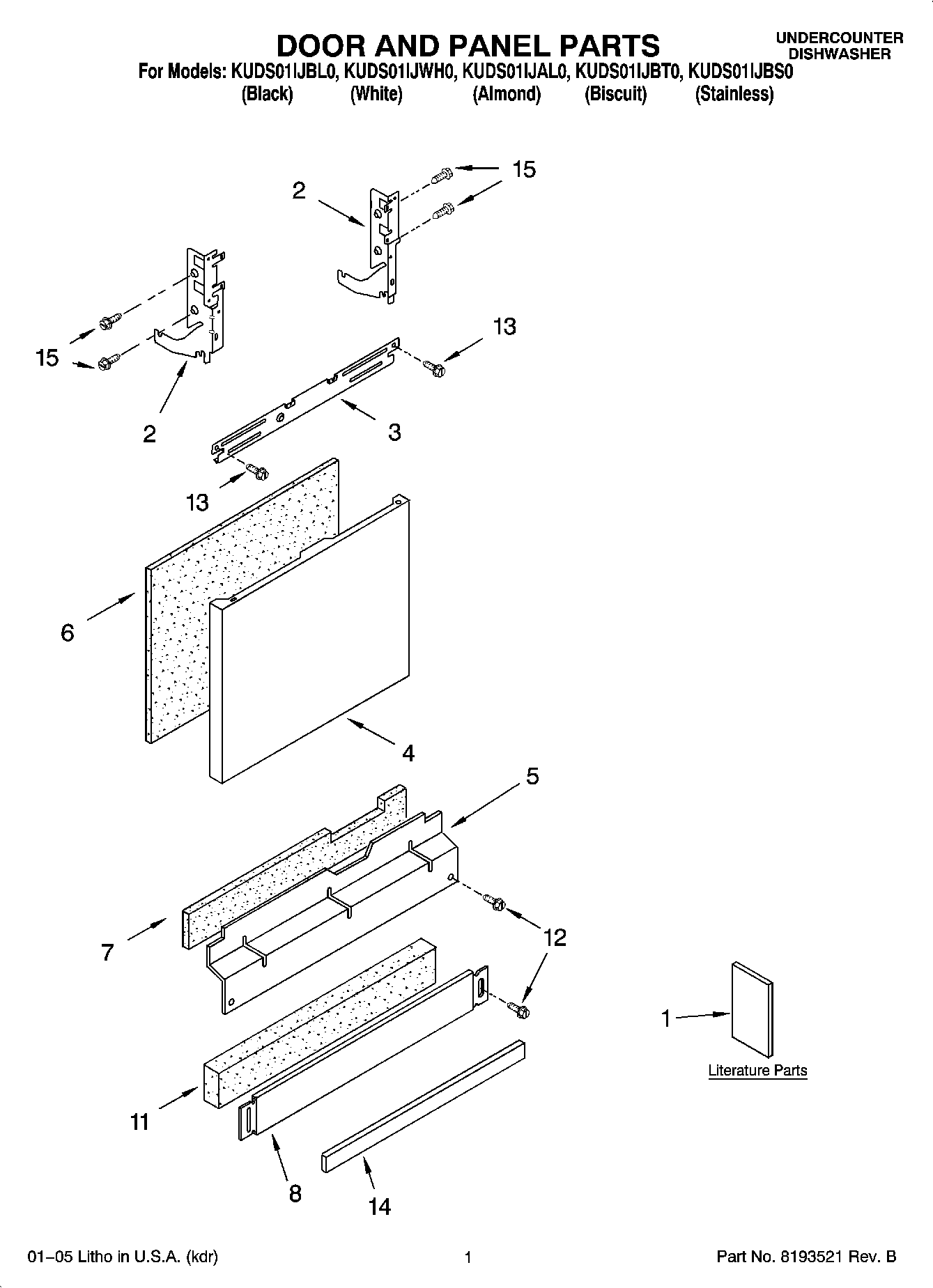

KUDS01IJWH0 01 – DOOR AND PANEL PARTS

KUDS01IJWH0 01 – DOOR AND PANEL PARTS

Written by

in

KUDS01IJWH0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Literature Parts (English)
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care Tech Sheet)
1Literature Parts (Energy Guide)
1Literature Parts (French)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W10384707 Whirlpool Dishwasher Panel
4Panel Front (White)
4W10301571 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
4Panel Front (Almond)
5W10871198 Whirlpool Dishwasher Panel
5Access Panel (Includes Item 7) (Almond)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8Toe Panel (Includes Item 11) (Biscuit)
8W10871196 Whirlpool Toekick Plate
8Toe Panel (Includes Item 11) (Almond)
8WPW10586591 Whirlpool Dishwasher Toe Panel
11SHIELD
12WPW10503550 Whirlpool Dishwasher Retainer
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14Seal, Toe Panel
15WP3400071 Whirlpool Screw
