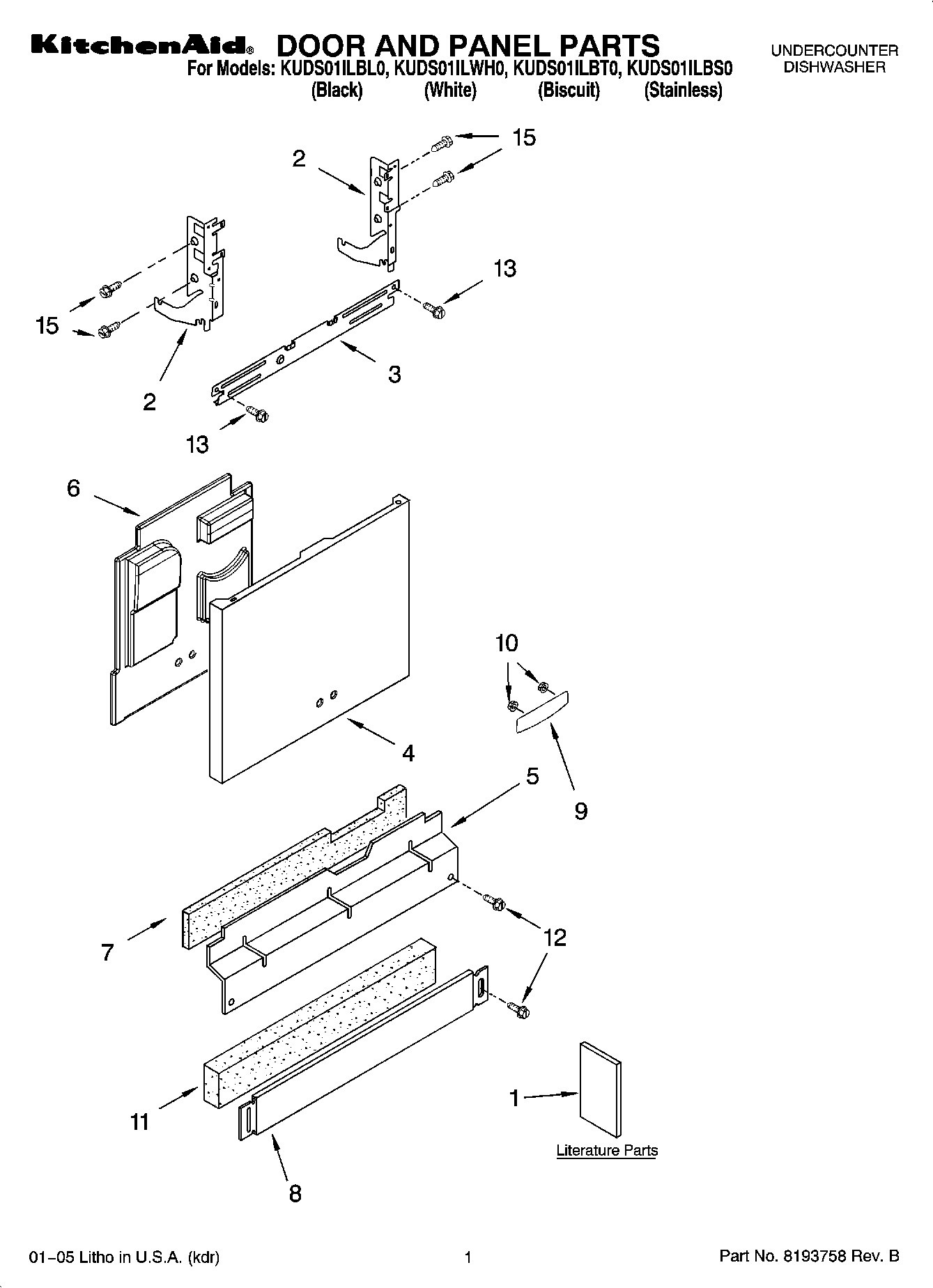

KUDS01ILBS0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (English/French)
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Instructions, Installation)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	W10301577 Whirlpool Outer Door Panel
4	Panel Front (Includes Item 6) (Biscuit)
4	Panel Front (Includes Item 6) (White)
4	Panel Front (Includes Item 6) (Black)
5	W10871198 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	Brace, Foam
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	Toe Panel (Includes Item 11) (Biscuit)
9	Nameplate (White)
9	Nameplate (Black)
9	Nameplate (Biscuit)
10	WP2004333 Whirlpool Refrigerator Nut
11	SHIELD
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WPW10503550 Whirlpool Dishwasher Retainer
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
