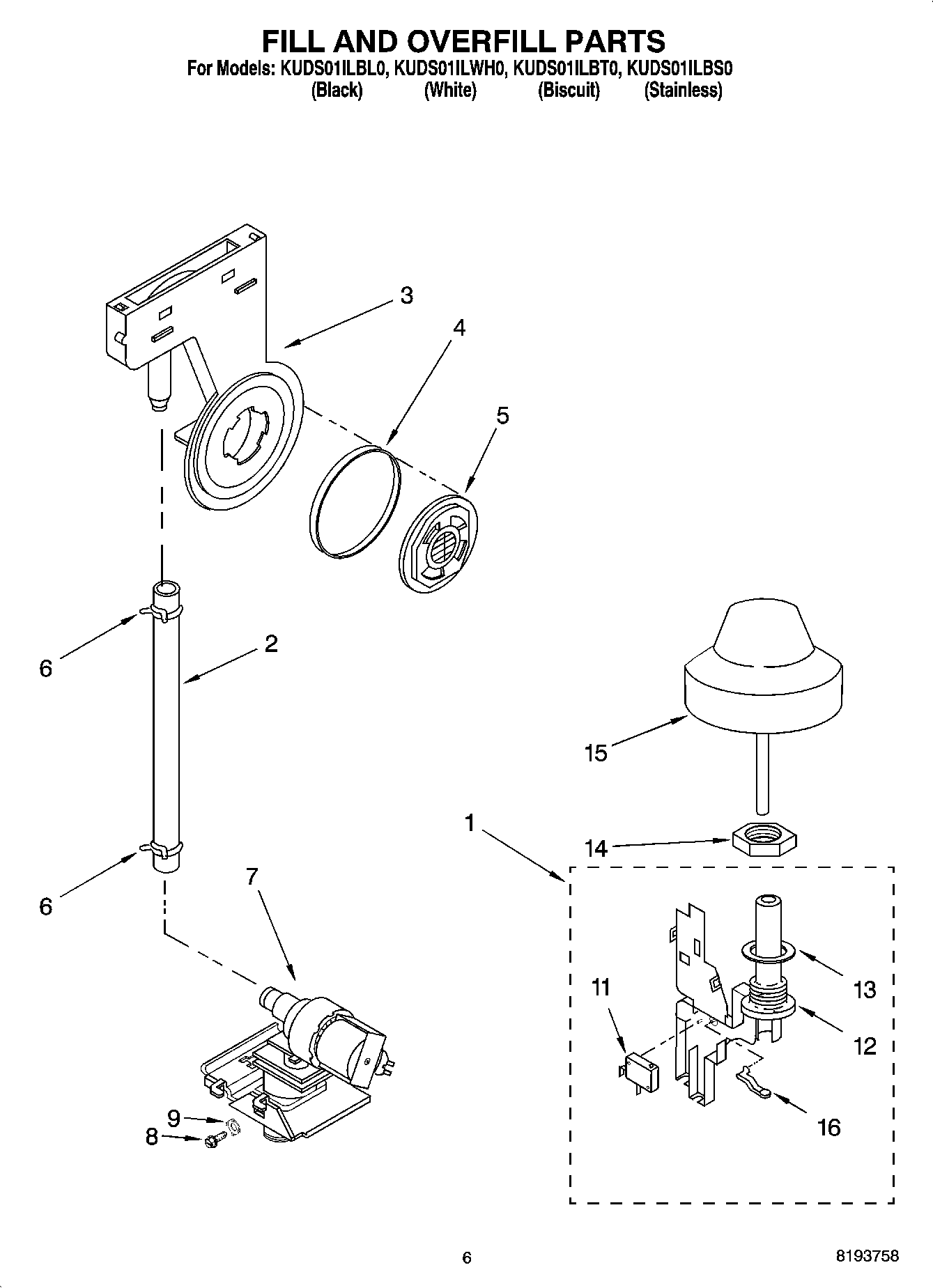

KUDS01ILBS0 06 – FILL AND OVERFILL PARTS

Products

Position	Product
1	8193506 Whirlpool Dishwasher Switch
2	WP8269242 Whirlpool Dishwasher Fill Hose
3	Water Inlet Assembly (Includes Items 4 & 5)
4	Gasket
5	Bezel, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP8531669 Whirlpool Dishwasher Inlet Valve
8	WP3400014 Whirlpool Dishwasher Screw
9	WP3378128 Whirlpool Dishwasher Washer
11	WP8268909 Whirlpool Dishwasher Switch
13	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14	WP9741998 Whirlpool Dishwasher Nut
15	WP8268895 Whirlpool Dishwasher Float Assembly
16	WP8268892 Whirlpool Dishwasher Lever
