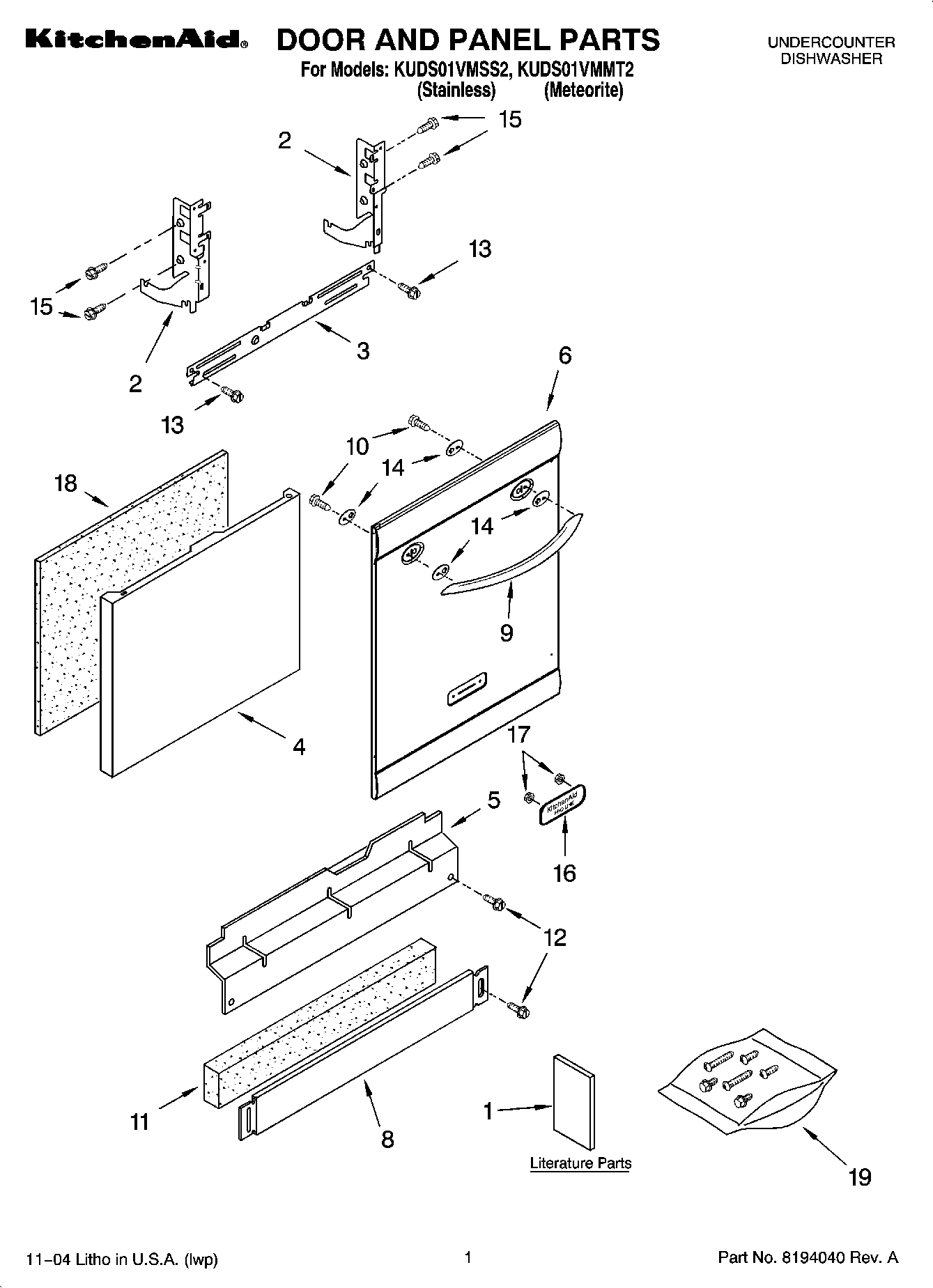

KUDS01VMMT2 01 – DOOR AND PANEL PARTS

KUDS01VMMT2 01 – DOOR AND PANEL PARTS

Written by

in

KUDS01VMMT2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Guide, Use & Care DVD Tech Sheet
1Energy Guide
1Tech Sheet (English/French)
1Instructions, Installation
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 14, 16, & 17) (Meteorite)
6Panel, Full Front (Includes Items 16 & 17) (Stainless)
8W10909064 Whirlpool Dishwasher Black Access Panel
9Handle
10Screw
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14Plate, Backing (Rear)
14Plate, Backing (Front)
15WP3400071 Whirlpool Screw
16Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18Insulation, Door
19Screws, Bag Door Assembly (Includes 8 Screws)
