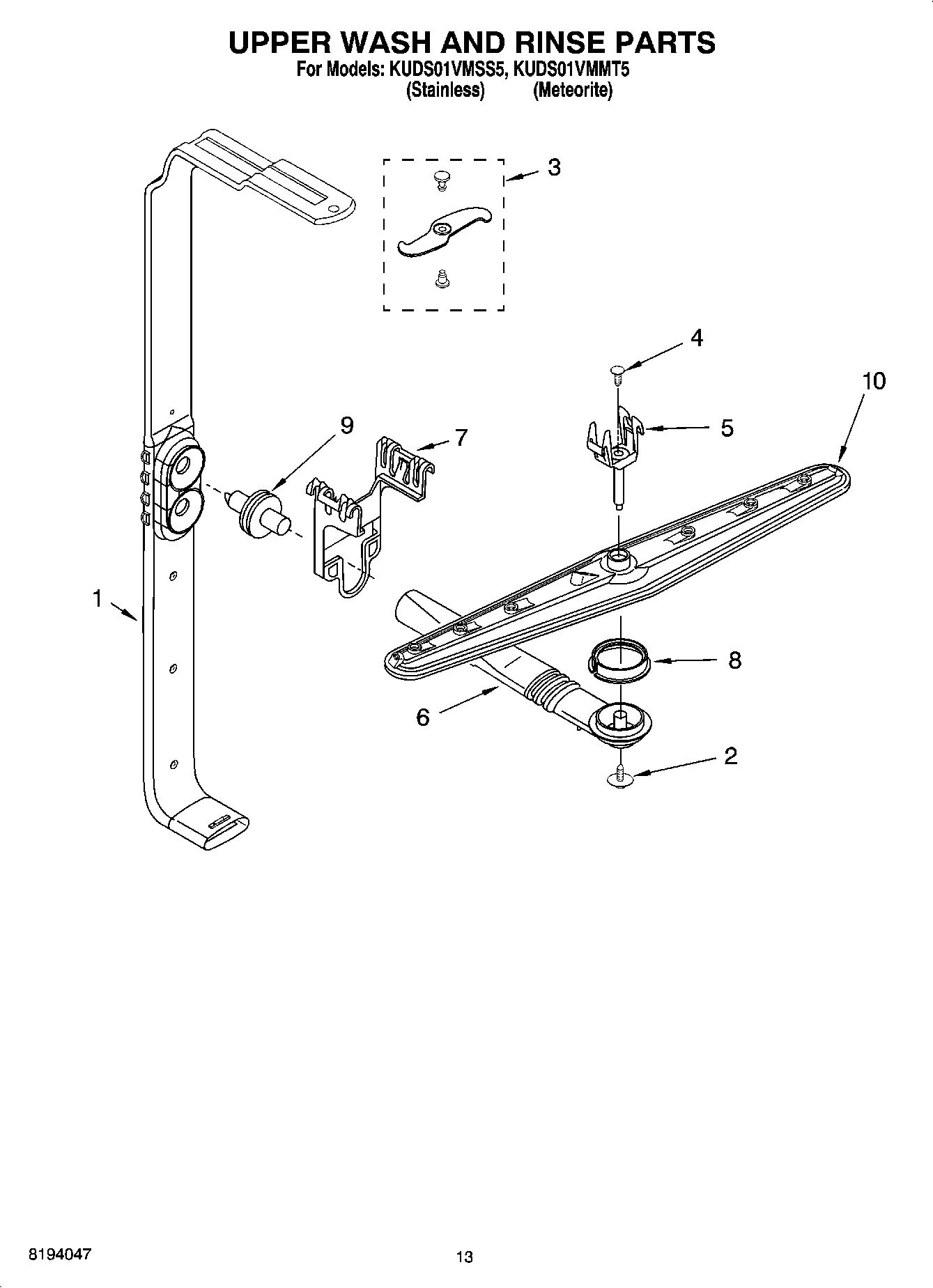

KUDS01VMMT5 10 – UPPER WASH AND RINSE PARTS

KUDS01VMMT5 10 – UPPER WASH AND RINSE PARTS

Written by

in

KUDS01VMMT5 10 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1WPW10077863 Whirlpool Dishwasher Feed Tube
2WPW10349488 Whirlpool Screw
3Sprayarm, 3rd Level
4WP3400920 Whirlpool Screw Cover
5WP8268321 Whirlpool Dishwasher Mount
6WPW10323423 Whirlpool Manifold
7WP8268349 Whirlpool Dishwasher Spray Arm Tube Hanger
8WP8268433 Whirlpool Seal Assembly
9WPW10082831 Whirlpool Dishwasher Probe
10WP8535086 Whirlpool Dishwasher Spray Arm
