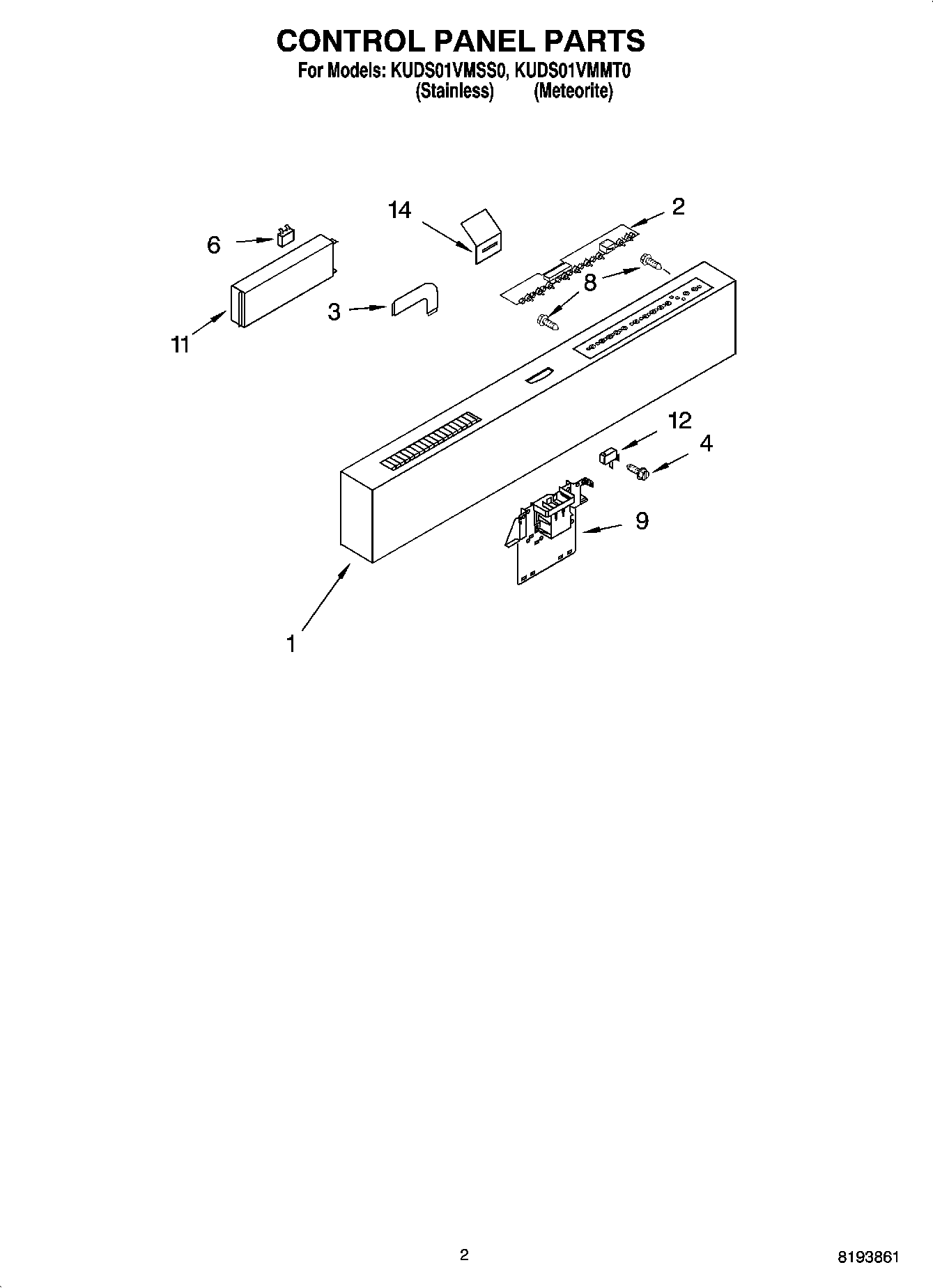

KUDS01VMSS0 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Console Assembly (Includes Decorative Insert)
2	User Interface
3	Cable, Ribbon
4	WP3400412 Whirlpool Dishwasher Screw
6	8193762 Whirlpool Fuse Kit
8	WPW10348409 Whirlpool Screw
9	8193830 Whirlpool Dishwasher Door Latch Switch Kit
11	Control, Electronic
12	WP8269209 Whirlpool Door Switch
14	Shield
