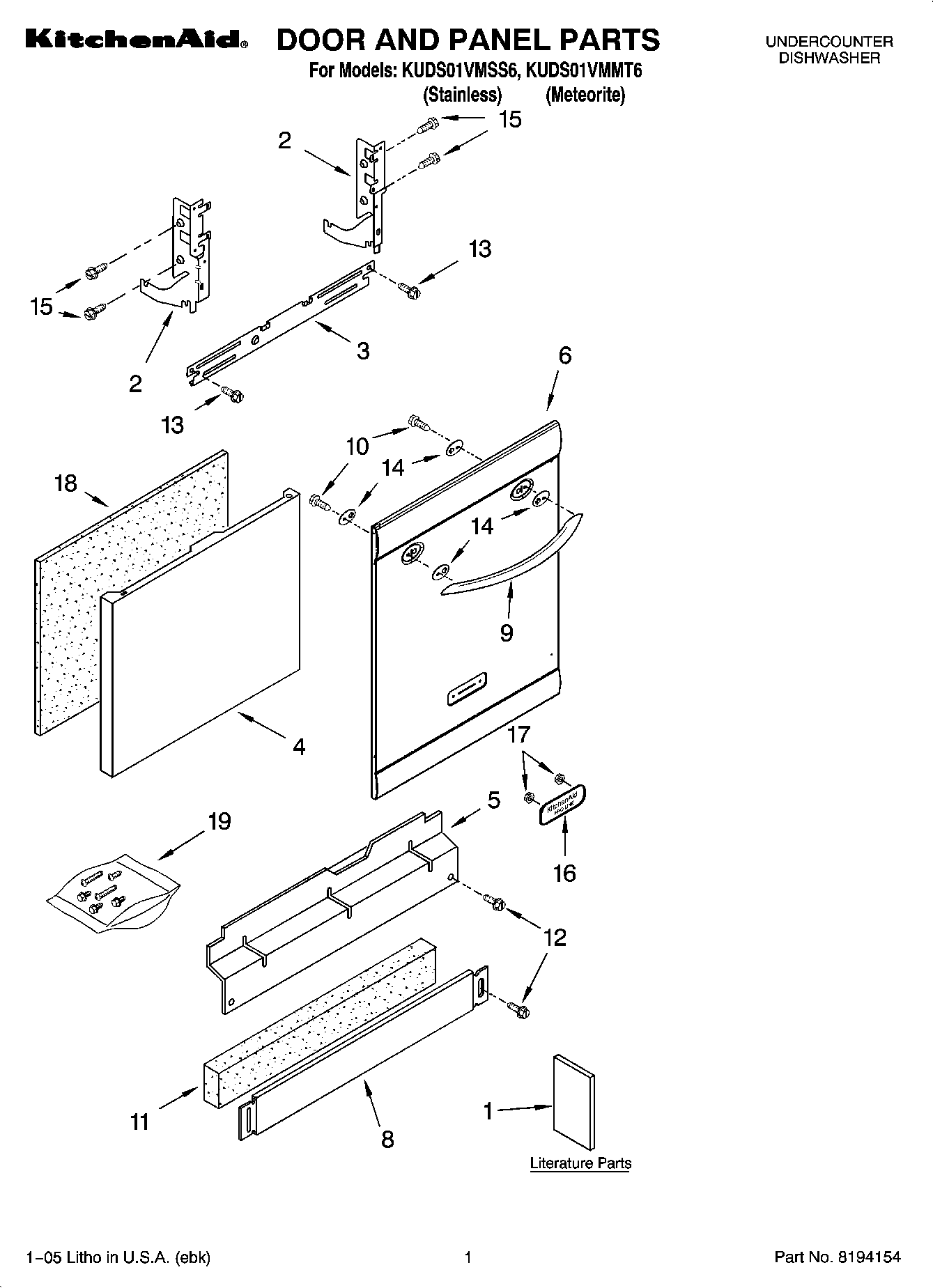

KUDS01VMSS6 01 – DOOR AND PANEL PARTSadmin2025-04-26T12:43:51+00:00KUDS01VMSS6 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | English/French |
| 1 | Guide, Use & Care DVD Tech Sheet |
| 1 | Instructions, Installation |
| 1 | Energy Guide |
| 1 | Guide, Use & Care |
| 2 | W11612303 Whirlpool Door Hinge |
| 2 | W11612302 Whirlpool Dishwasher Door Hinge |
| 3 | Stiffener, Door |
| 4 | W11113792 Whirlpool Dishwasher Panel |
| 6 | Panel, Full Front (Includes Items 14, 16, & 17) (Meteorite) |
| 6 | Panel, Full Front (Includes Items 14, 16, & 17) (Stainless) |
| 8 | W10909064 Whirlpool Dishwasher Black Access Panel |
| 9 | Handle |
| 10 | Screw |
| 11 | SHIELD |
| 12 | WP302868 Whirlpool Screw |
| 13 | WP489069 Whirlpool Compactor Screw |
| 14 | Plate, Backing (Rear) |
| 14 | Plate, Backing (Front) |
| 15 | WP3400071 Whirlpool Screw |
| 16 | Nameplate |
| 17 | WP2004333 Whirlpool Refrigerator Nut |
| 18 | Insulation, Door |
| 19 | Screws, Bag Door Assembly |
