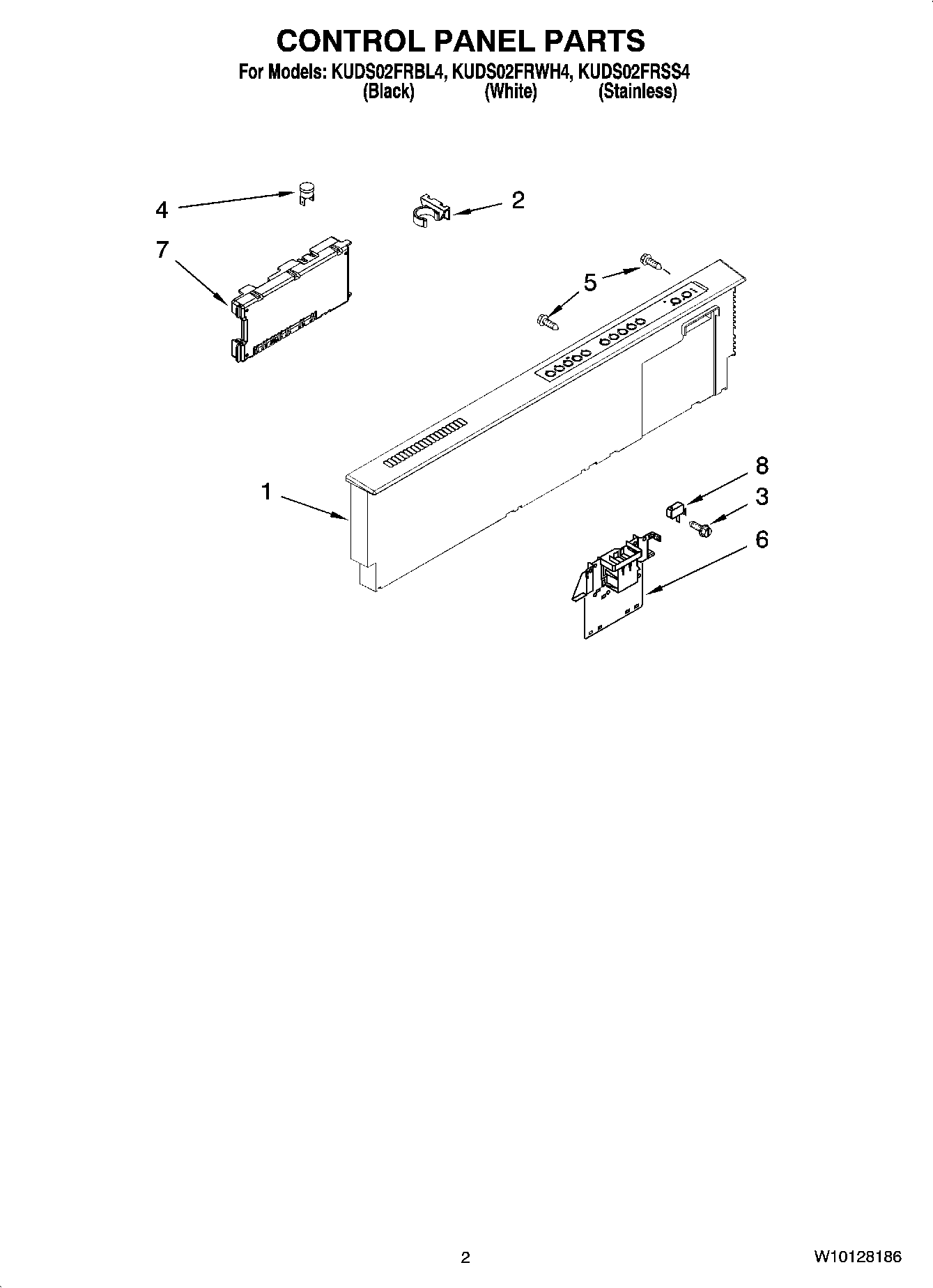

KUDS02FRBL4 02 – CONTROL PANEL PARTS

KUDS02FRBL4 02 – CONTROL PANEL PARTS

Written by

in

KUDS02FRBL4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Stainless)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Black)
2Clip, BI-Metal
3WP3400412 Whirlpool Dishwasher Screw
4W10258275 Whirlpool Dishwasher Bimetal Fuse
5WPW10348409 Whirlpool Screw
68193830 Whirlpool Dishwasher Door Latch Switch Kit
7WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
8WP8269209 Whirlpool Door Switch
