KUDS02FSPA3 01 – DOOR AND PANEL PARTS

KUDS02FSPA3 01 – DOOR AND PANEL PARTS

Written by

in

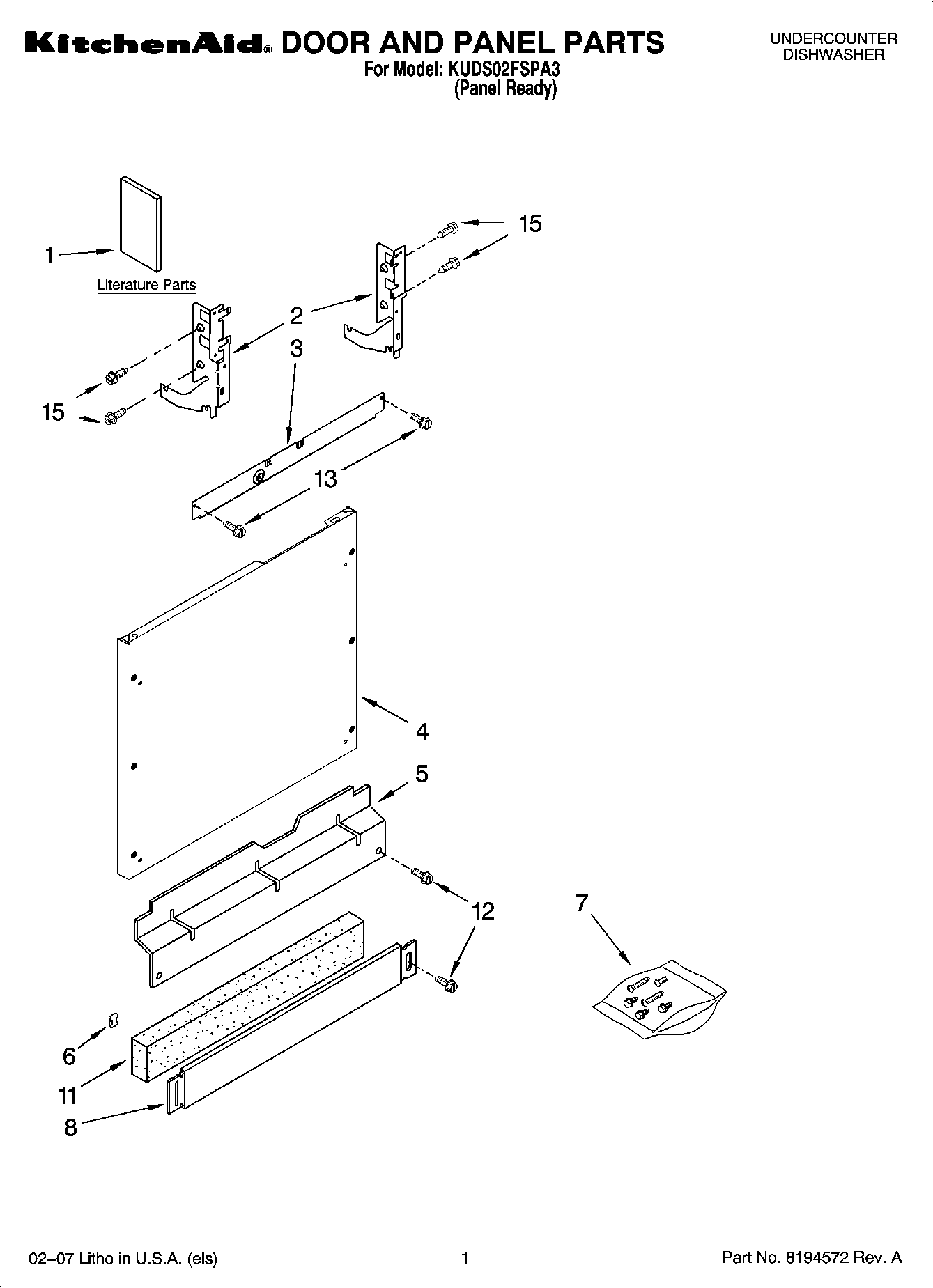

KUDS02FSPA3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1DVD, Use & Care
1Instructions, Installation
1Guide, Consumer Reference
1Tech Sheet
1Guide, Use & Care
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
6WP8269016 Whirlpool Clip Assembly
7Screws, Bag Door Assembly
8W10909064 Whirlpool Dishwasher Black Access Panel
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
