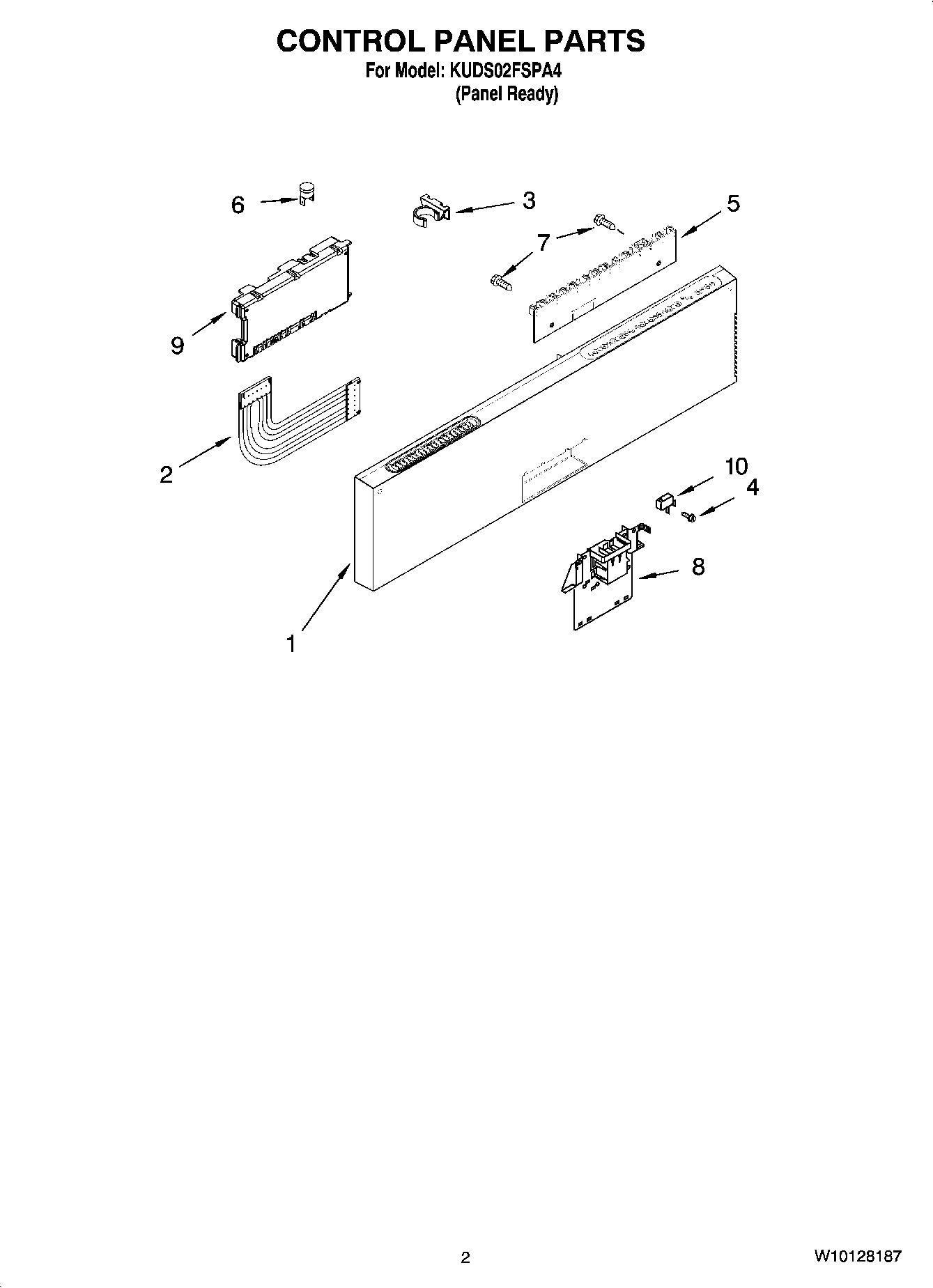

KUDS02FSPA4 02 – CONTROL PANEL PARTS

KUDS02FSPA4 02 – CONTROL PANEL PARTS

Written by

in

KUDS02FSPA4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert)
2Cable, Ribbon
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
5User Interface
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10348409 Whirlpool Screw
88193830 Whirlpool Dishwasher Door Latch Switch Kit
9WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
10WP8269209 Whirlpool Door Switch
