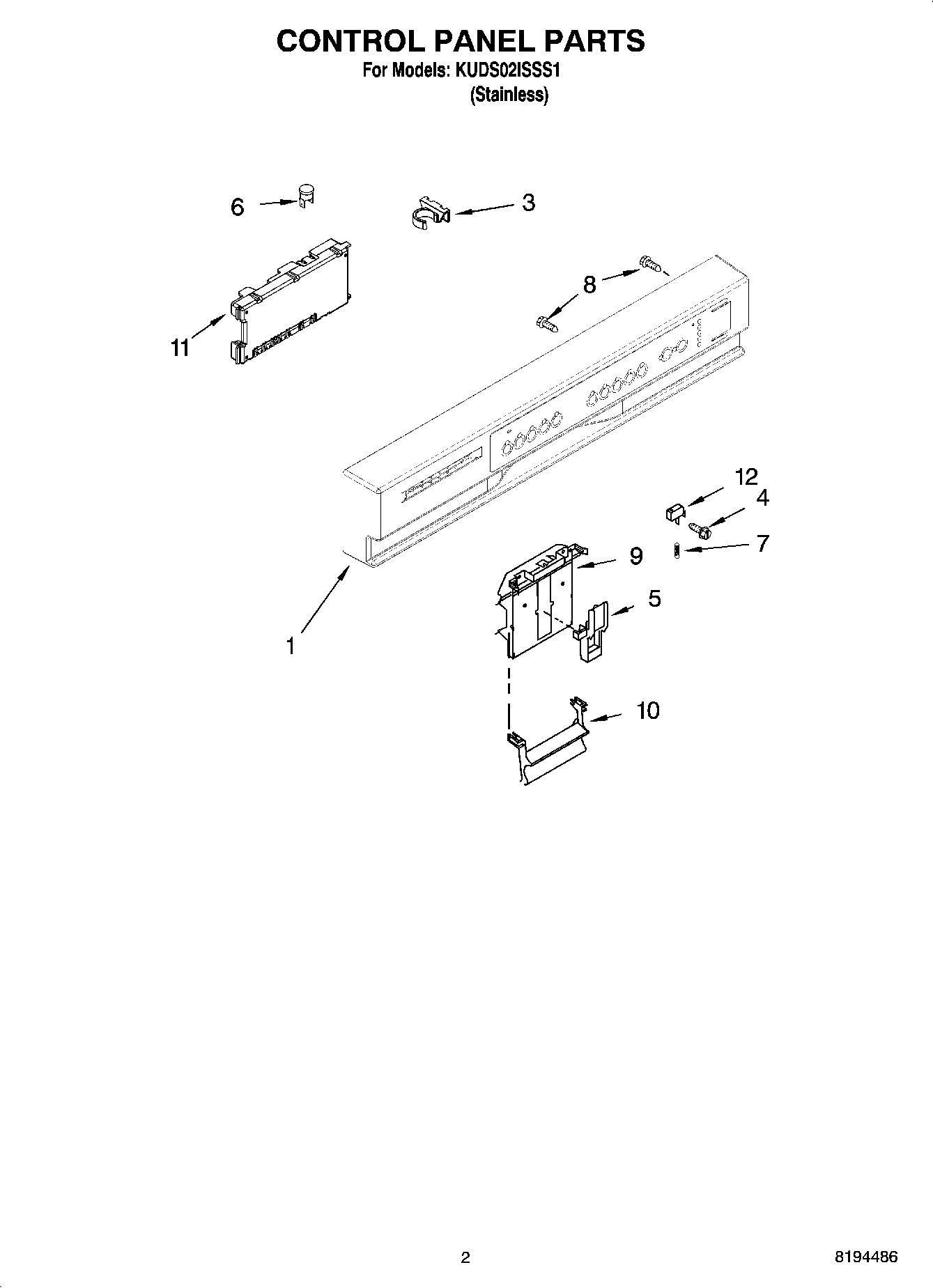

KUDS02ISSS1 02 – CONTROL PANEL PARTS

KUDS02ISSS1 02 – CONTROL PANEL PARTS

Written by

in

KUDS02ISSS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Silver)
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP8268540 Whirlpool Door Handle Spring
8WPW10348409 Whirlpool Screw
98193882 Whirlpool Dishwasher Primary Latch Bolt
10WP8269117 Whirlpool Dishwasher Handle
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
