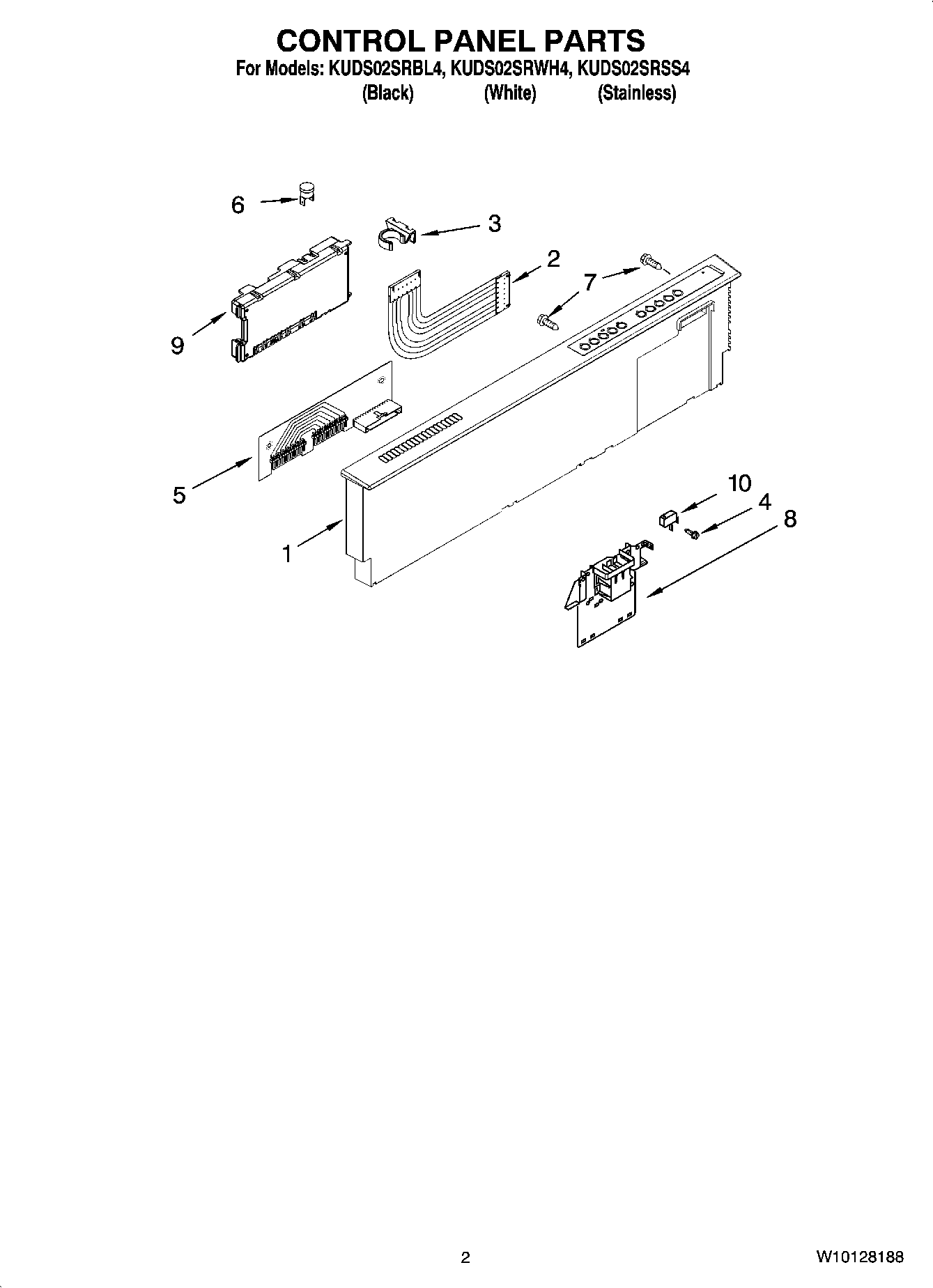

KUDS02SRWH4 02 – CONTROL PANEL PARTSadmin2025-04-26T12:42:21+00:00KUDS02SRWH4 02 – CONTROL PANEL PARTS ProductsPositionProduct1Console Assembly (Includes Insert) (Stainless)1Console Assembly (Includes Insert) (White)1Console Assembly (Includes Insert) (Black)2CABLE-RIBBON3Clip, BI-Metal4WP3400412 Whirlpool Dishwasher Screw5WP8531873 Whirlpool Dishwasher Control Board6W10258275 Whirlpool Dishwasher Bimetal Fuse7WPW10348409 Whirlpool Screw88193830 Whirlpool Dishwasher Door Latch Switch Kit9WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board10WP8269209 Whirlpool Door Switch
