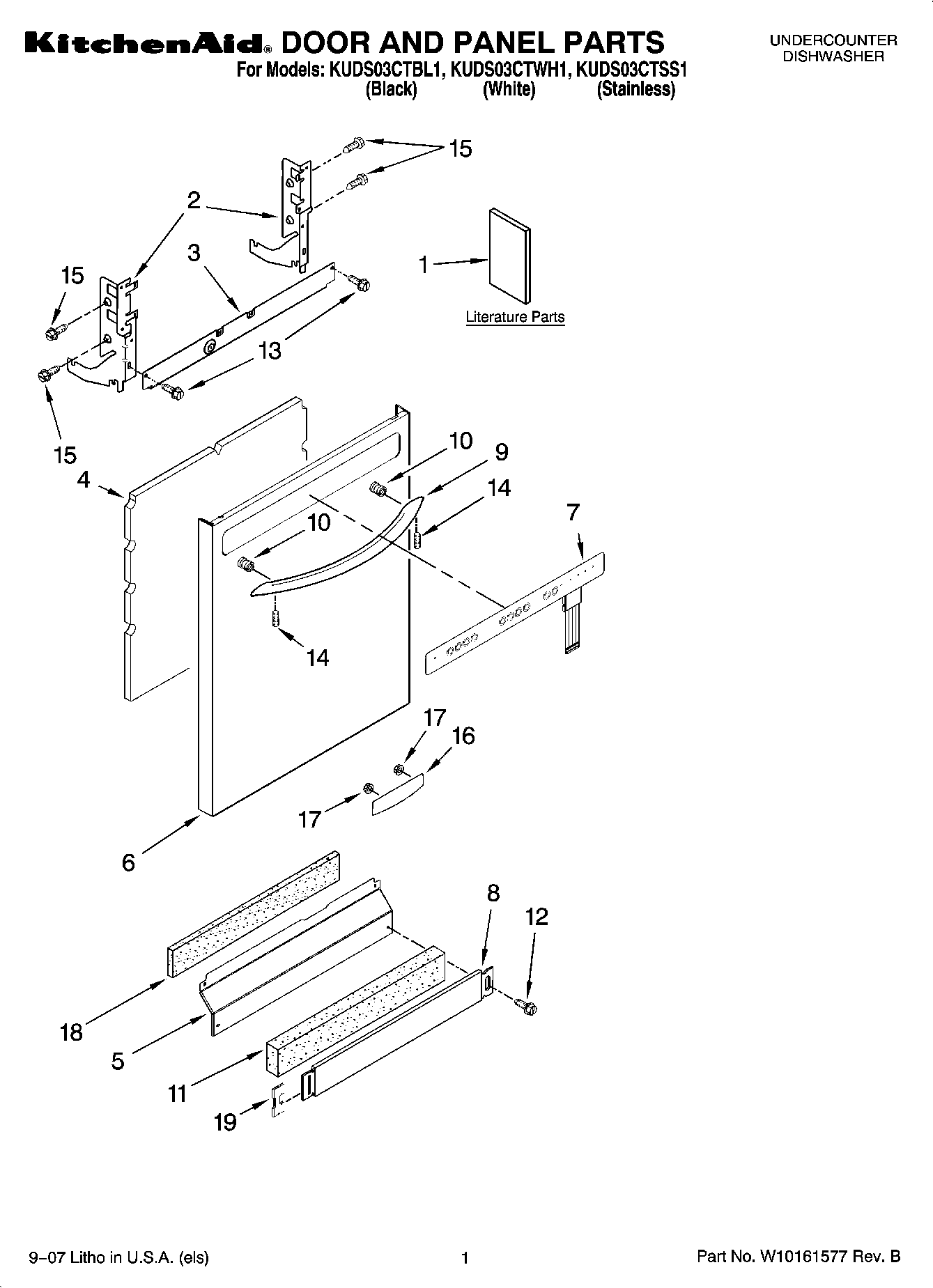

KUDS03CTSS1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Consumer Instructions, English/French Reference
1	Instructions, Installation
1	Tech Sheet
1	Energy Guide
1	D/W User Instructions, Spanish
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	W10909066 Whirlpool Dishwasher Panel
5	PANEL
6	Panel Front (Includes Items 6, 9, 10 & 11) (Black)
6	Panel Front (Includes Items 6, 9, 10 & 11) (White)
6	Panel Front (Includes Items 6, 9, 10 & 11) (Stainless)
7	WPW10077797 Whirlpool Dishwasher Overlay
7	Bezel, Console (White)
7	Bezel, Console (Black)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	W10909064 Whirlpool Dishwasher Black Access Panel
9	Handle Assy (Includes Items 7) (White)
9	Handle Assy (Includes Items 7) (Black)
9	W10195738A Whirlpool Stainless Steel Door Handle
10	WP8564951 Whirlpool Dishwasher Stud
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
14	WP8534008 Whirlpool Screw
15	WP3400071 Whirlpool Screw
16	W10021850 Whirlpool Dishwasher Nameplate
16	W10021860 Whirlpool Dishwasher Nameplate
16	W10021870 Whirlpool Nameplate
17	WP2004333 Whirlpool Refrigerator Nut
18	SHIELD
19	WP8269016 Whirlpool Clip Assembly
