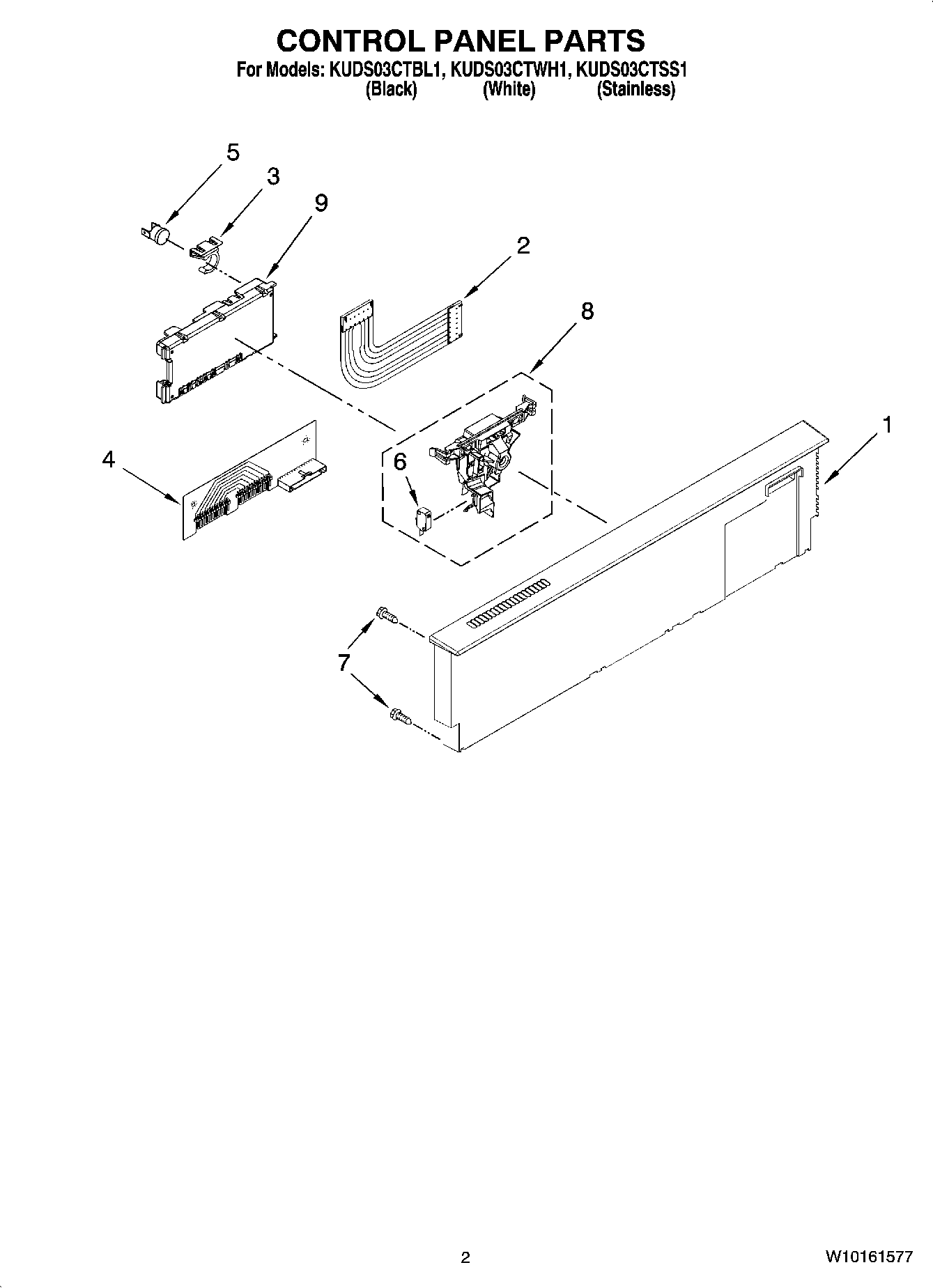

KUDS03CTWH1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Assembly (White)
1	Console Assembly (Stainless)
1	WP8572354 Whirlpool Dishwasher Console
2	CABLE-RIBBON
3	Clip, BI-Metal
4	WP8531873 Whirlpool Dishwasher Control Board
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WPW10134019 Whirlpool Dishwasher Switch
7	WPW10348409 Whirlpool Screw
8	WPW10404412 Whirlpool Door Latch
9	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
