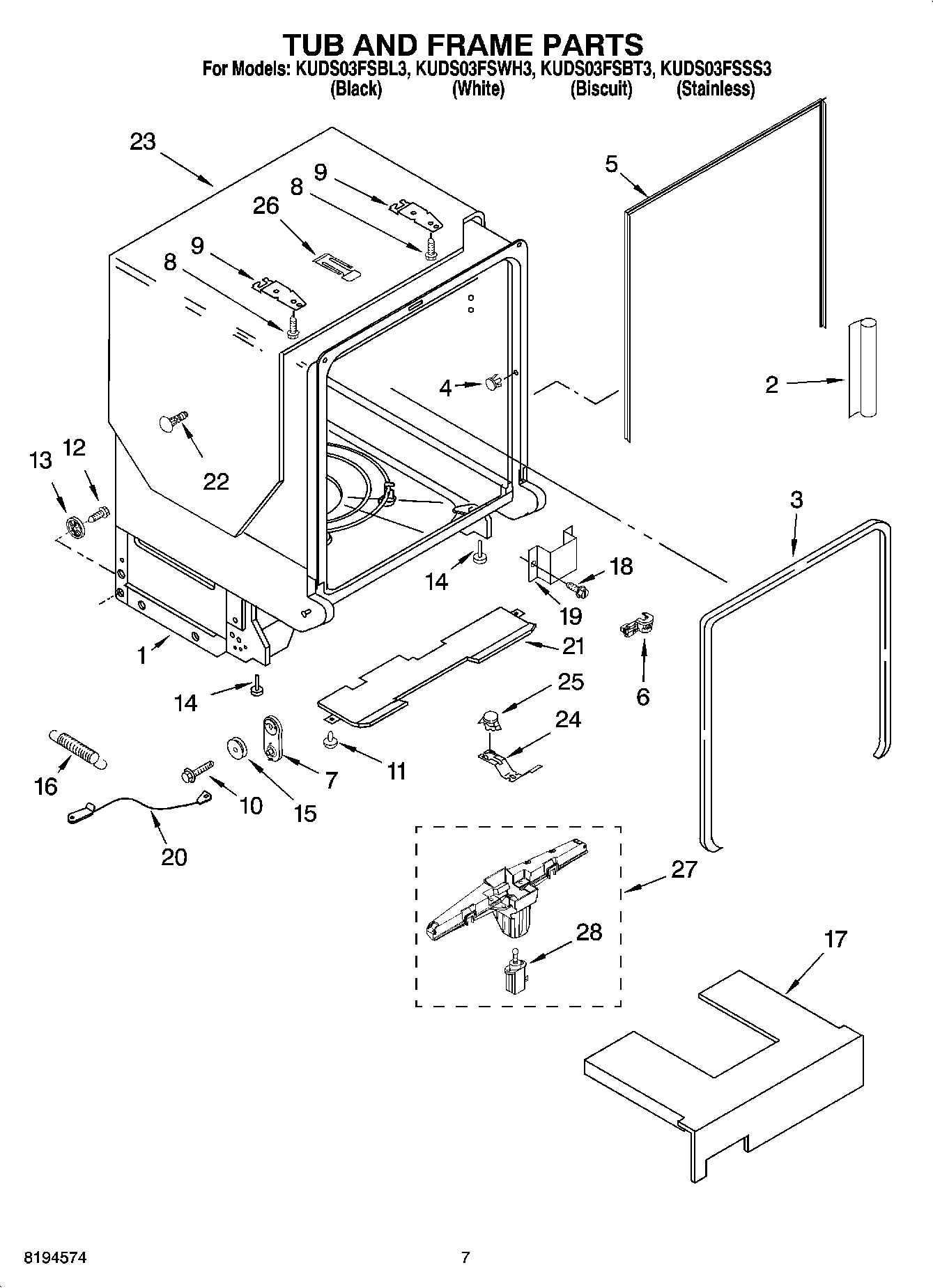

KUDS03FSBT3 07 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly
2	Barrier, Moisture Undercounter
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	SEAL
6	W11384788 Whirlpool Dishwasher Relief Strainer
7	8194001 Whirlpool Dishwasher Door Balance Link Kit
8	WP308685 Whirlpool Microwave Screw
9	WP8269145 Whirlpool Dishwasher Mounting Bracket
10	WP3400074 Whirlpool Dishwasher Screw
11	WP3400924 Whirlpool Dishwasher Retainer
12	Screw (2)
13	WP8268977 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	WP8524474 Whirlpool Dishwasher Wheel Assembly
16	SPRING
17	SHIELD
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
21	WPW10746770 Whirlpool Insulation Pad
22	WP304666 Whirlpool Dishwasher Retainer
23	W10877094 Whirlpool Shield
24	9742648 Whirlpool Dishwasher Stat Bracket
25	WP661566 Whirlpool High Limit Thermostat
26	WP8574157 Whirlpool Dishwasher Strike
27	WP8572661 Whirlpool Dishwasher Actuator
28	8559844 Whirlpool Dishwasher Motor Assembly
