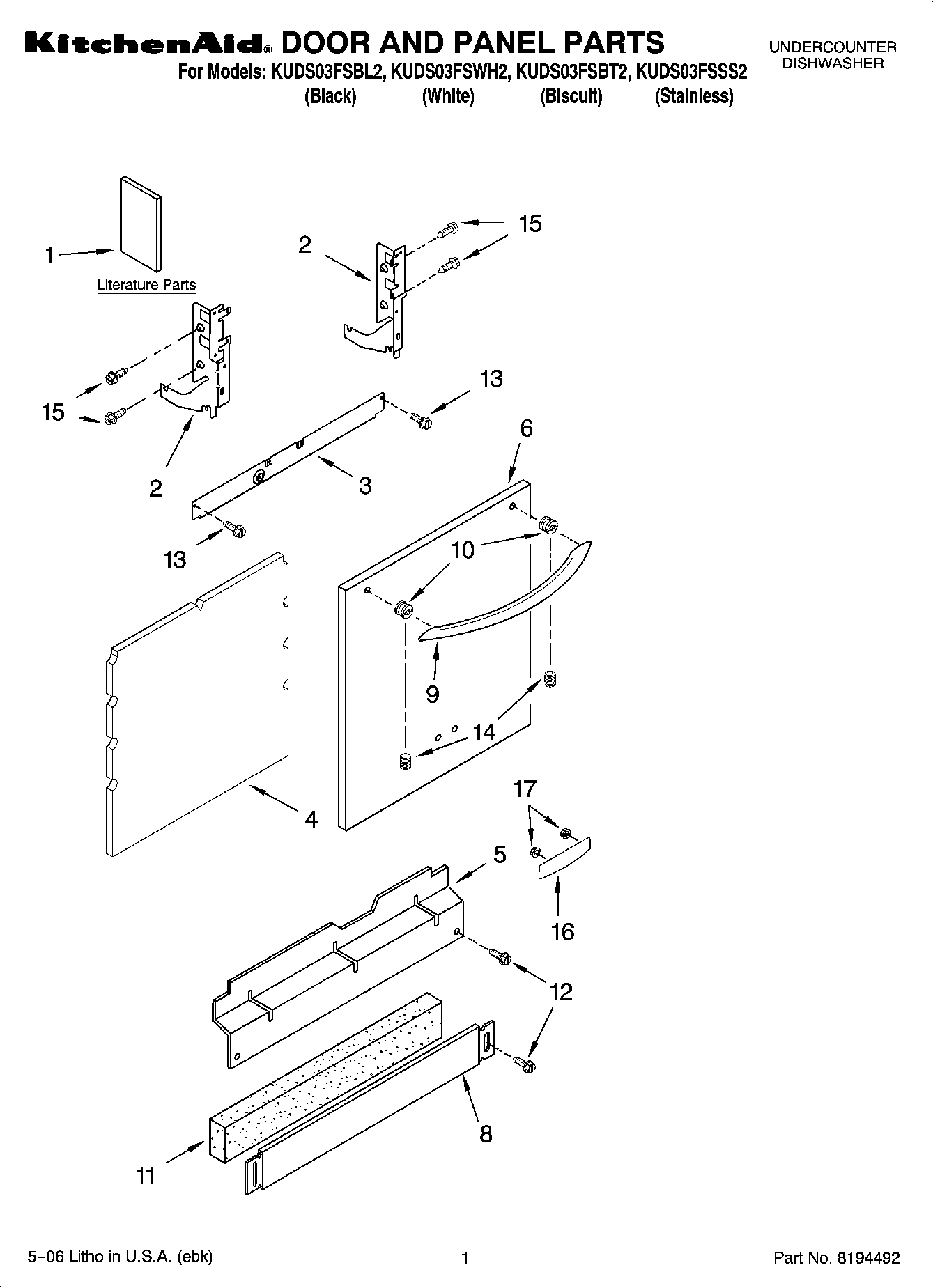

KUDS03FSSS2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Use & Care
1	DVD, Use & Care
1	Instructions, Installation
1	Tech Sheet
1	Guide, Consumer Reference
1	Energy Guide
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	W10871198 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
6	Panel, Full Front (Includes Items 4,10,16 & 17) (Stainless)
6	Panel, Full Front (Includes Items 4,10,16 & 17) (Biscuit)
6	Panel, Full Front (Includes Items 4,10,16 & 17) (White)
6	Panel, Full Front (Includes Items 4,10,16 & 17) (Black)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	W10909064 Whirlpool Dishwasher Black Access Panel
8	Toe Panel (Includes Items 7 & 11) (Biscuit)
9	Handle (Black)
9	W10195738A Whirlpool Stainless Steel Door Handle
9	Handle (White)
9	Handle (Biscuit)
10	WP8564951 Whirlpool Dishwasher Stud
11	SHIELD
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	WP8534008 Whirlpool Screw
15	WP3400071 Whirlpool Screw
16	Nameplate (Biscuit)
16	W10021870 Whirlpool Nameplate
16	W10021860 Whirlpool Dishwasher Nameplate
16	W10021850 Whirlpool Dishwasher Nameplate
17	WP2004333 Whirlpool Refrigerator Nut
