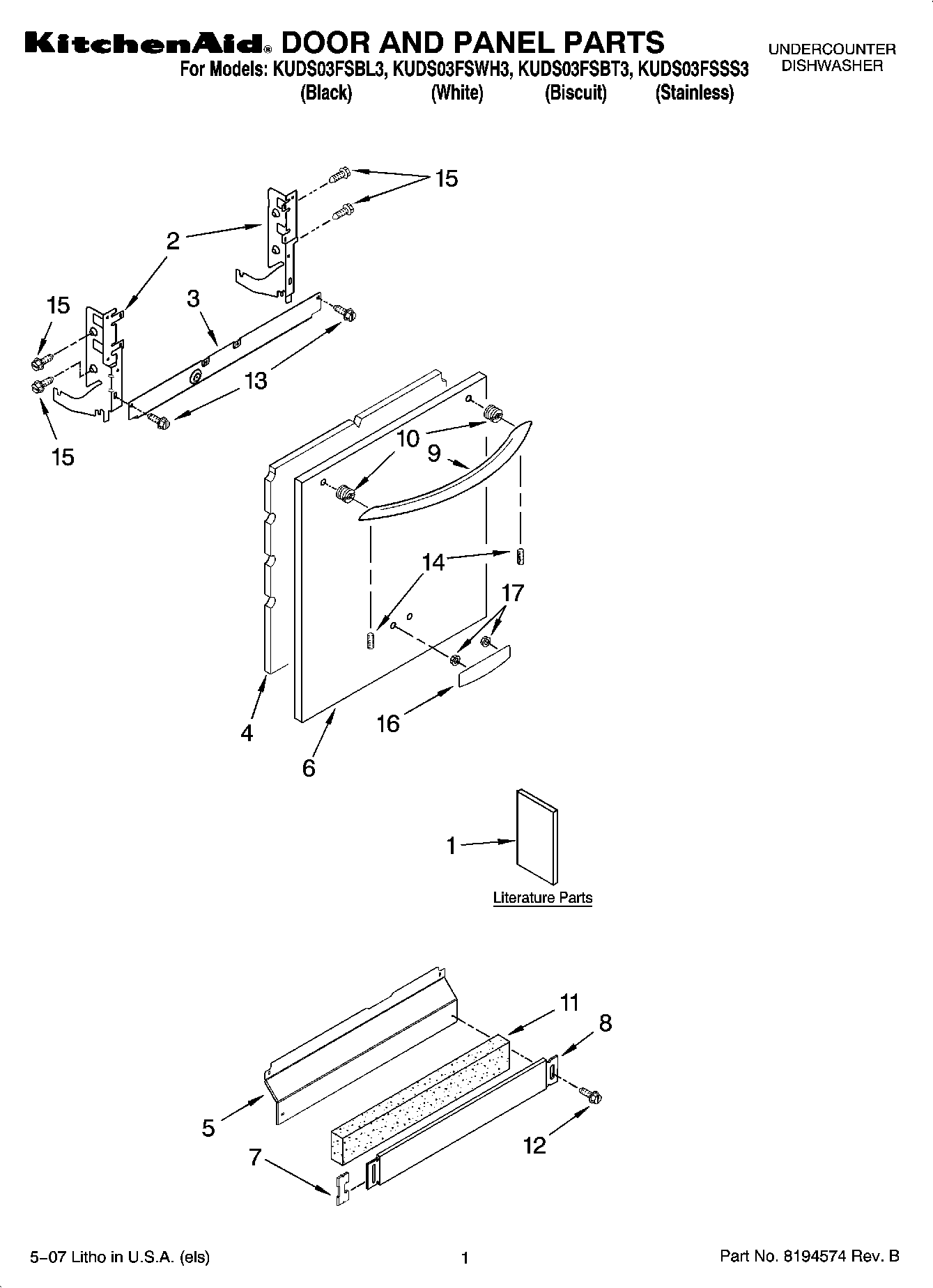

KUDS03FSSS3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Consumer Reference
1	Tech Sheet
1	Energy Guide
1	Guide, Use & Care
1	Instructions, Installation
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	W10871198 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
6	Panel, Full Front (Includes Items 4,10,16 & 17) (Black)
6	Panel, Full Front (Includes Items 4,10,16 & 17) (White)
6	Panel, Full Front (Includes Items 4,10,16 & 17) (Stainless)
6	Panel, Full Front (Includes Items 4,10,16 & 17) (Biscuit)
7	WP8269016 Whirlpool Clip Assembly
8	Toe Panel (Includes Items 7 & 11) (Biscuit)
8	W10909064 Whirlpool Dishwasher Black Access Panel
8	WPW10586591 Whirlpool Dishwasher Toe Panel
9	Handle (Includes Item 14) (Biscuit)
9	Handle Assy (Includes Items 7) (White)
9	Handle Assy (Includes Items 7) (Black)
9	W10195738A Whirlpool Stainless Steel Door Handle
10	WP8564951 Whirlpool Dishwasher Stud
11	SHIELD
12	WPW10503550 Whirlpool Dishwasher Retainer
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	WP8534008 Whirlpool Screw
15	WP3400071 Whirlpool Screw
16	Nameplate (Biscuit)
16	W10021870 Whirlpool Nameplate
16	W10021860 Whirlpool Dishwasher Nameplate
16	W10021850 Whirlpool Dishwasher Nameplate
17	WP2004333 Whirlpool Refrigerator Nut
