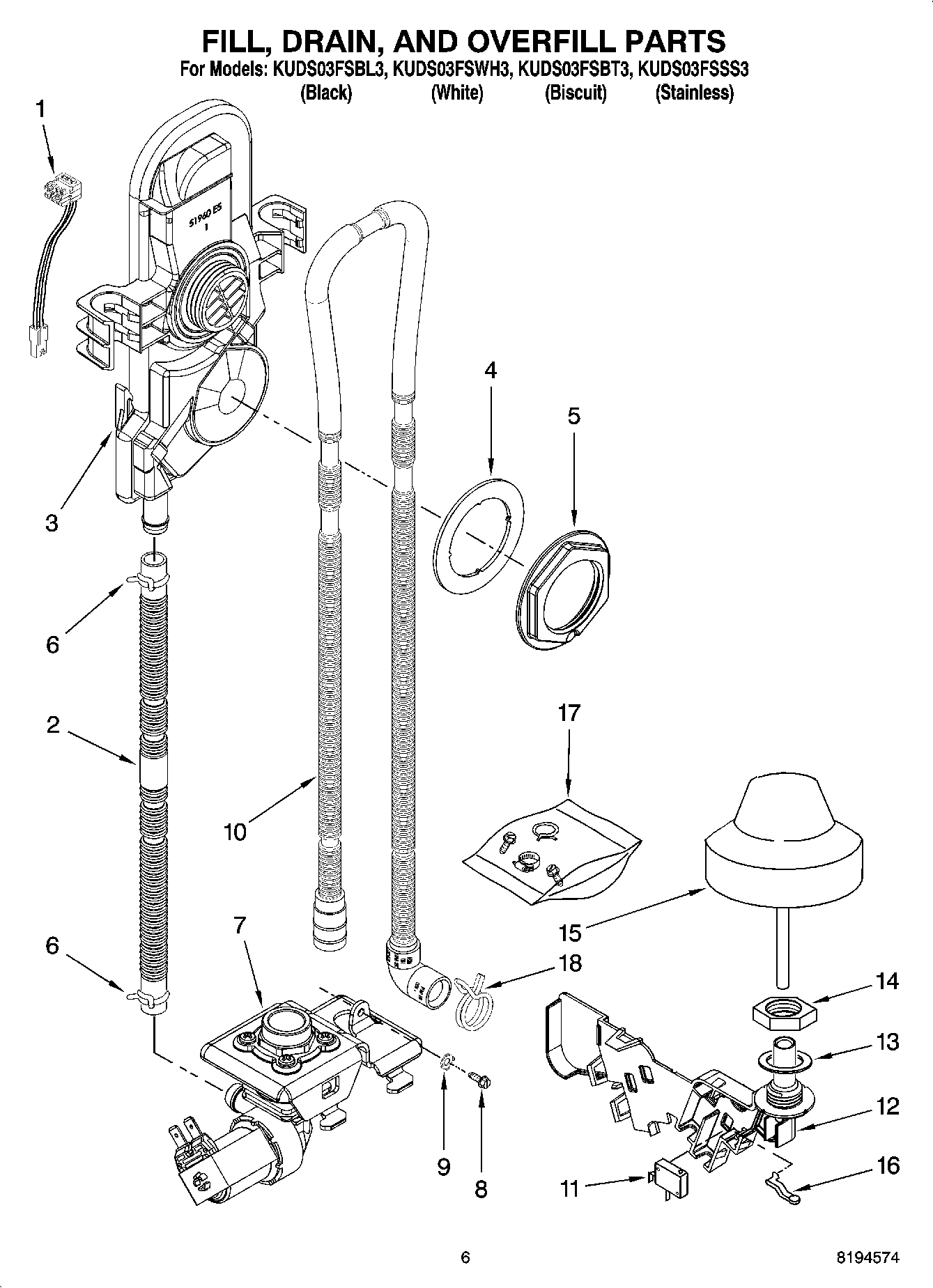

KUDS03FSSS3 06 – FILL, DRAIN, AND OVERFILL PARTS

KUDS03FSSS3 06 – FILL, DRAIN, AND OVERFILL PARTS

Written by

in

KUDS03FSSS3 06 – FILL, DRAIN, AND OVERFILL PARTS

Products

PositionProduct
1Wire, Jumper
2WPW10041920 Whirlpool Dishwasher Fill Hose
3Water Inlet (Also Order Item 4)
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP3400014 Whirlpool Dishwasher Screw
9WP3378128 Whirlpool Dishwasher Washer
10WPW10358302 Whirlpool Dishwasher Drain Hose
11WP8268909 Whirlpool Dishwasher Switch
128193506 Whirlpool Dishwasher Switch
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14WP9741998 Whirlpool Dishwasher Nut
15WP8268895 Whirlpool Dishwasher Float Assembly
16WP8268892 Whirlpool Dishwasher Lever
17WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
18WP356138 Whirlpool Hose Clamp
