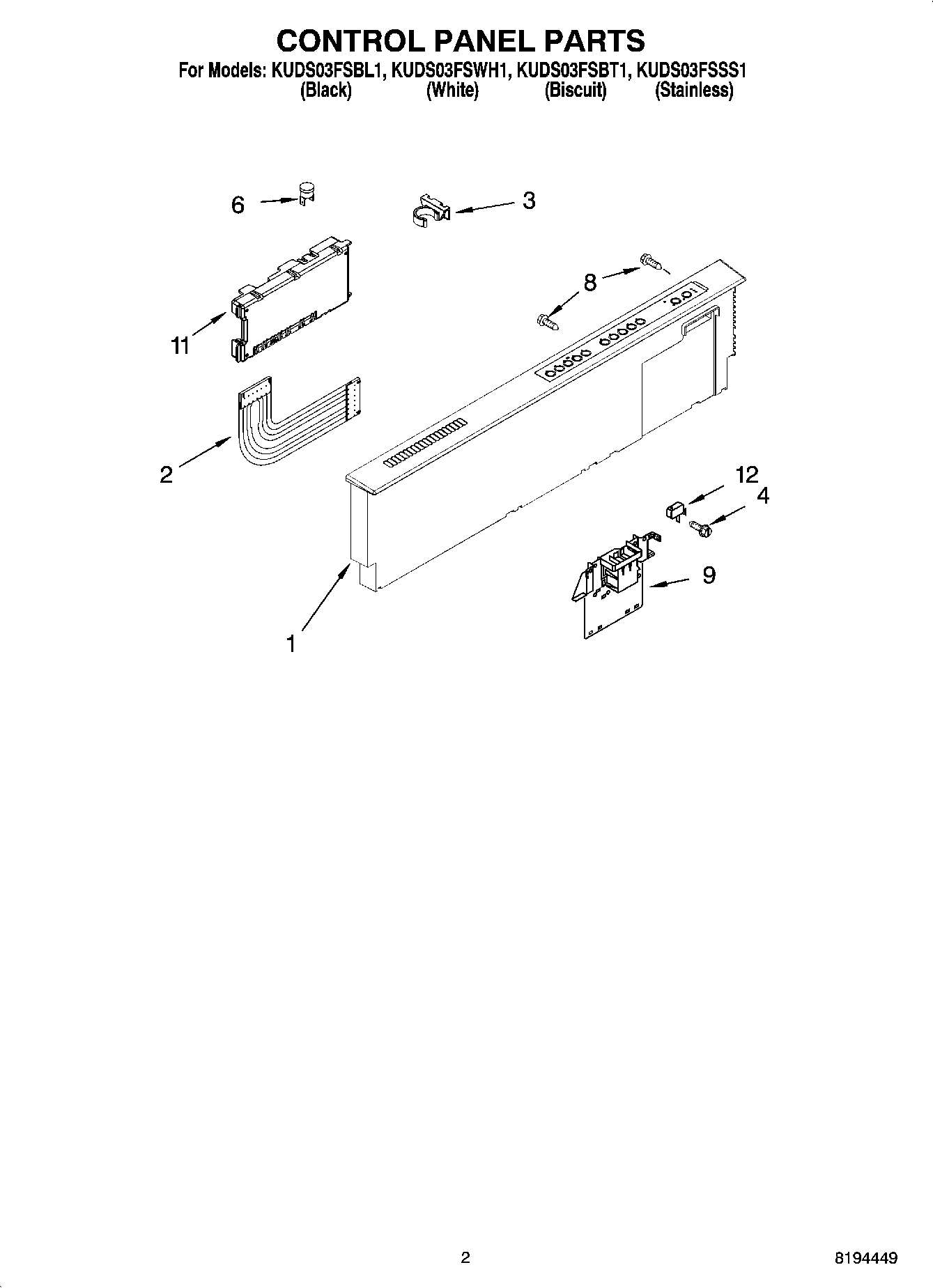

KUDS03FSWH1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Assembly (Includes Insert) (Biscuit)
1	Console Assembly (Includes Insert) (Stainless)
1	Console Assembly (Includes Insert) (White)
1	Console Assembly (Includes Insert) (Black)
2	W10850507 Whirlpool Dishwasher Ribbon Cable
3	Clip, BI-Metal
4	WP3400412 Whirlpool Dishwasher Screw
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
8	WPW10348409 Whirlpool Screw
9	8193830 Whirlpool Dishwasher Door Latch Switch Kit
11	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12	WP8269209 Whirlpool Door Switch
