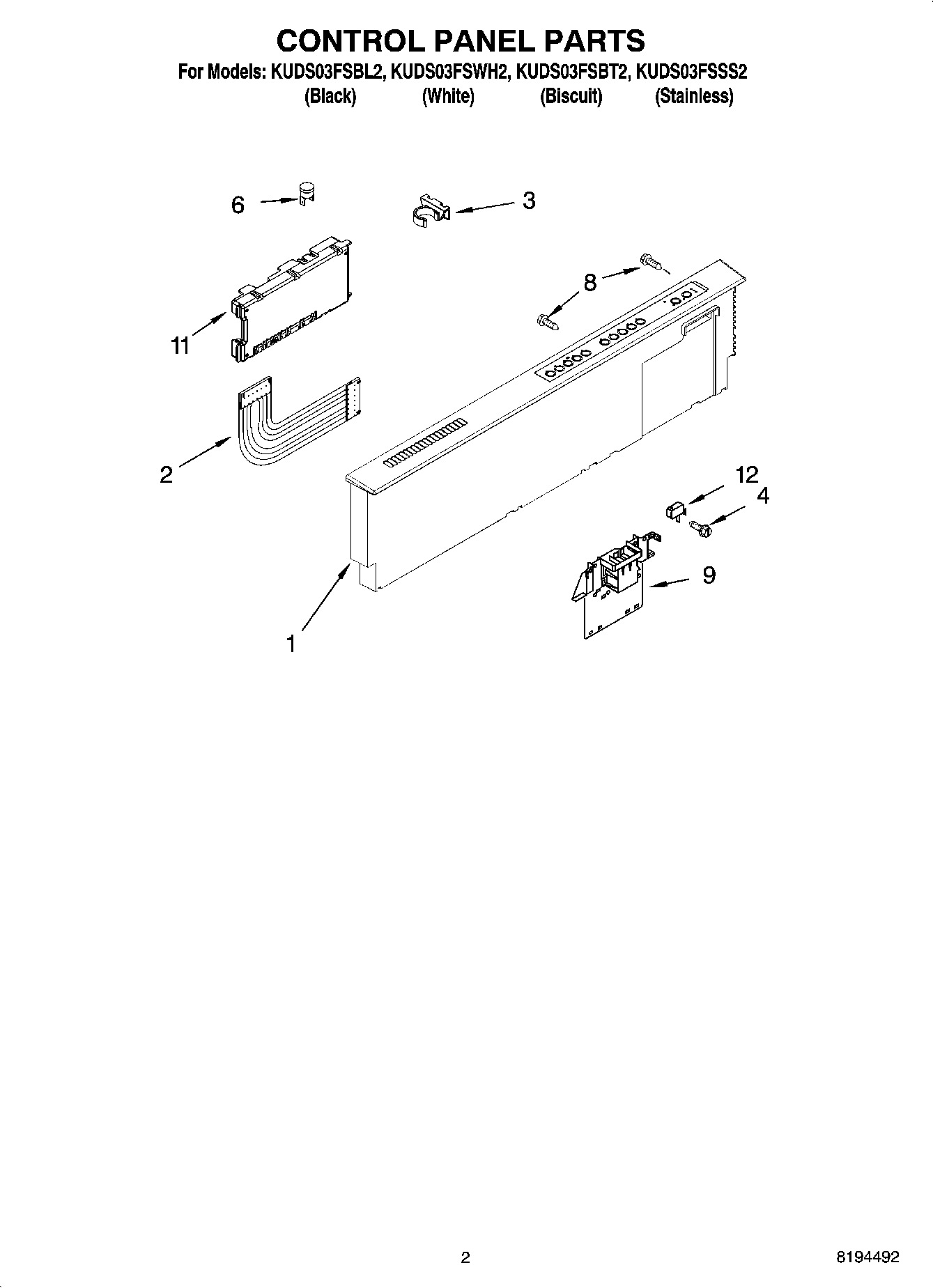

KUDS03FSWH2 02 – CONTROL PANEL PARTS

KUDS03FSWH2 02 – CONTROL PANEL PARTS

Written by

in

KUDS03FSWH2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Biscuit)
1Console Assembly (Includes Insert) (Stainless)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Black)
2W10850507 Whirlpool Dishwasher Ribbon Cable
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
6W10258275 Whirlpool Dishwasher Bimetal Fuse
8WPW10348409 Whirlpool Screw
98193830 Whirlpool Dishwasher Door Latch Switch Kit
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
