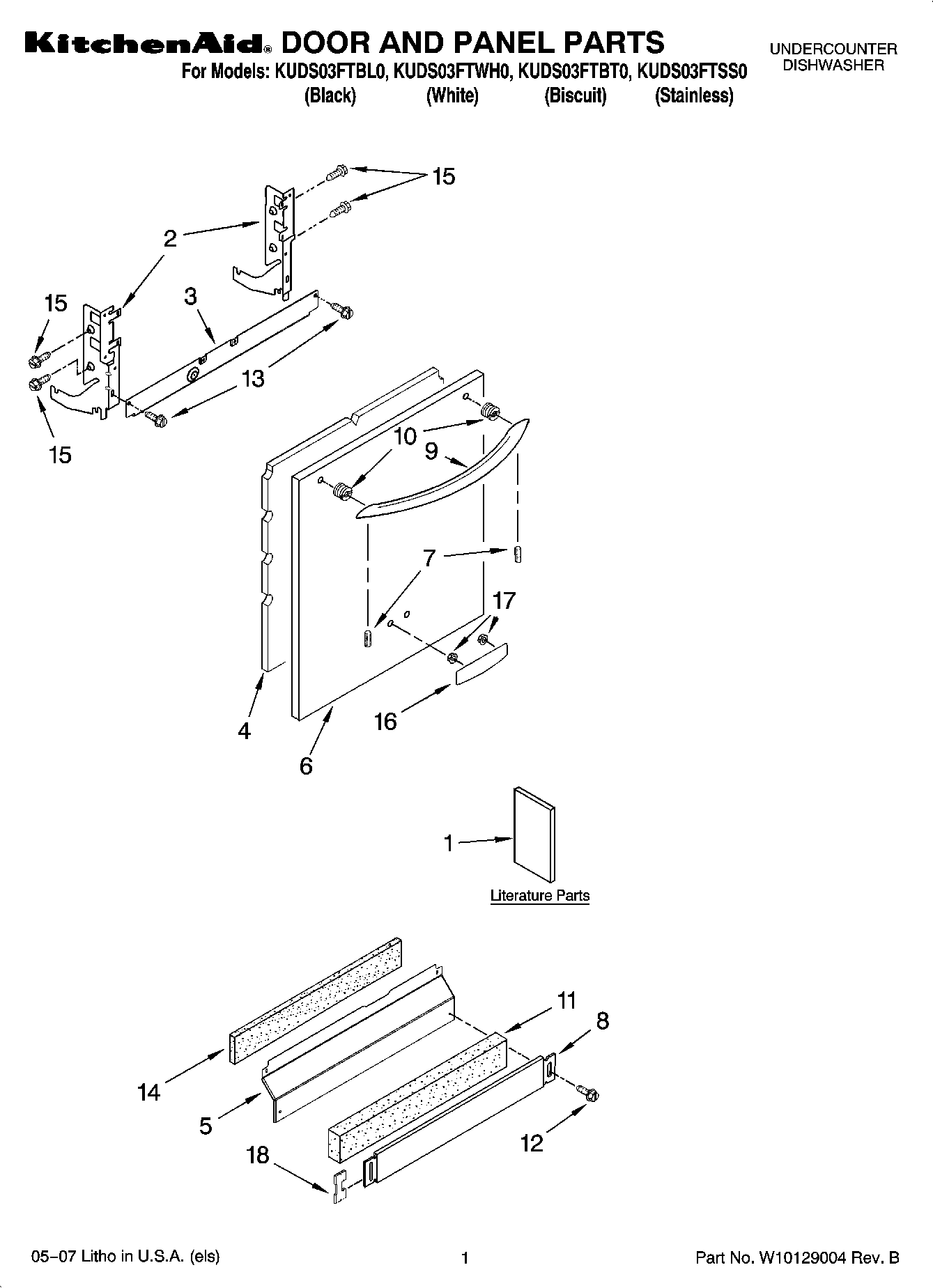

KUDS03FTBL0 01 – DOOR AND PANEL PARTS

KUDS03FTBL0 01 – DOOR AND PANEL PARTS

Written by

in

KUDS03FTBL0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1Tech Sheet
1Energy Guide
1Guide, Consumer Reference
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
5PANEL
5W10871198 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Biscuit)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Stainless)
7WP8534008 Whirlpool Screw
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
8Toe Panel (Includes Items 7 & 11) (Biscuit)
9Handle Assy (Includes Items 7) (White)
9Handle (Includes Item 14) (Biscuit)
9Handle Assy (Includes Items 7) (Black)
9W10195738A Whirlpool Stainless Steel Door Handle
10WP8564951 Whirlpool Dishwasher Stud
12WPW10503550 Whirlpool Dishwasher Retainer
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14SHIELD
15WP3400071 Whirlpool Screw
16Nameplate (Biscuit)
16W10021850 Whirlpool Dishwasher Nameplate
16W10021870 Whirlpool Nameplate
16W10021860 Whirlpool Dishwasher Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18WP8269016 Whirlpool Clip Assembly
