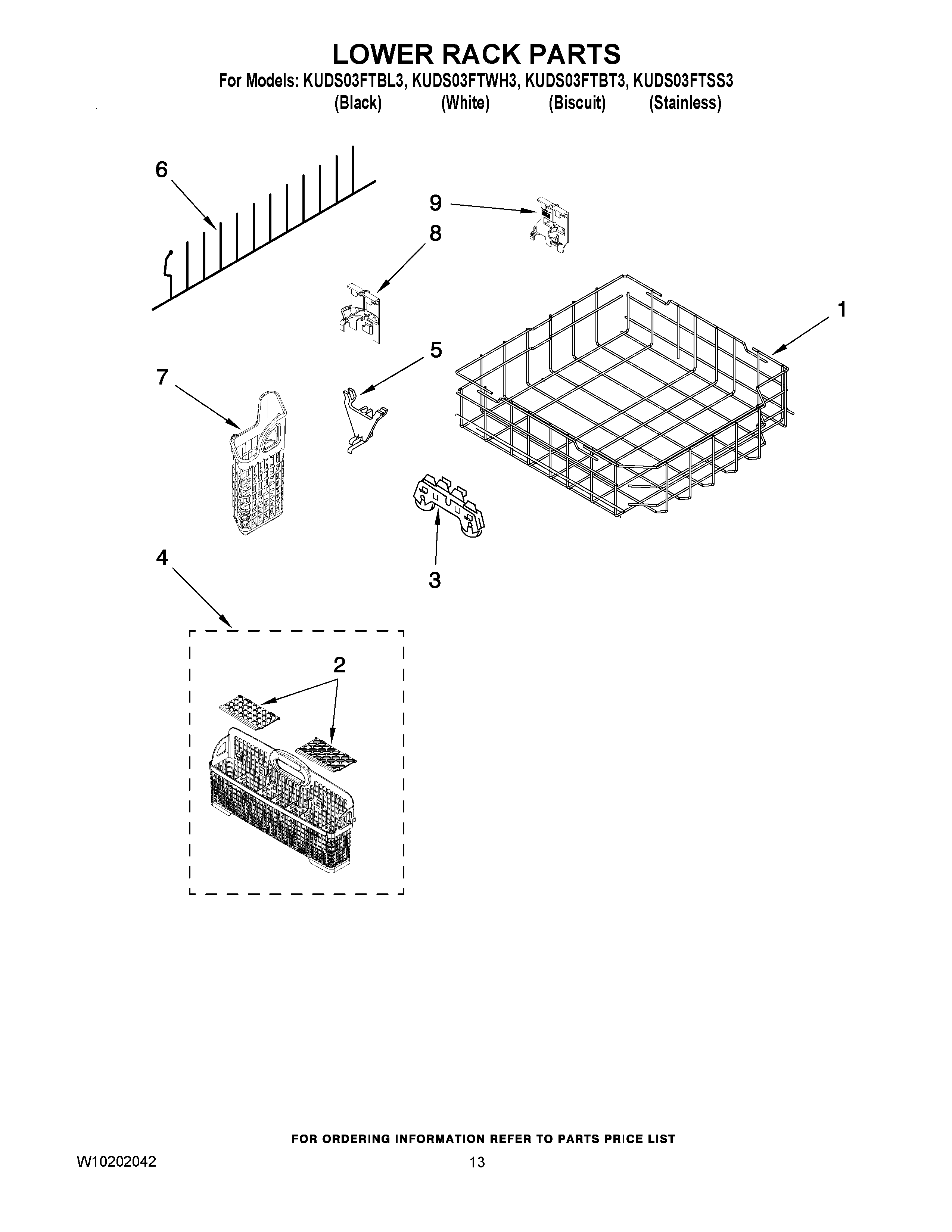

KUDS03FTBL3 10 – LOWER RACK PARTS

KUDS03FTBL3 10 – LOWER RACK PARTS

Written by

in

KUDS03FTBL3 10 – LOWER RACK PARTS

Products

PositionProduct
1W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
28519663 Whirlpool Dishwasher Cover Assembly
28519695 Whirlpool Dishwasher Basket Cover
3WPW10082868 Whirlpool Wheel
4WP8531233 Whirlpool Dishwasher Silverware Basket
5WPW10078227 Whirlpool Dishwasher Pivot Tine
6W10728160 Whirlpool Tine Assembly
7BASKET, UTENSIL
8WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
9WPW10175279 Whirlpool Retainer
