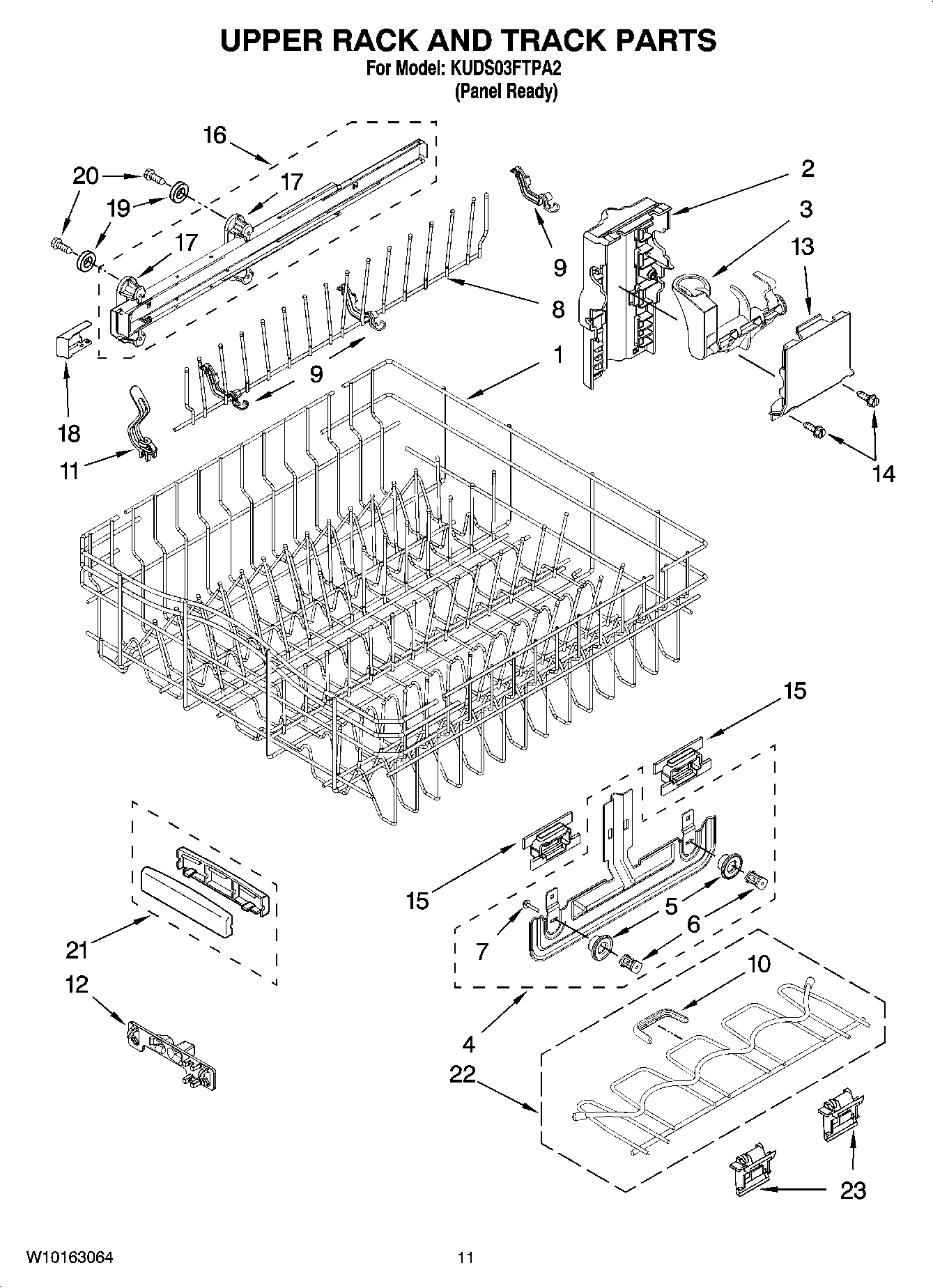

KUDS03FTPA2 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10727422 Whirlpool Dishwasher Dishrack
2	W10728563 Whirlpool Dishwasher Housing
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728567 Whirlpool Dishwasher Adjuster
5	WP8270138 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
10	Indicator, Cupshelf
11	WPW10077844 Whirlpool Dishwasher Clip
12	WP8539102 Whirlpool Dishwasher Positioner
13	W10728561 Whirlpool Dishwasher Cover
14	WP9741232 Whirlpool Dishwasher Screw
15	W10728566 Whirlpool Dishwasher Positioner
16	WPW10247511 Whirlpool Dishwasher Track
16	WPW10247512 Whirlpool Upper Slide Rail Left Side
17	Mount, Track (Also Order Item 18)
18	WP8573954 Whirlpool Dishwasher Stop Assembly
18	WP8573953 Whirlpool Dishwasher Stop Assembly
19	WP9743002 Whirlpool Dishwasher Gasket
20	WPW10348407 Whirlpool Dishwasher Screw
21	Handle, Dishrack
22	W11125975 Whirlpool Dishwasher Cup Shelf
23	8562026 Whirlpool Dishwasher Clip
