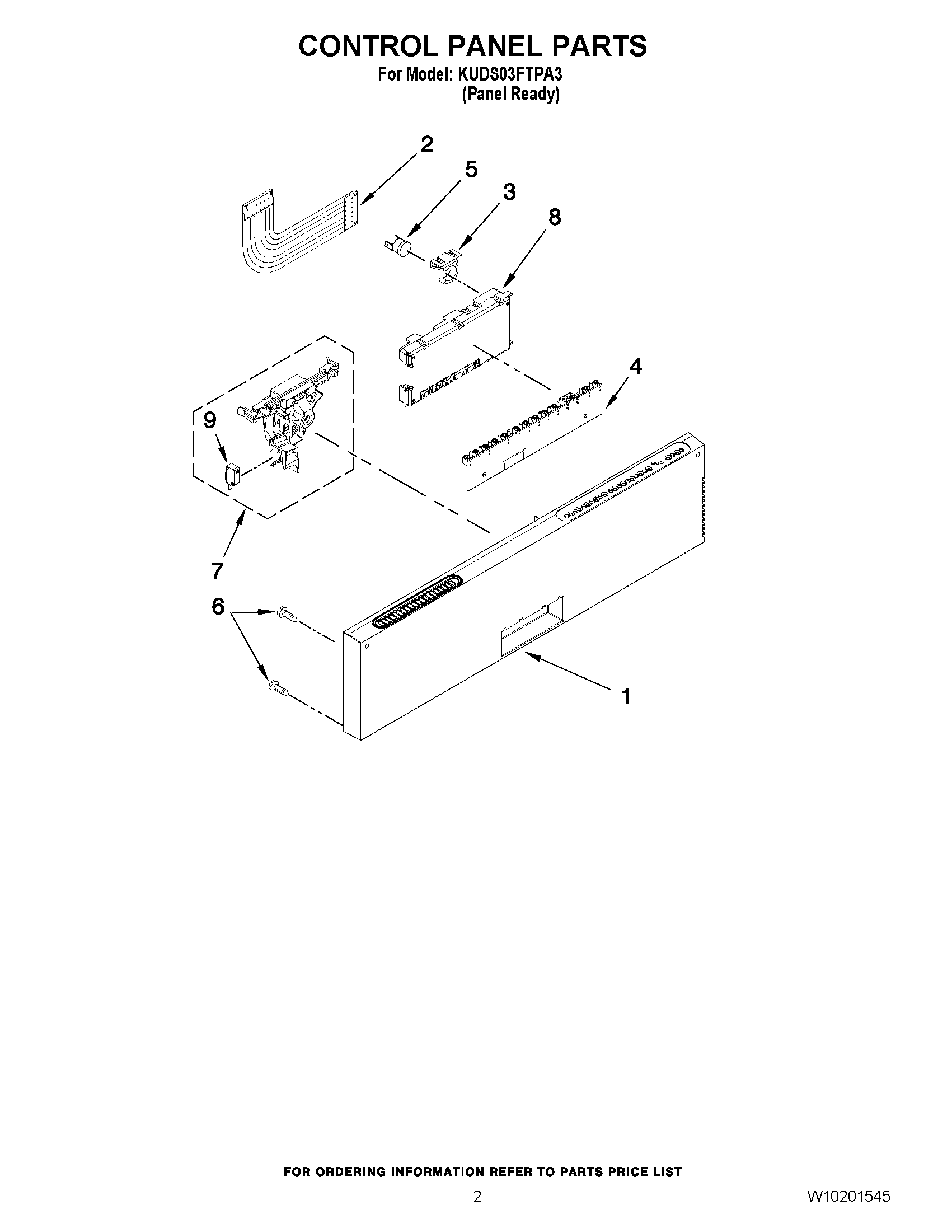

KUDS03FTPA3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Black)
2Cable, Ribbon
3Clip, BI-Metal
4User Interface
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WPW10348409 Whirlpool Screw
7WPW10404412 Whirlpool Door Latch
8WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
9Shield, Switch
