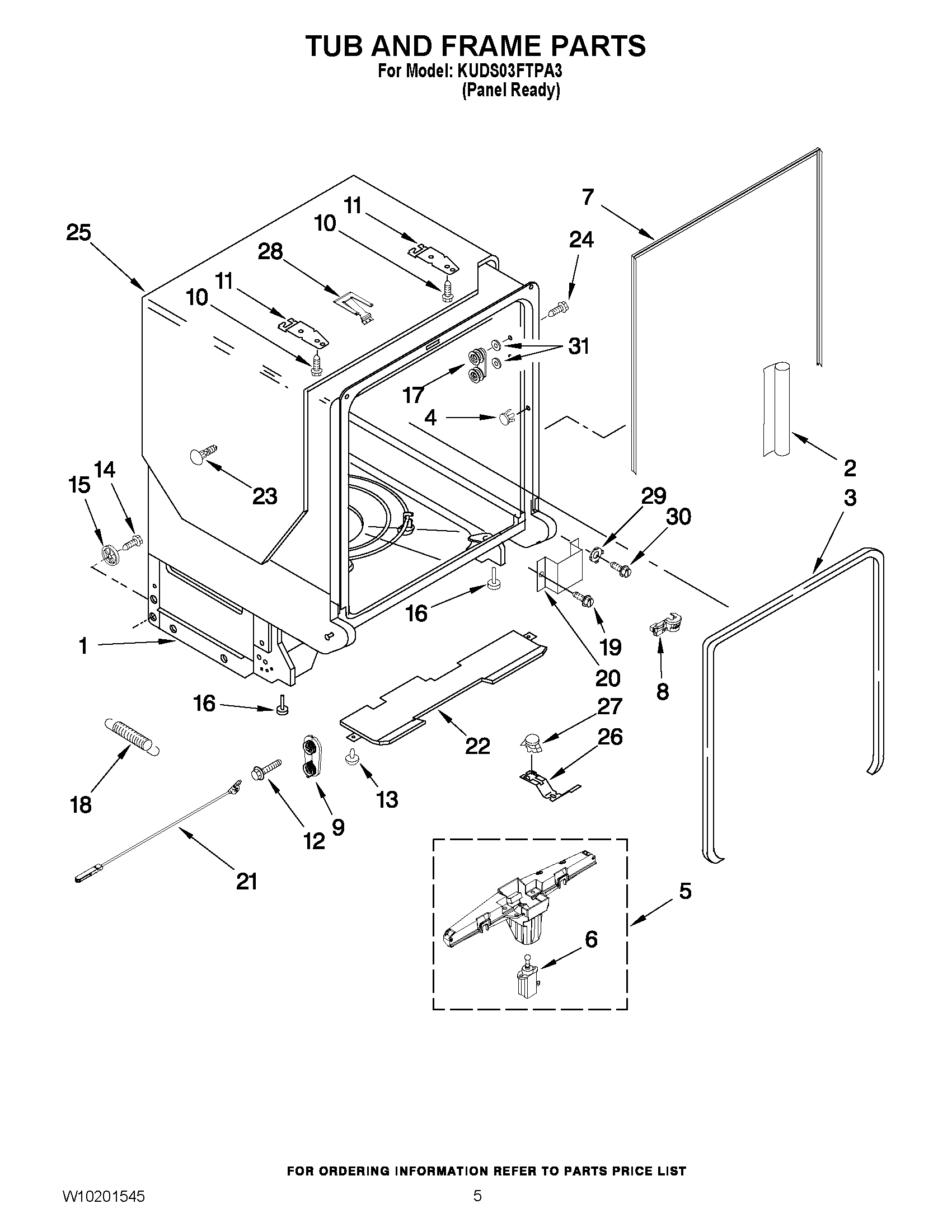

KUDS03FTPA3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly (Also Includes Heater Assembly)
2	Barrier, Moisture Undercounter
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP8572661 Whirlpool Dishwasher Actuator
6	Motor, Wax
7	SEAL
8	W11384788 Whirlpool Dishwasher Relief Strainer
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	WP3400924 Whirlpool Dishwasher Retainer
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WPW10078083 Whirlpool Dishwasher Dishrack Wheel
18	SPRING
19	WP3400892 Whirlpool Dishwasher Screw
20	WP8268991 Whirlpool Dishwasher Cover Assembly
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	WPW10746770 Whirlpool Insulation Pad
23	WP304666 Whirlpool Dishwasher Retainer
24	WPW10348407 Whirlpool Dishwasher Screw
25	W10877094 Whirlpool Shield
26	9742648 Whirlpool Dishwasher Stat Bracket
27	WP661566 Whirlpool High Limit Thermostat
28	Strike, Latch
29	WP3378128 Whirlpool Dishwasher Washer
30	WP3400014 Whirlpool Dishwasher Screw
31	WP9743002 Whirlpool Dishwasher Gasket
