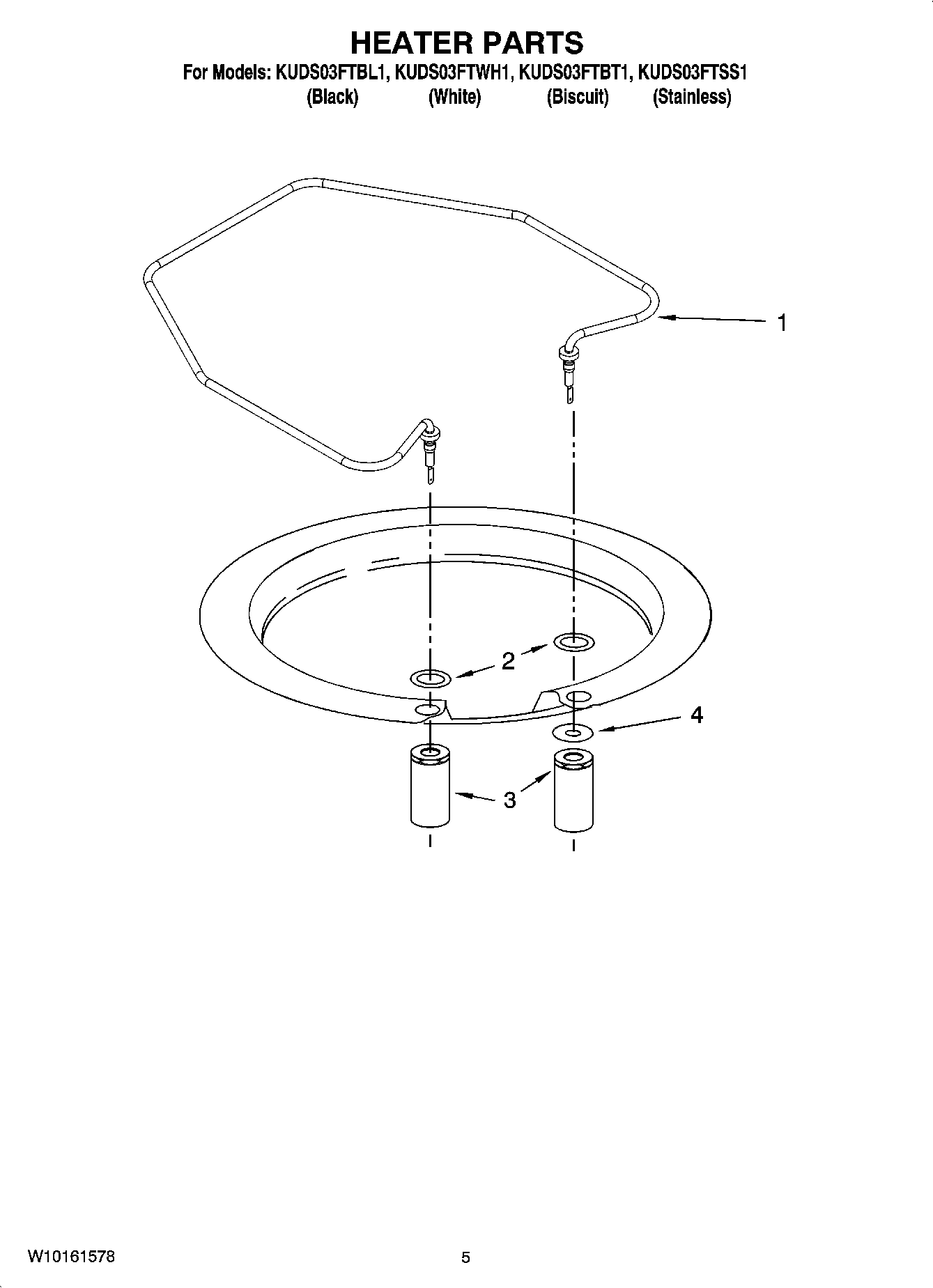

KUDS03FTSS1 05 – HEATER PARTS

Written by

Products

Position	Product
1	WPW10082892 Whirlpool Dishwasher Heater
2	WP717273 Whirlpool Dishwasher Rubber Washer
3	WPW10477552 Whirlpool Dishwasher Terminal Nut
4	Retainer, Spring Grip
4	NOTE: If heater element is removed, it must be replaced.
