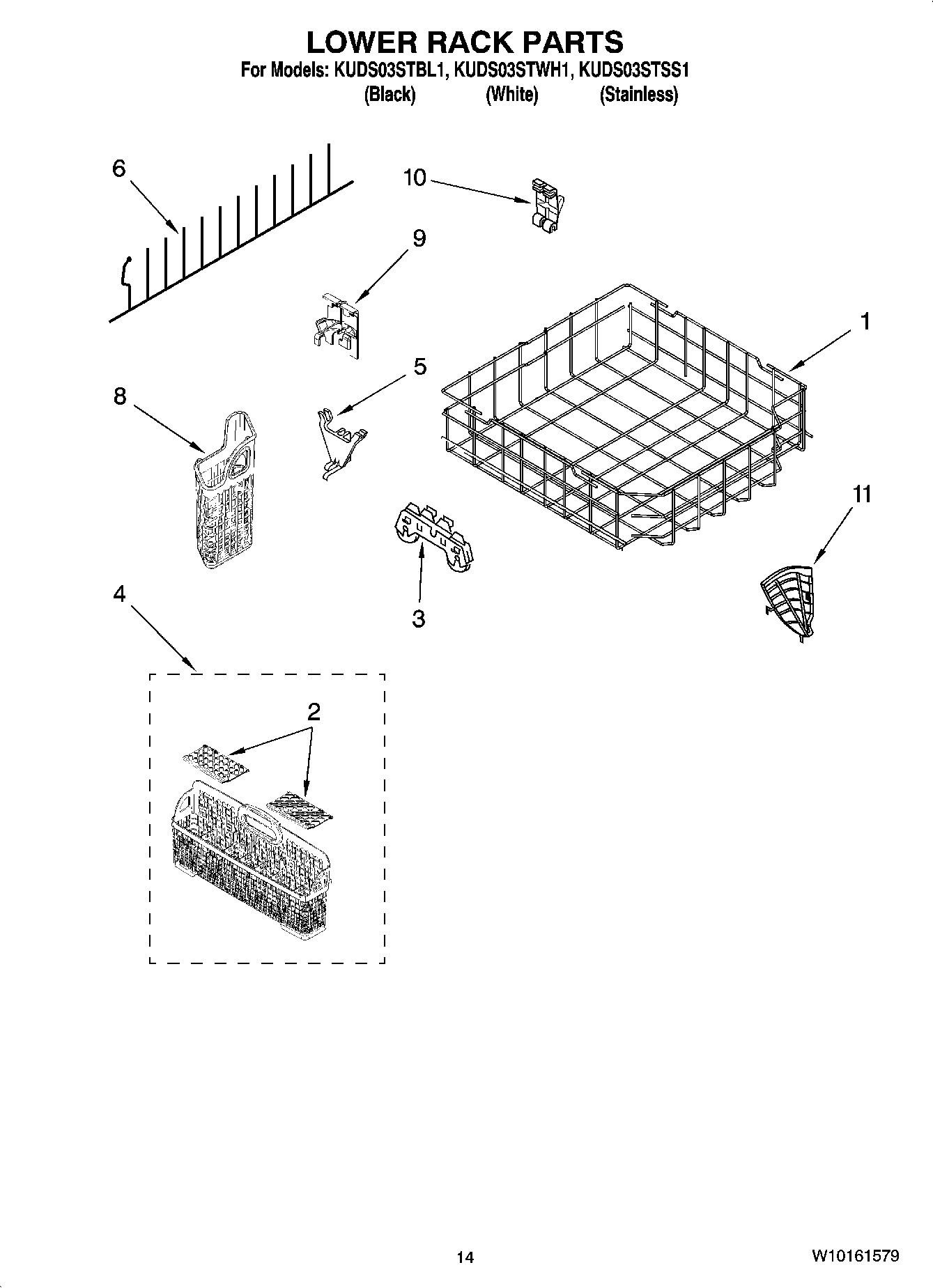

KUDS03STBL1 11 – LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

KUDS03STBL1 11 – LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KUDS03STBL1 11 – LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
8212489 Whirlpool Dishwasher Panel
W10202939 Whirlpool Touch Up
WP676453 Whirlpool Dishwasher Touch-Up
WP676455 Whirlpool Dishwasher Touch-Up
Side Panel Kits (White)
Side Panel Kits (Black)
Side Panel Kits (Biscuit)
Side Panel Kits (Stainless Steel)
Towel Bar Handle Kit (Stainless Steel)
WPL ARI115830A
WPL ARI115831A
WPL ARI115832A
8171477 Whirlpool Dishwasher Mounting Bracket
4396853 Whirlpool Dishwasher Touch-Up
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
WPL ARI115833A
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
3385556 Whirlpool Drain Hose
4396840RC Whirlpool Gray Rack Repair Kit
4317824 Whirlpool Dishwasher 5' 3 Wire Prong Power Cord Kit
4396838RC Whirlpool Rack Repair Kit White
4396277 Whirlpool Barrier Assembly
1W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
28519695 Whirlpool Dishwasher Basket Cover
28519663 Whirlpool Dishwasher Cover Assembly
3WPW10082868 Whirlpool Wheel
4WPW10190415 Whirlpool Dishwasher Basket Ware
5WPW10078227 Whirlpool Dishwasher Pivot Tine
6W10728160 Whirlpool Tine Assembly
8BASKET, UTENSIL
9WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
10WP8531314 Whirlpool Dishwasher Retainer
11WP8562069 Whirlpool Dishwasher Basket Ware
