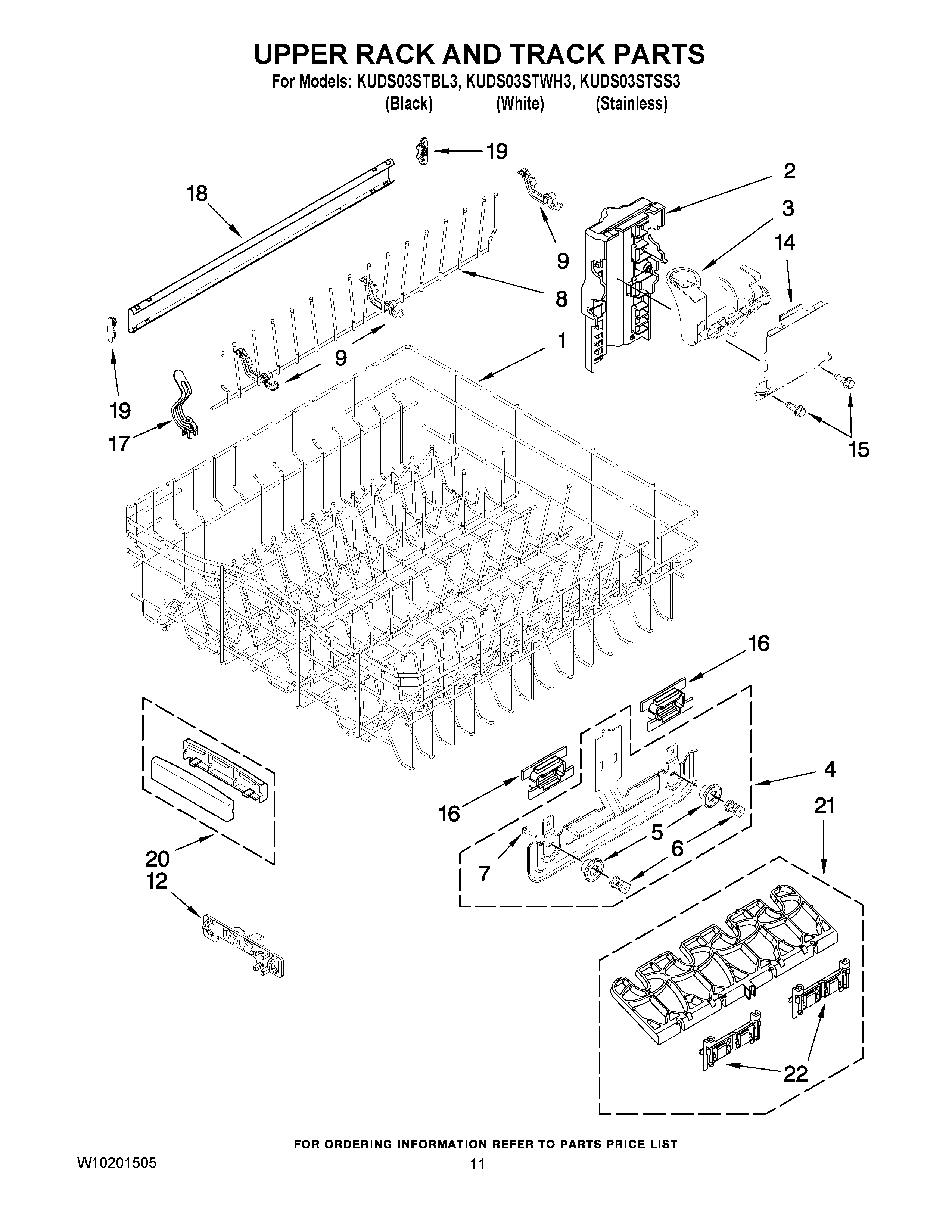

KUDS03STBL3 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10727422 Whirlpool Dishwasher Dishrack
2	W10728563 Whirlpool Dishwasher Housing
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5	WP3385088 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
12	WP8539102 Whirlpool Dishwasher Positioner
14	W10728561 Whirlpool Dishwasher Cover
15	WP9741232 Whirlpool Dishwasher Screw
16	W10728566 Whirlpool Dishwasher Positioner
17	WPW10077844 Whirlpool Dishwasher Clip
18	WP3385089 Whirlpool Track
19	WP8565925 Whirlpool Slide Rail Stop
20	Handle, Dishrack
21	WPW10082649 Whirlpool Dishwasher Cup Shelf
22	WPW10082848 Whirlpool Clip
