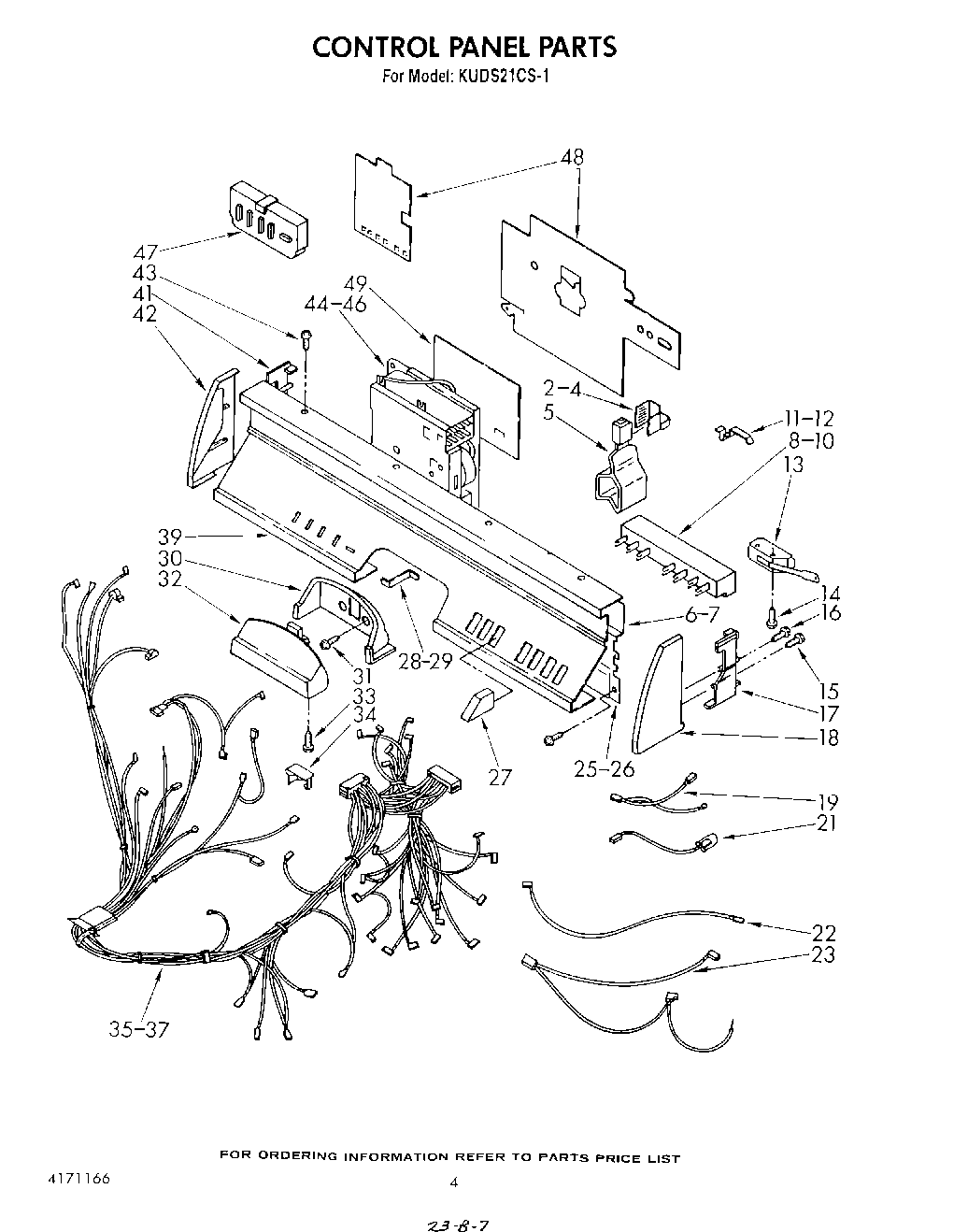

KUDS21CS1 04 – CONTROL PANEL, LITERATURE AND OPTIONAL

KUDS21CS1 04 – CONTROL PANEL, LITERATURE AND OPTIONAL

Written by

in

KUDS21CS1 04 – CONTROL PANEL, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT4177706
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
WPL LIT4171152
WPL LIT4171139
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT4171136
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT4171166
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest (Uncut)
Golden Harvest
72113 Whirlpool Touch-Up Paint
1Insulator, Latch
2Anchor, Cancel Spring
4Rivet
5Spring, Switch Cancel
6Bracket, Program Switch
8Switch, Program
10Screw, 10-16 X 5/8
11Spring, Door Interlock
12WP693304 Whirlpool Screw
13Switch, Interlock
14Screw 6-32 X 7/8
15Screw & Washer Assy
16Screw, 8-32 X 7/8
17Spacer, End Cap (R.H.)
18End Cap (R.H.)
19Wiring Harness (Grounding)
21Lead (Fill Control to Fill Valve)
22Lead Assembly (Interlock Switch to Program Switch)
23Wiring Harness (Lower Common)
25Clip, Grounding (Front Panel)
27Button, Program Switch (7)
28Bracket, Panel Reinforcement
29Screw, 6-20 x 3/8
30Trim, Handle
31WP912618 Whirlpool Dishwasher Screw
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35Wiring Harness (Main)
37WPL 4159349
39Control Panel
41Spacer, End Cap (L.H.)
42End Cap (L.H.)
43Screw, 6-20 x 3/8
44Timer Assy. (115 V., 60 Hz.) (Alt.)
44Timer Assy. (115 V., 60 Hz.)
44Timer Assy. (115 V., 60 Hz.) (Alt.)
46SCREW
47Light Package
48Insulator, Light
49Barrier, Timer
