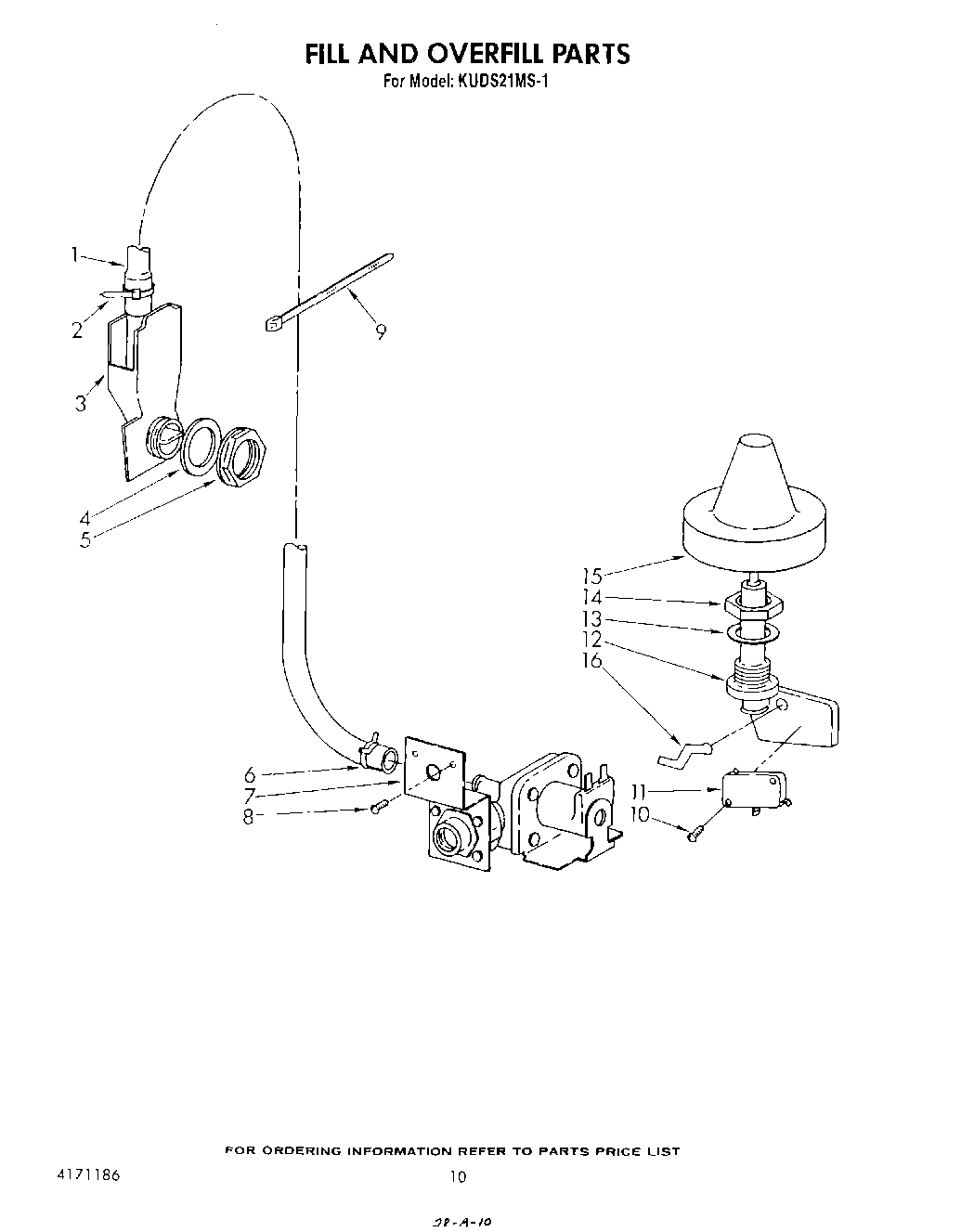

KUDS21MS1 08 – FILL AND OVER FILL

Products

PositionProduct
1Hose, Flexible (Fill Valve to Air Gap)
2Clamp, Hose
3Air Gap, Fill Assy. (Incls. Items 1 & 2)
4Gasket, Rinse Agent Dispenser
5Nut, Rinse Agent Dispenser
6Clamp, Hose
7WP4171000 Whirlpool Dishwasher Inlet Valve
8WP693304 Whirlpool Screw
9Strap (Flexible Connector to Tank)
10Screw
11WP9743413 Whirlpool Dishwasher Switch
12W10207863 Whirlpool Dishwasher Switch
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14Nut, Standpipe
15Float & Retainer Assembly
16Lever, Overflow Switch
