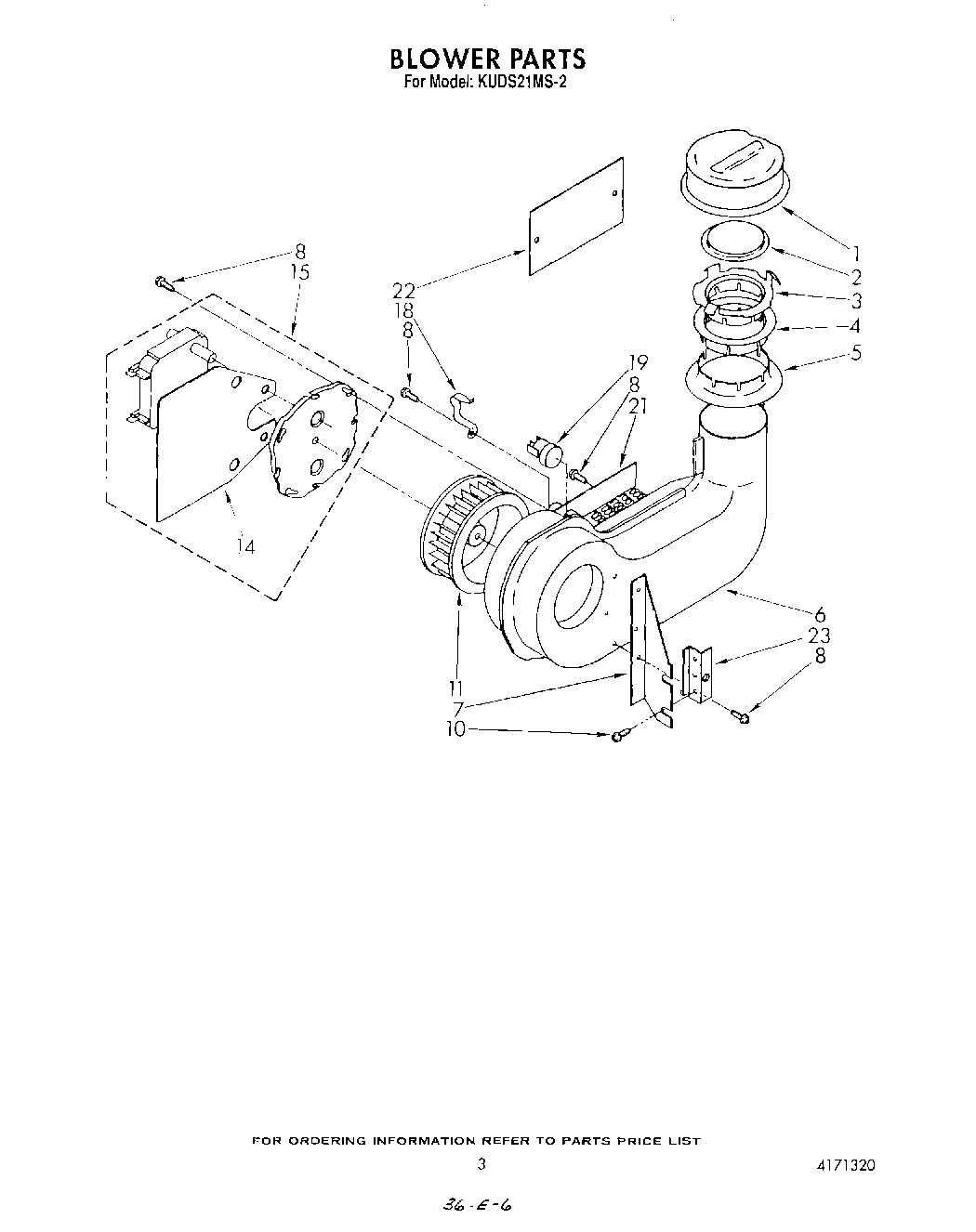

KUDS21MS2 03 – BLOWER

Products

Position	Product
1	Cover, Air Inlet (Incls. Items 2 thru 5)
2	Float, Check Valve
3	Support, Air Inlet Cover
4	Deflector, Air (Upper)
5	Deflector, Air (Lower)
6	Dryer Housing & Bracket Assembly (Includes Items 7 & 19)
7	Bracket, Housing Support
8	Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
10	Screw, 10-16 X 5/8
11	Wheel, Blower
14	Cover, Dryer Motor
15	Blower Motor Assembly
18	Clip, Thermoprotector
19	Thermostat
19	Thermostat (Alt.)
19	Thermostat (Alt.)
19	Thermostat (Alt.)
21	Heater, Open (Alt.)
21	Heater, Open (Alt.)
21	Heater, Open (Alt.)
21	Heater, Open
22	Access Cover
23	Bracket, Blower Mounting
