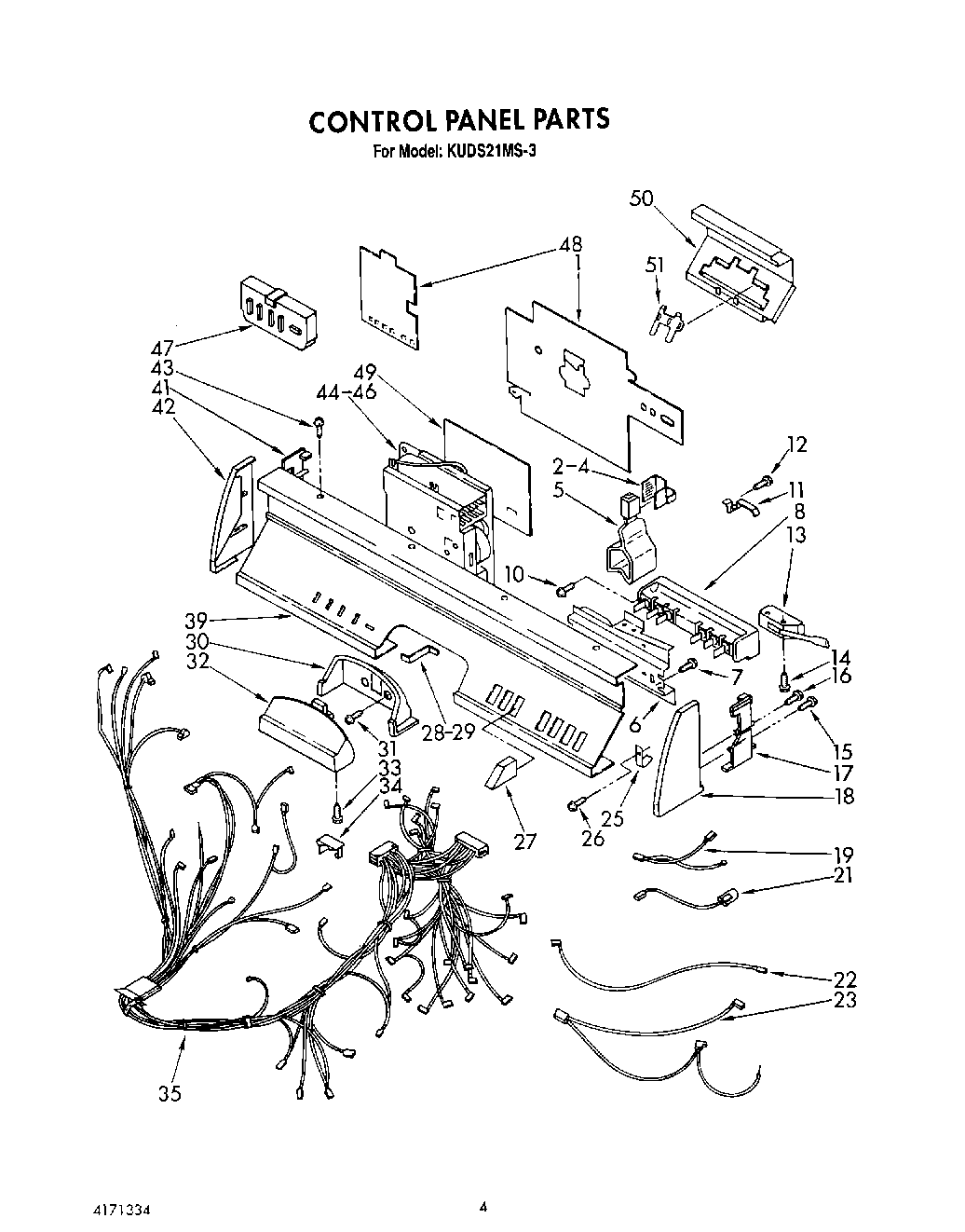

KUDS21MS3 04 – CONTROL PANEL , LIT/OPTIONAL

KUDS21MS3 04 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

KUDS21MS3 04 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	WPL LIT4171334
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT4171187
	WPL LIT4171136
	WPL LIT4171188
	WPL LIT4177706
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	350930 Whirlpool White Spray Paint
	Leveler (Thinner)
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	799344 Whirlpool Refrigerator Paint
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
1	Insulator, Latch
2	Anchor, Cancel Spring
4	Rivet
5	Spring, Switch Cancel
6	Bracket, Program Switch
8	Switch, Program
11	Spring, Door Interlock
12	WP693304 Whirlpool Screw
13	Switch, Interlock
14	Screw 6-32 X 7/8
15	Screw & Washer Assy
16	Screw, 8-32 X 7/8
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
19	Wiring Harness (Grounding)
21	Lead (Fill Control to Fill Valve)
22	Lead Assembly (Interlock Switch to Program Switch)
23	Wiring Harness (Lower Common)
25	Clip, Grounding (Front Panel)
27	Button, Program Switch (7)
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
44	Timer Assy. (115 V., 60 Hz.) (Alt.)
44	Timer Assy. (115 V., 60 Hz.) (Alt.)
44	Timer Assy. (115 V., 60 Hz.)
46	SCREW
47	Light Package
48	Insulator, Light
49	Barrier, Timer
50	Screw, 6-32 X 3/8
50	Retaining Bracket
51	Lens, Program Light
