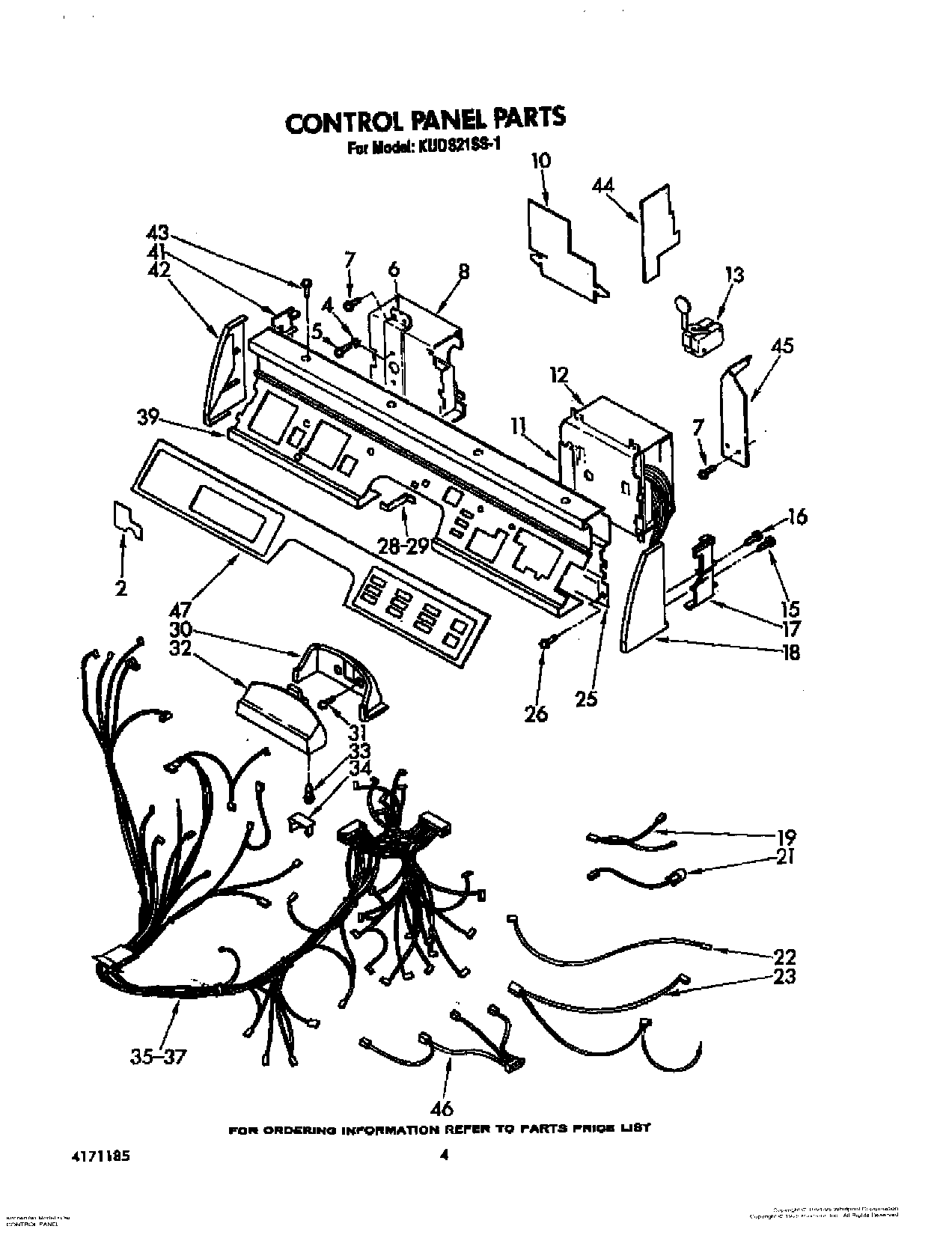

KUDS21SS1 04 – CONTROL PANEL, LIT/OPTIONAL

KUDS21SS1 04 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDS21SS1 04 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	WPL LIT4171187
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT4177716
	WPL LIT4171185
	WPL LIT4171152
	WPL LIT4171136
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Golden Harvest
	Toast
	72113 Whirlpool Touch-Up Paint
	Golden Harvest (Uncut)
2	Insulator, Integral Bracket
4	Lock Washer No.10 Ext. Shake- proof
5	Screw, 10-32 X 3/8
6	Bracket, Rotary Switch
8	Rotary Switch Assy. (Incls. Items 4-6)
10	Insulator, Harness
11	Insulator, Controller
12	Controller Assy.
13	Switch, Interlock (Incls. Item 45)
15	Screw & Washer Assy
16	Screw, 8-32 X 7/8
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
19	Wiring Harness (Grounding)
21	Lead (Fill Control to Fill Valve)
22	Lead Assembly (Interlock Switch To Program Switch)
23	Wiring Harness (Lower Common)
25	Clip, Grounding (Front Panel)
26	SCREW
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
37	WPL 4159349
39	Control Panel
39	Pushnut (7)
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
44	Insulation, Switch
45	Bracket, Door Switch Assy.
46	Harness (Thermostat)
47	Control Panel (Pushnut, Membrane)
47	Display Board
