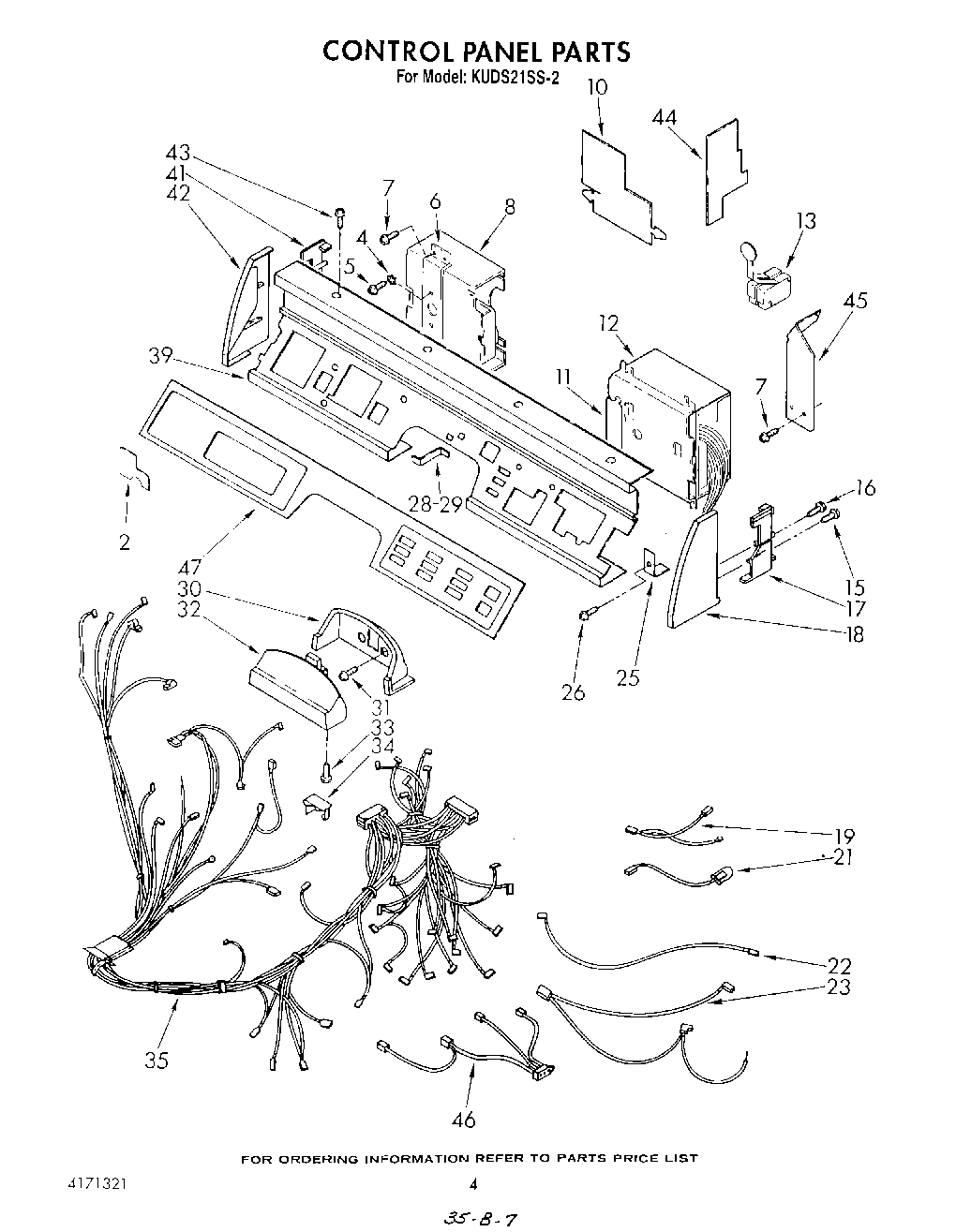

KUDS21SS2 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT4177716
WPL LIT4171321
WPL LIT4171152
WPL LIT4171187
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT4171136
Toast
Golden Harvest (Uncut)
Golden Harvest
72113 Whirlpool Touch-Up Paint
2Insulator, Integral Bracket
4Lock Washer No.10 Ext. Shake- proof
5Screw, 10-32 X 3/8
6Bracket, Rotary Switch
8Rotary Switch Assy. (Incls. Items 4-6)
10Insulator, Harness
11Insulator, Controller
12Controller Assy.
13Switch, Interlock (Incls. Item 45)
15Screw & Washer Assy
16Screw, 8-32 X 7/8
17Spacer, End Cap (R.H.)
18End Cap (R.H.)
19Wiring Harness (Grounding)
21Lead (Fill Control to Fill Valve)
22Lead Assembly (Interlock Switch To Program Switch)
23Wiring Harness (Lower Common)
25Clip, Grounding (Front Panel)
26SCREW
28Bracket, Panel Reinforcement
29Screw, 6-20 x 3/8
30Trim, Handle
31WP912618 Whirlpool Dishwasher Screw
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35WPL 4159349
35Wiring Harness (Main)
39Control Panel
39Pushnut (7)
41Spacer, End Cap (L.H.)
42End Cap (L.H.)
43Screw, 6-20 x 3/8
44Insulation, Switch
45Bracket, Door Switch Assy.
46Harness (Thermostat)
47Display Board
47Control Panel (Pushnut, Membrane)
