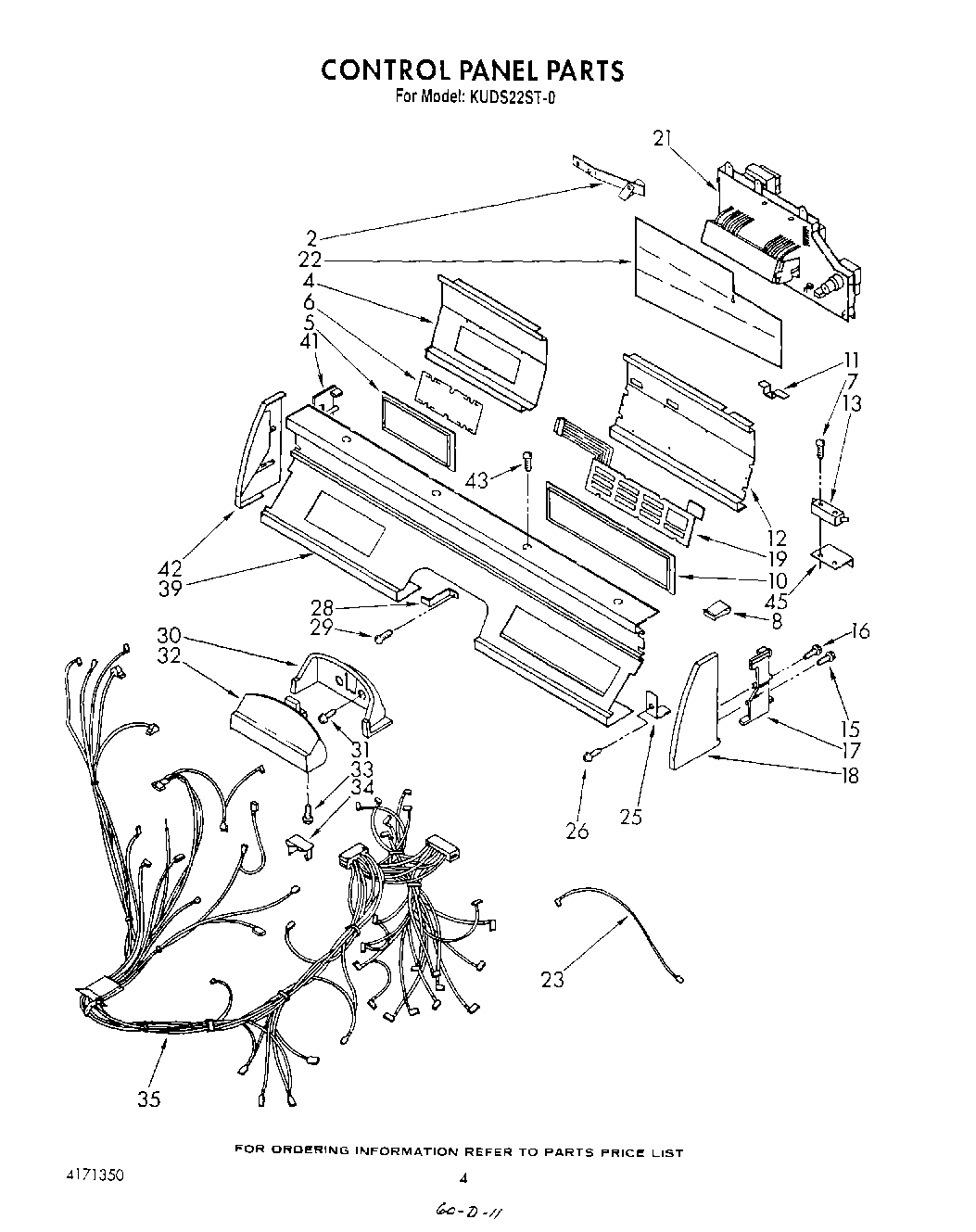

KUDS220ST0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT4171372
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT9740075
	WPL LIT4171206
	WPL LIT4171213
	WPL LIT4171350
	Platinum (Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
2	Spring, Interlock
4	Retainer, Lens
5	Bezel, Membrane
6	Lens, Display
8	Clip, Grounding
10	Bezel, Membrane
11	Screw, 6-32 X 3/8
11	Spring, Door Interlock
12	Bracket, Membrane
13	Switch, Interlock
15	Screw & Washer Assy
16	Screw, 8-32 X 7/8
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
19	Switch, Membrane
21	Electronic Control
22	Shield, Control
23	Lead Assembly (Interlock Switch To Program Switch)
25	Clip, Grounding (Front Panel)
26	SCREW
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
45	Bracket, Door Switch
