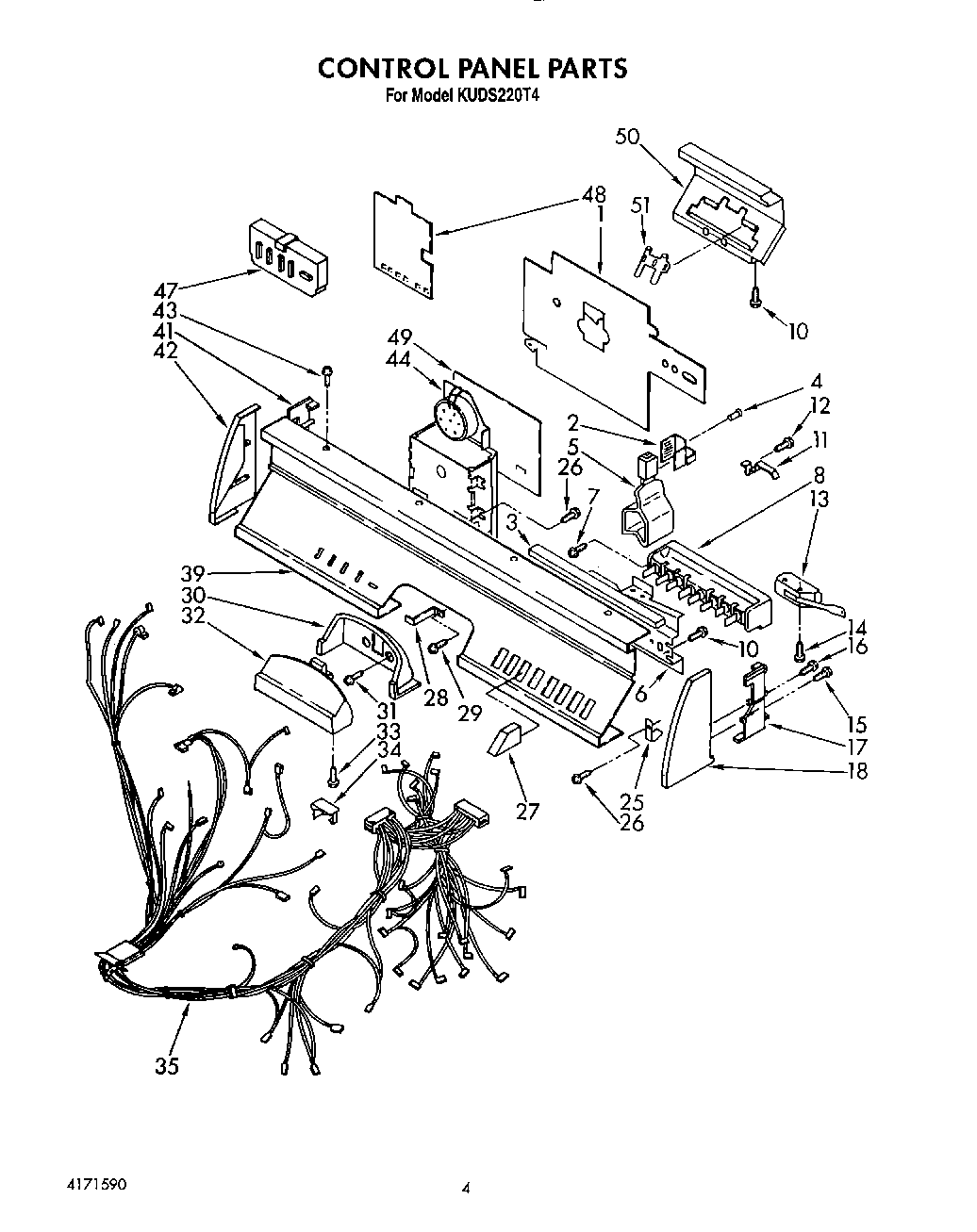

KUDS220T4 04 – CONTROL PANEL, LIT/OPTIONAL

KUDS220T4 04 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDS220T4 04 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL 4171600
	285006 Whirlpool Spray
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Adjustable Kickboard Kit
	Wood Top Kit
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT4171590
	WPL LIT4171206
	WPL LIT4171210
	WPL LIT4171371
	WPL LIT9740075
	WPL 9741087
	WPL 4171597
	WPL 4171598
	WPL 4171599
	WPL 799832
	350942 Whirlpool Spray Paint
	WPL 72112
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	Leveler (Thinner)
	Golden Harvest (Uncut)
	350956 Whirlpool Spray Assembly
	Toast
	Platinum (Uncut)
	350930 Whirlpool White Spray Paint
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
1	Insulator, Latch
2	Anchor, Cancel Spring
3	Seal, Moisture
4	Rivet
5	Spring, Switch Cancel
6	Bracket, Program Switch
8	Switch, Program
11	Spring, Door Interlock
12	WP693304 Whirlpool Screw
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
15	Screw & Washer Assy
16	Screw, 8-32 X 7/8
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
25	Clip, Grounding (Front Panel)
26	SCREW
27	Button, Program Switch (7)
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
39	Control Panel (Black)
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
44	Timer Assembly (115 V., 60 Hz.)
47	Light Package
48	Insulator, Light
49	Barrier, Timer
50	Screw, 6-32 X 3/8
50	Retaining Bracket
51	Lens, Program Light
