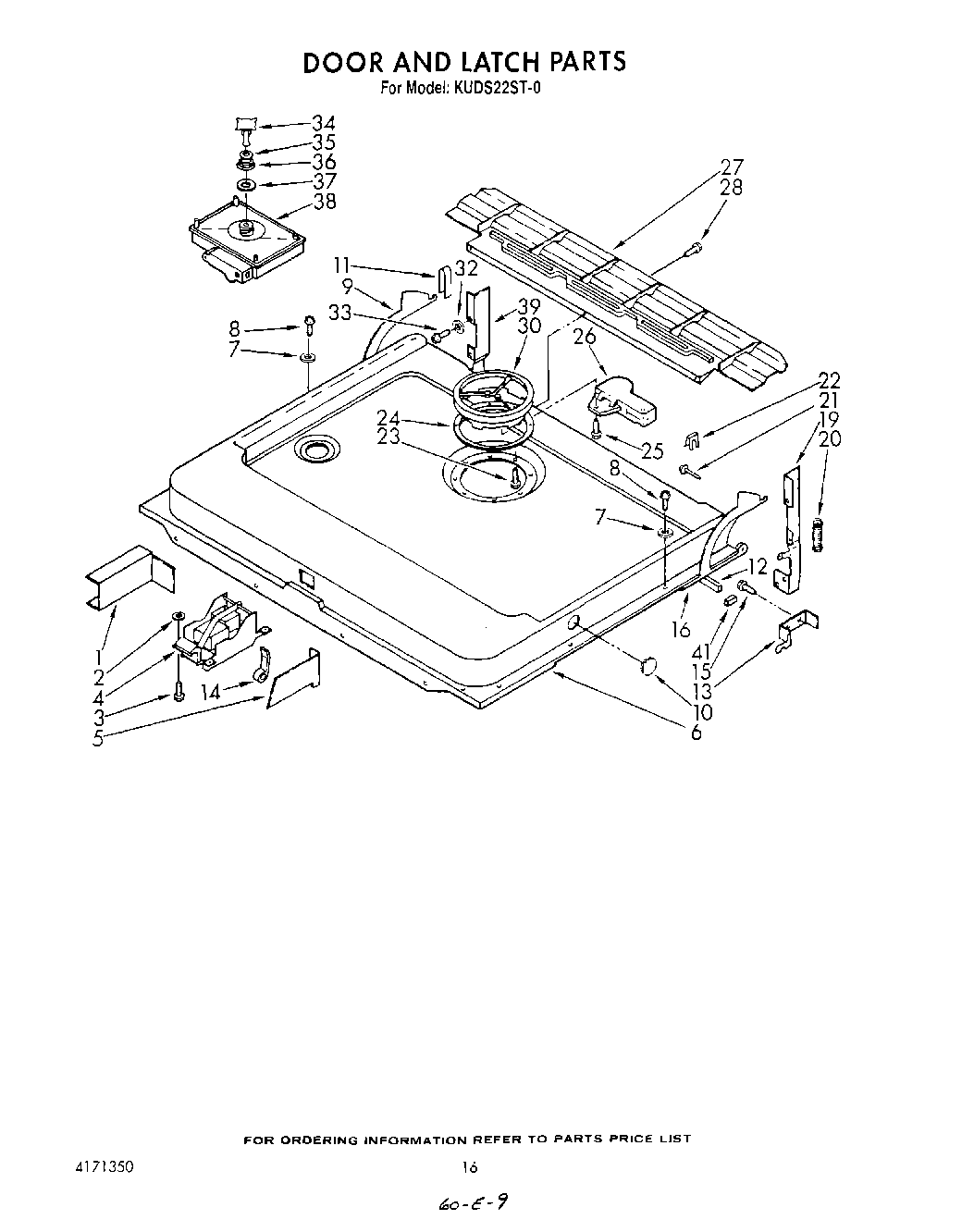

KUDS22ST0 13 – DOOR AND LATCH

Products

Position	Product
1	Cover, Wiring Harness
2	Washer
3	WP693304 Whirlpool Screw
4	Latch Mechanism Assembly
5	Insulation, Switch
6	Inner Door Assembly
8	Screw, 10-32 x 5/16
9	Bracket, L.H. Door Stop
10	Plug Button
11	Bearing, Door Stop Insert (2)
12	Vapor Barrier, Inner Door (Includes Item No. 41)
13	Bracket, Spring Mounting (L.H.)
13	Bracket, Spring Mounting (R.H.)
14	Actuator, Door Latch
15	WP3390631 Whirlpool Screw
16	Bracket, R.H. Door Stop
19	Bracket, R.H. Hinge
20	WP4162629 Whirlpool Dishwasher Spring
21	Pin, Hinge
22	Clip, Hinge Pin Retaining
23	Screw
24	Gasket, Detergent Dispenser
25	SCREW
26	WP4162568 Whirlpool Bi-metal Thermostat
27	Baffle, Lower
30	WP9740171 Whirlpool Dishwasher Dispenser
32	Washer (Rubber)
33	Screw, 10-32 X 1/2
34	Fill Hole Plug Assembly (Includes Item 35)
35	Washer, Fill Hole Plug
36	Nut, Rinse Agent Dispenser
37	Gasket, Rinse Agent Dispenser
38	Rinse Agent Dispensing Valve
39	Bracket, L.H. Hinge
41	Vapor Barrier, Corner (2)
