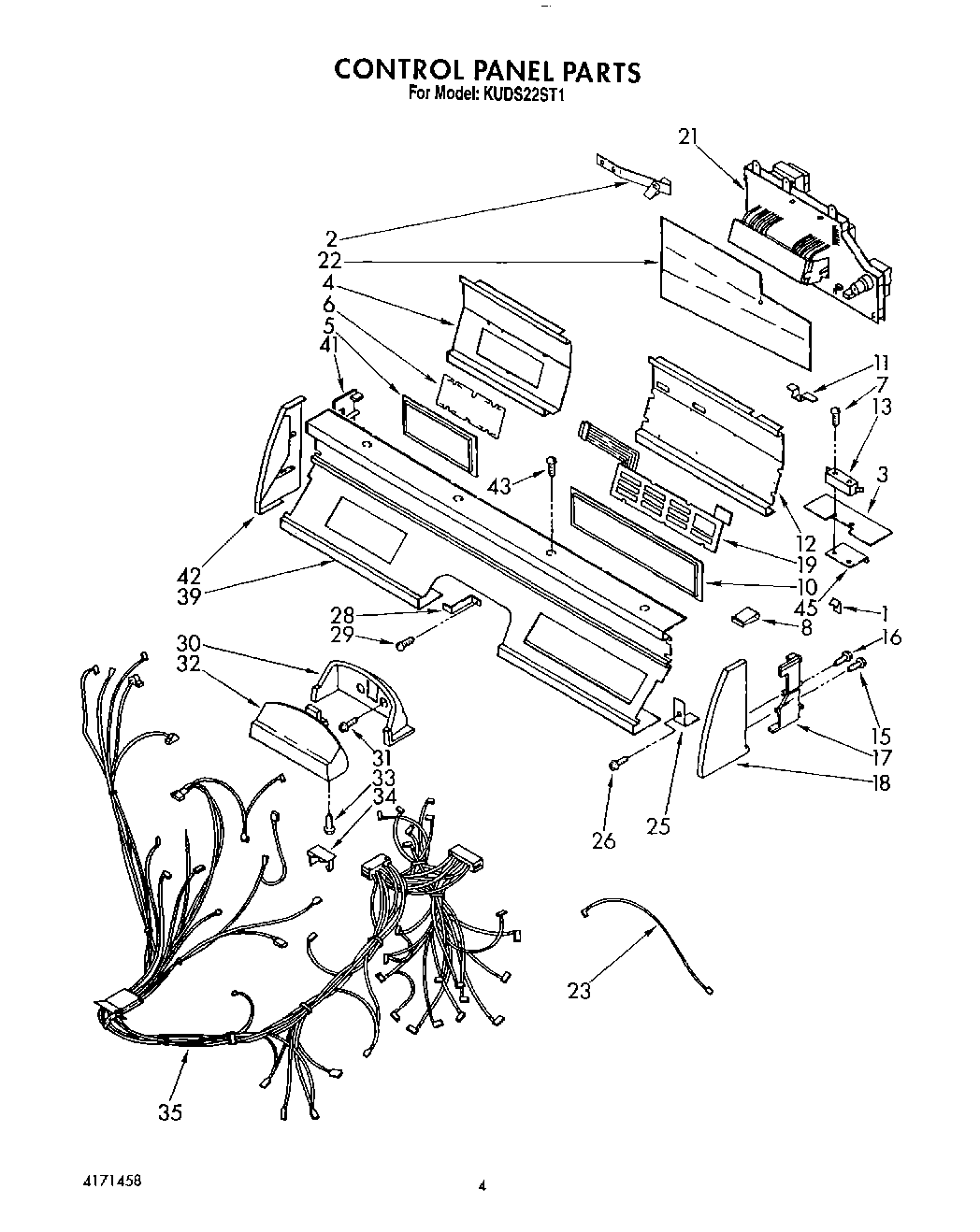

KUDS22ST1 04 – CONTROL PANEL, LIT/OPTIONAL
Written by
in
KUDS22ST1 04 – CONTROL PANEL, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
W10840471 Whirlpool Dishwasher Touch Up
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT4171372
WPL LIT4171213
WPL LIT9740075
WPL LIT4171458
Paint, Spray (13 Oz.) (Platinum)
Toast
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Enamal, Toast (1 Qt. Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
WPL LIT4171206
1
Spacer, Interlock Bracket
2
Spring, Interlock
3
Insulator, Door Switch
4
Retainer, Lens
5
Bezel, Membrane
6
Lens, Display
8
Clip, Grounding
10
Bezel, Membrane
11
Spring, Door Interlock
11
WP693304 Whirlpool Screw
12
Bracket, Membrane
13
Switch, Interlock
15
Screw & Washer Assy
16
Screw, 8-32 X 7/8
17
Spacer, End Cap (R.H.)
18
End Cap (R.H.)
19
Switch, Membrane
21
Electronic Control
22
Shield, Control
23
Lead Assembly (Interlock Switch To Program Switch)
25
Clip, Grounding (Front Panel)
26
SCREW
28
Bracket, Panel Reinforcement
29
Screw, 6-20 x 3/8
30
Trim, Handle
31
WP912618 Whirlpool Dishwasher Screw
32
Handle, Latch
33
Screw, 10-32 x 5/8
34
Clip, Harness Guide
35
Wiring Harness (Main)
39
Control Panel
41
Spacer, End Cap (L.H.)
42
End Cap (L.H.)
43
Screw, 6-20 x 3/8
45
Bracket, Door Switch
←
