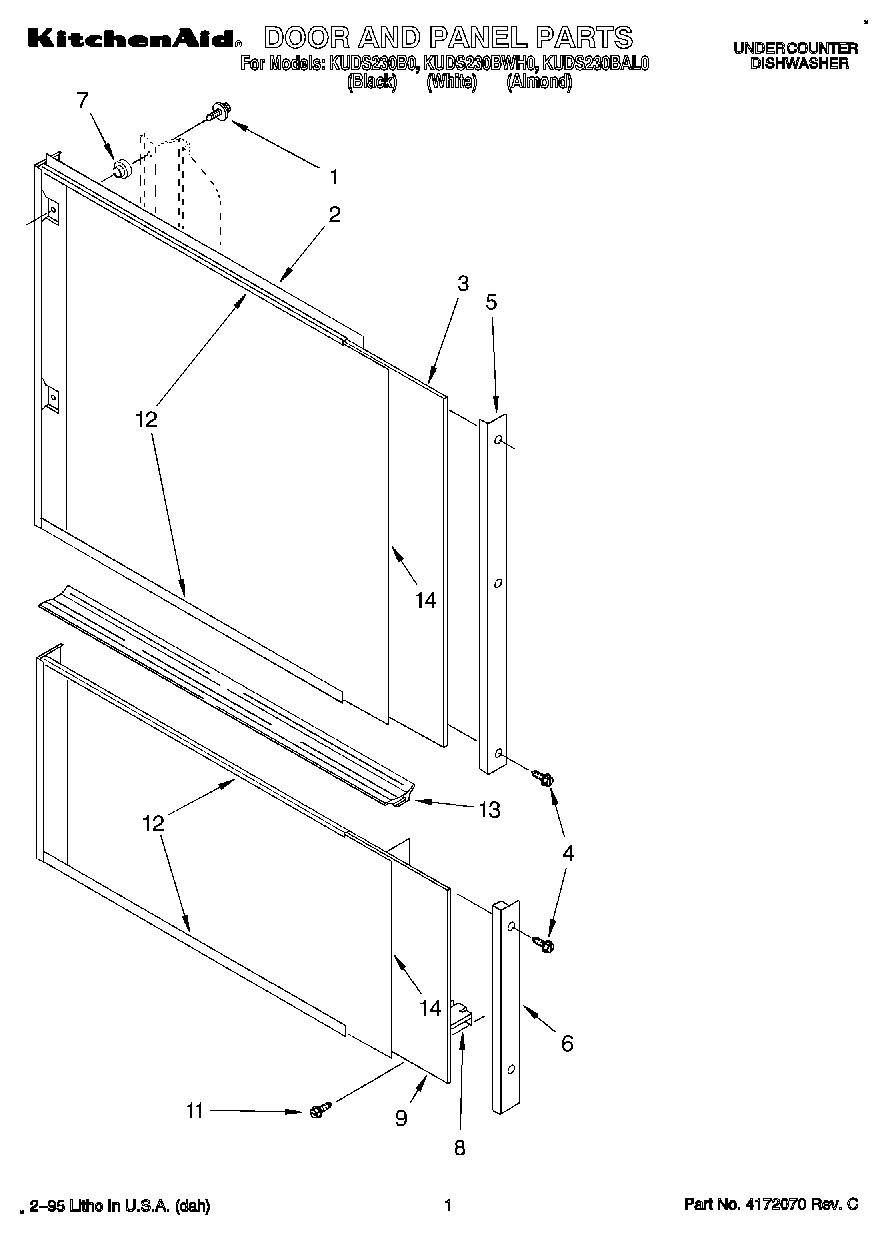

KUDS230B0 01 – DOOR AND PANELadmin2025-04-26T12:45:17+00:00KUDS230B0 01 – DOOR AND PANEL ProductsPositionProduct1Screw2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Almond Model)2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)3Filler (Upper Panel)4Screw (Black Model)4Screw (White Model)4Screw (Almond Model)5Side Trim (Upper Panel) (Black Model)5Side Trim (Upper Panel) (White Model)5Side Trim (Upper Panel) (Almond Model)6Side Trim (Lower Panel) (White Model)6Side Trim (Lower Panel) (Black Model)6Side Trim (Lower Panel) (Almond Model)7Grommet, Panel8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (White Model)8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Almond Model)9Filler (Lower Panel)11Screw12Trim, Panel (Upper & Lower) (White Model)12Trim, Panel (Upper & Lower) (Almond Model)12Trim, Panel (Upper & Lower) (Black Model)13Channel, Evaporation14Panel Insert Kits (White/Black)14Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)14Panel Insert Kits (OPTIONAL KITS) (Almond/White)14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)14Panel Insert Kits (OPTIONAL KITS) (Fresh Avocado/ Coffee)14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)
