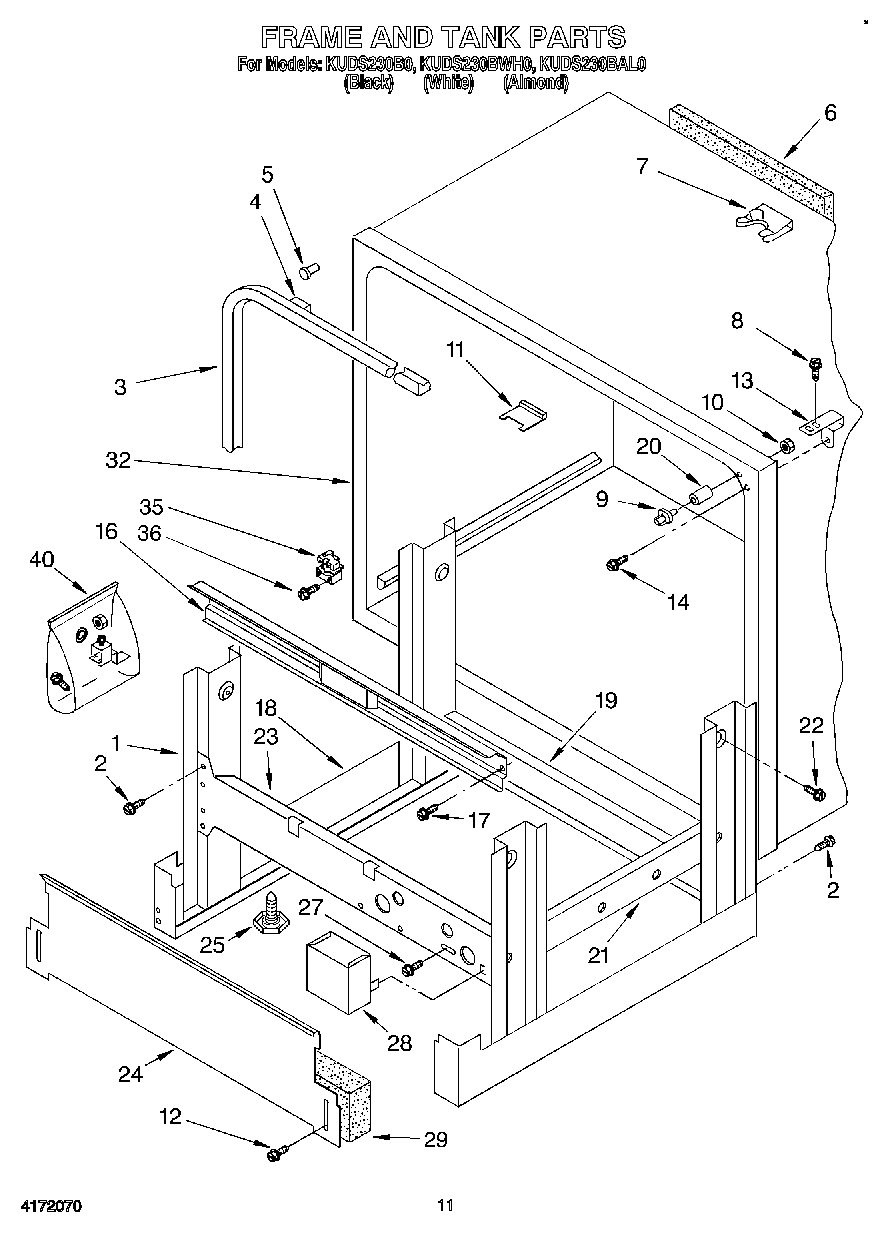

KUDS230B0 09 – FRAME AND TANK

Products

Position	Product
1	Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2	SCREW
3	Door Seal Assembly (Includes Item 4)
4	Clip, Seal
5	Bumper, Door
6	Insulation, Tank (Back)
7	Clip, Retainer
8	WP308685 Whirlpool Microwave Screw
9	Actuator, Interlock Switch
10	Pushnut (2)
11	Keeper, Latch
12	Screw
13	WP9741251 Whirlpool Mounting Bracket
14	Screw, 7-19 x 1/2
16	Support, Lower Panel
17	Screw, 10-32 X 1/2
18	Frame Assembly (L.H.)
19	Cross Frame, Rear
20	Sleeve, Actuator
21	Frame Assembly (R.H.)
22	Screw, 1/4-20 x 1/2
23	Cross Frame, Front
24	Kick Board ((Black))
24	Kick Board ((White))
24	Kick Board ((Almond))
25	Foot, Leveling (4)
27	Screw
28	Enclosure, Elec. Supply
28	SCREW
29	Insulation
32	Tank (Serviced Complete with Frame)
35	Relay, Start
36	Screw, 8-18 x 1-1/4
40	Ground Lug Kit
