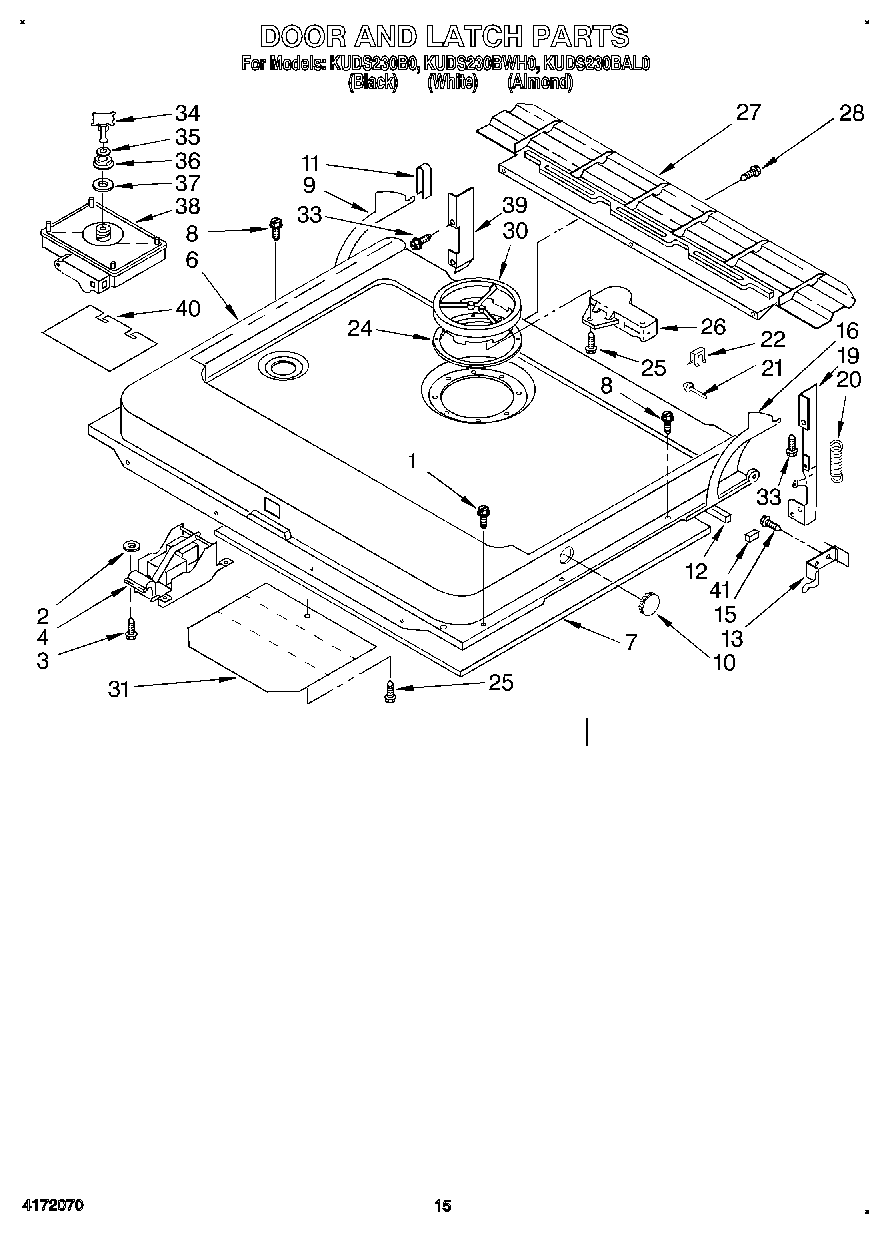

KUDS230B0 12 – DOOR AND LATCH, LIT/OPTIONAL

KUDS230B0 12 – DOOR AND LATCH, LIT/OPTIONAL

Written by

in

KUDS230B0 12 – DOOR AND LATCH, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
W10840471 Whirlpool Dishwasher Touch Up
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Adjustable Kickboard Kit
White (R.H.)
Almond (R.H.)
White (L.H.)
Almond (L.H.)
WPL 9741358
WPL LIT9742114
WPL LIT9742211
WPL LIT9742004
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
Wood Top Kit
285006 Whirlpool Spray
WPL 72112
Platinum (Uncut)
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
WPL 9741949
Almond (Uncut)
9741248 Whirlpool Dishwasher Spring Kit
WPL LIT9742248
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest (Uncut)
1Screw & Washer Assembly
2Washer
3Screw, 10-16 X 3/8
4Latch Mechanism Assembly
6Inner Door Assembly
7Insulation, Inner Door
8Screw & Washer Assembly
9Bracket, L.H. Door Stop
10Plug Button
11Bearing, Door Stop Insert (2)
12Vapor Barrier, Inner Door (Includes Item No. 41)
13Bracket, Spring Mounting (L.H.)
13Bracket, Spring Mounting (R.H.)
15WP3390631 Whirlpool Screw
16Bracket, R.H. Door Stop
19Bracket, R.H. Hinge
20WP4162629 Whirlpool Dishwasher Spring
21Pin, Hinge
22Clip, Hinge Pin Retaining
24WP4171447 Whirlpool Dishwasher Seal
25Screw, 8-18 x 1/2
26WP9741678 Whirlpool Dishwasher Bi-Metal
27Baffle, Lower
28SCREW
30WP9740171 Whirlpool Dishwasher Dispenser
31Barrier, Detergent Cup
33Screw & Washer
34Fill Hole Plug Assembly (Includes Item 35)
35Washer, Fill Hole Plug
36Nut, Rinse Agent Dispenser
37Gasket, Rinse Agent Dispenser
38Rinse Agent Dispensing Valve
39Bracket, L.H. Hinge
40Shield, Rinse Dispenser
41Vapor Barrier, Corner (2)
