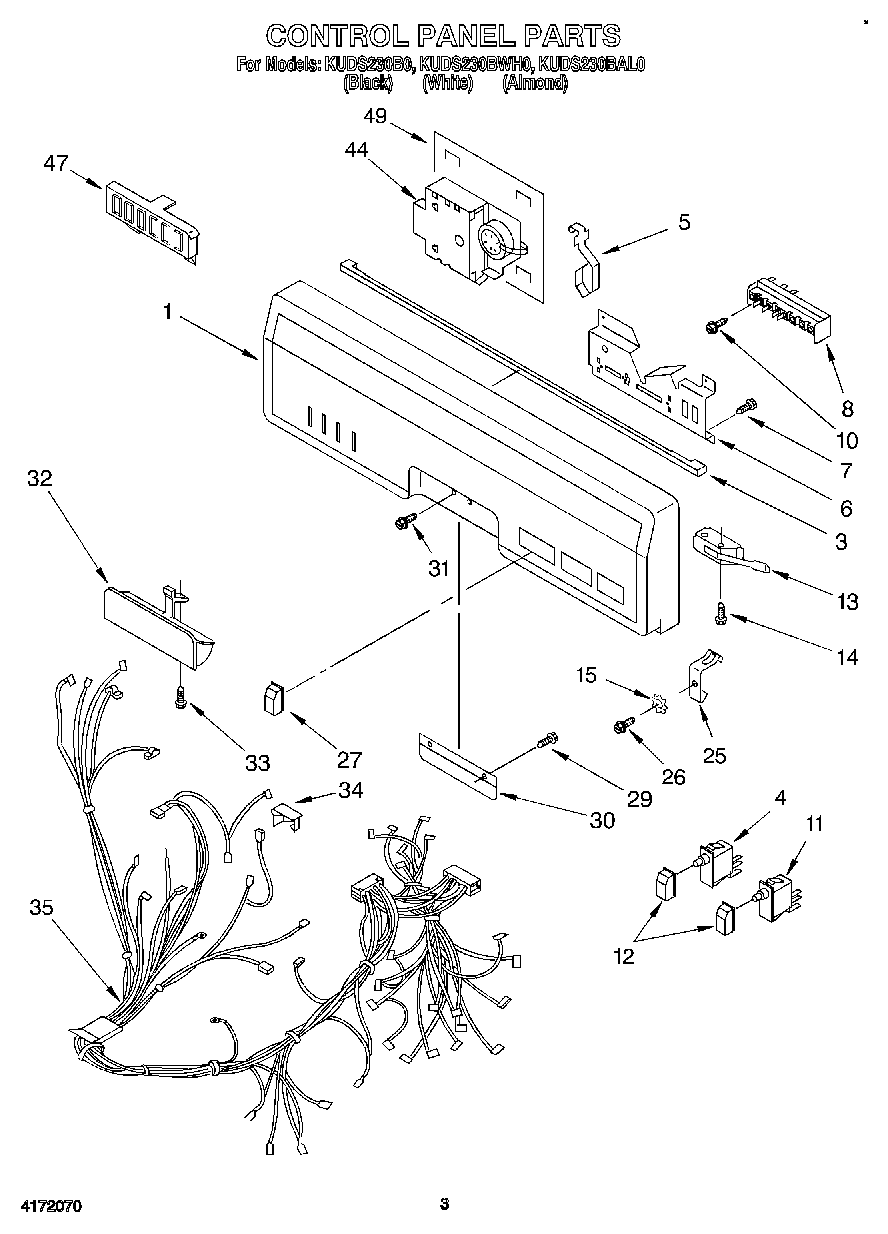

KUDS230BAL0 03 – CONTROL PANEL

Products

Position	Product
1	Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (Almond Model)
1	Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (White Model)
1	Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (Black Model)
3	Seal, Control Panel
4	Switch, Time Delay
5	Spring, Switch Cancel
6	Bracket, Program Switch
7	SCREW
8	Switch, Program
10	Screw, 6-32 X 3/8
11	Switch, start
12	Button, Time Delay (2) (Almond Model)
12	Button, Time Delay (2) (White Model)
12	Button, Time Delay (2) (Black Model)
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
15	4159493 Whirlpool Lockwasher
25	Clip, Grounding (Front Panel)
26	Screw, 8-18 x 1/2
27	Button, Program Switch (8) (Almond Model)
27	Button, Program Switch (8) (White Model)
27	Button, Program Switch (6) (Black Model)
29	Screw
30	Bracket, Support
31	Screw, 8-32 x 1/2 (Black Model)
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch (Black Model)
32	Handle, Latch (White Model)
32	Handle, Latch (Almond Model)
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
44	Timer Assembly (
47	WPL 9742225
49	Barrier, Timer
