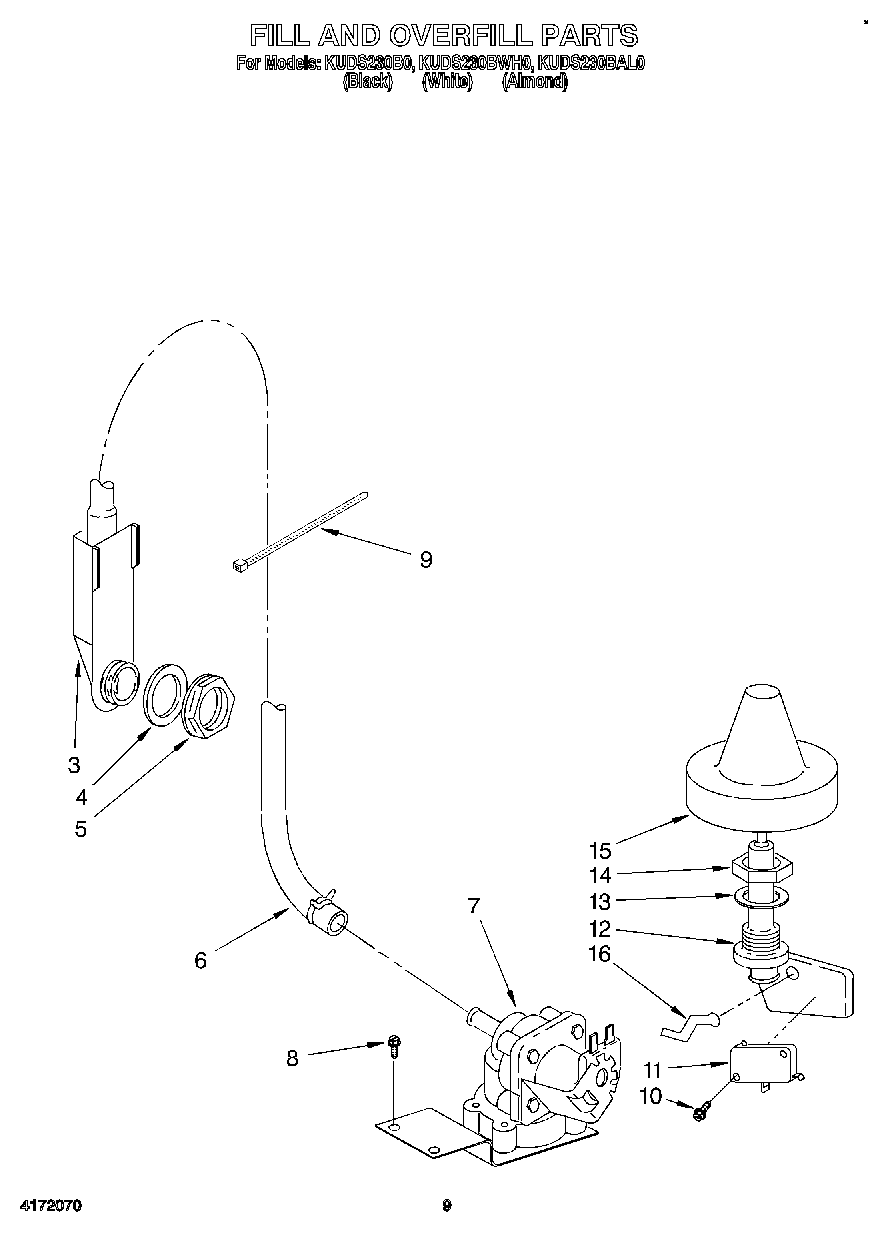

KUDS230BAL0 07 – FILL AND OVERFILL

Products

Position	Product
3	Water Inlet and Hose Assembly
4	Gasket, Rinse Agent Dispenser
5	Nut, Rinse Agent Dispenser
6	Clamp, Hose
7	Fill Valve Assembly
8	Screw, 10-16 X 3/8
9	WPW10339879 Whirlpool Wire Tie
10	Screw
11	WP9743413 Whirlpool Dishwasher Switch
12	W10207863 Whirlpool Dishwasher Switch
13	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14	Nut, Standpipe
15	Float & Retainer Assembly
16	Lever, Overflow Switch
