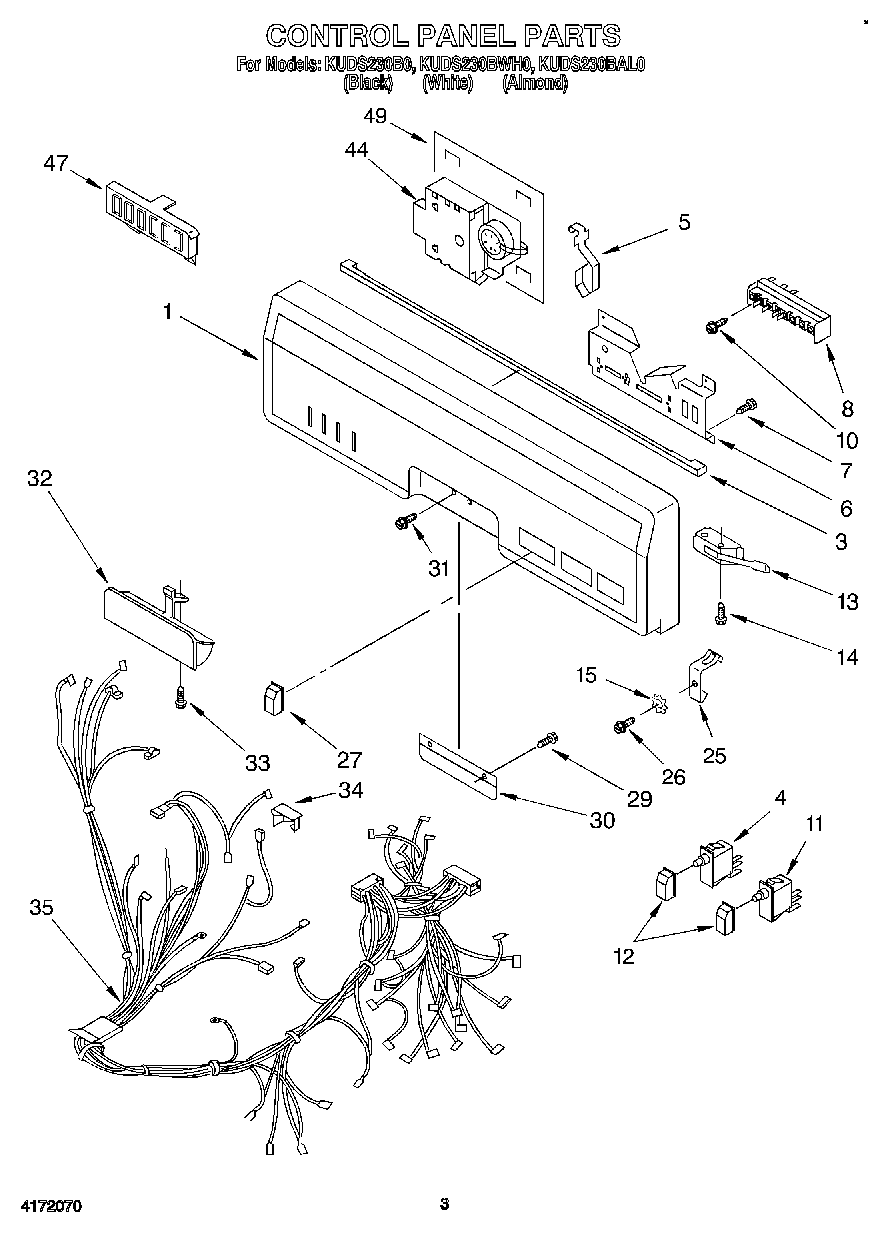

KUDS230BWH0 03 – CONTROL PANELadmin2025-04-26T12:41:52+00:00KUDS230BWH0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (Almond Model) |
| 1 | Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (White Model) |
| 1 | Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (Black Model) |
| 3 | Seal, Control Panel |
| 4 | Switch, Time Delay |
| 5 | Spring, Switch Cancel |
| 6 | Bracket, Program Switch |
| 7 | SCREW |
| 8 | Switch, Program |
| 10 | Screw, 6-32 X 3/8 |
| 11 | Switch, start |
| 12 | Button, Time Delay (2) (Almond Model) |
| 12 | Button, Time Delay (2) (White Model) |
| 12 | Button, Time Delay (2) (Black Model) |
| 13 | Switch, Interlock |
| 14 | W11596033 Whirlpool Microwave Screw |
| 15 | 4159493 Whirlpool Lockwasher |
| 25 | Clip, Grounding (Front Panel) |
| 26 | Screw, 8-18 x 1/2 |
| 27 | Button, Program Switch (8) (Almond Model) |
| 27 | Button, Program Switch (8) (White Model) |
| 27 | Button, Program Switch (6) (Black Model) |
| 29 | Screw |
| 30 | Bracket, Support |
| 31 | Screw, 8-32 x 1/2 (Black Model) |
| 31 | WP912618 Whirlpool Dishwasher Screw |
| 32 | Handle, Latch (Black Model) |
| 32 | Handle, Latch (White Model) |
| 32 | Handle, Latch (Almond Model) |
| 33 | Screw, 10-32 x 5/8 |
| 34 | Clip, Harness Guide |
| 35 | WPL 4159349 |
| 35 | Wiring Harness (Main) |
| 44 | Timer Assembly ( |
| 47 | WPL 9742225 |
| 49 | Barrier, Timer |
