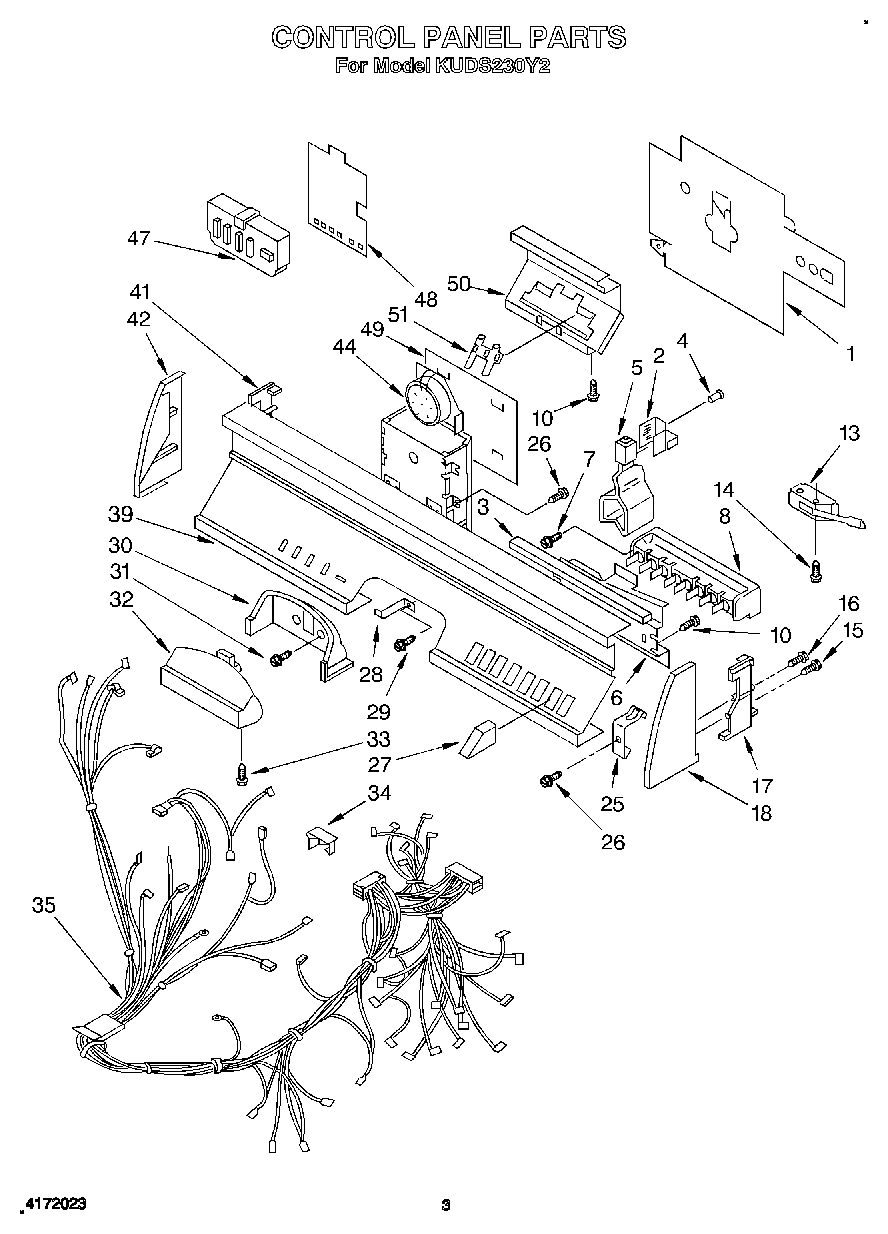

KUDS230Y2 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	WPL LIT9741531
	WPL LIT9741514
	WPL LIT9741182
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	Wood Top Kit
	350942 Whirlpool Spray Paint
	WPL 72112
	Platinum (Uncut)
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT9741673
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	WPL 9741087
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
1	Insulator, Latch
2	Anchor, Cancel Spring
3	Seal, Moisture
4	Rivet
5	Spring, Switch Cancel
6	Bracket, Program Switch
8	Switch, Program
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
15	Screw & Washer Assy
16	WP681249 Whirlpool Screw Assembly
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
25	Clip, Grounding (Front Panel)
26	SCREW
27	Button, Program Switch (7)
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
44	Timer Assembly
47	Light Package
48	Insulator, Light
49	Barrier, Timer
50	Screw, 6-32 X 3/8
50	Retaining Bracket
51	Lens, Program Light
