KUDS230Y2 09 – FRAME AND TANK

KUDS230Y2 09 – FRAME AND TANK

Written by

in

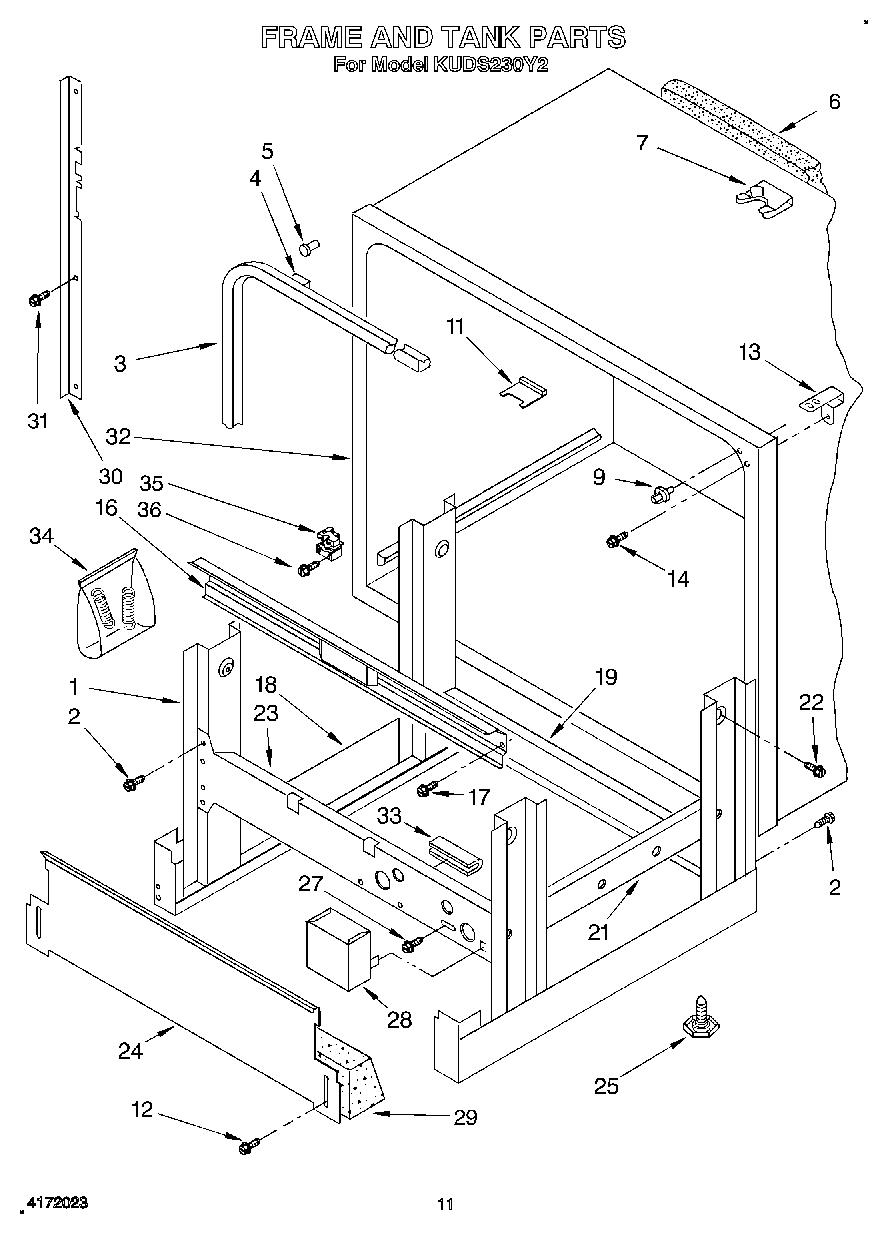

KUDS230Y2 09 – FRAME AND TANK

Products

PositionProduct
1Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2Screw, 10-16 x 1/2
3Door Seal Assembly (Includes Item 4)
4Clip, Seal
5Bumper, Door
6Insulation, Tank (Back)
7Clip, Retainer
9Actuator, Interlock Switch
11Keeper, Latch
12Screw
13WP9741251 Whirlpool Mounting Bracket
14Screw, 7-19 x 1/2
16Support, Lower Panel
17Screw, 10-32 X 1/2
18Frame Assembly (L.H.)
19Cross Frame, Rear
21Frame Assembly (R.H.)
22Screw (2)
23Cross Frame, Front
24Kick Board ((Black))
25Foot, Leveling (4)
27Screw
28SCREW
28Enclosure, Elec. Supply
29Shield, Insulation
30Trim, Tank (L.H.)
30Trim, Tank (R.H.)
31Screw, 10-24 X 1/2
32Tank (Serviced Complete with Frame)
33Protector, Edge
349741248 Whirlpool Dishwasher Spring Kit
35Relay, Start
36Screw, 8-18 x 1-1/4
