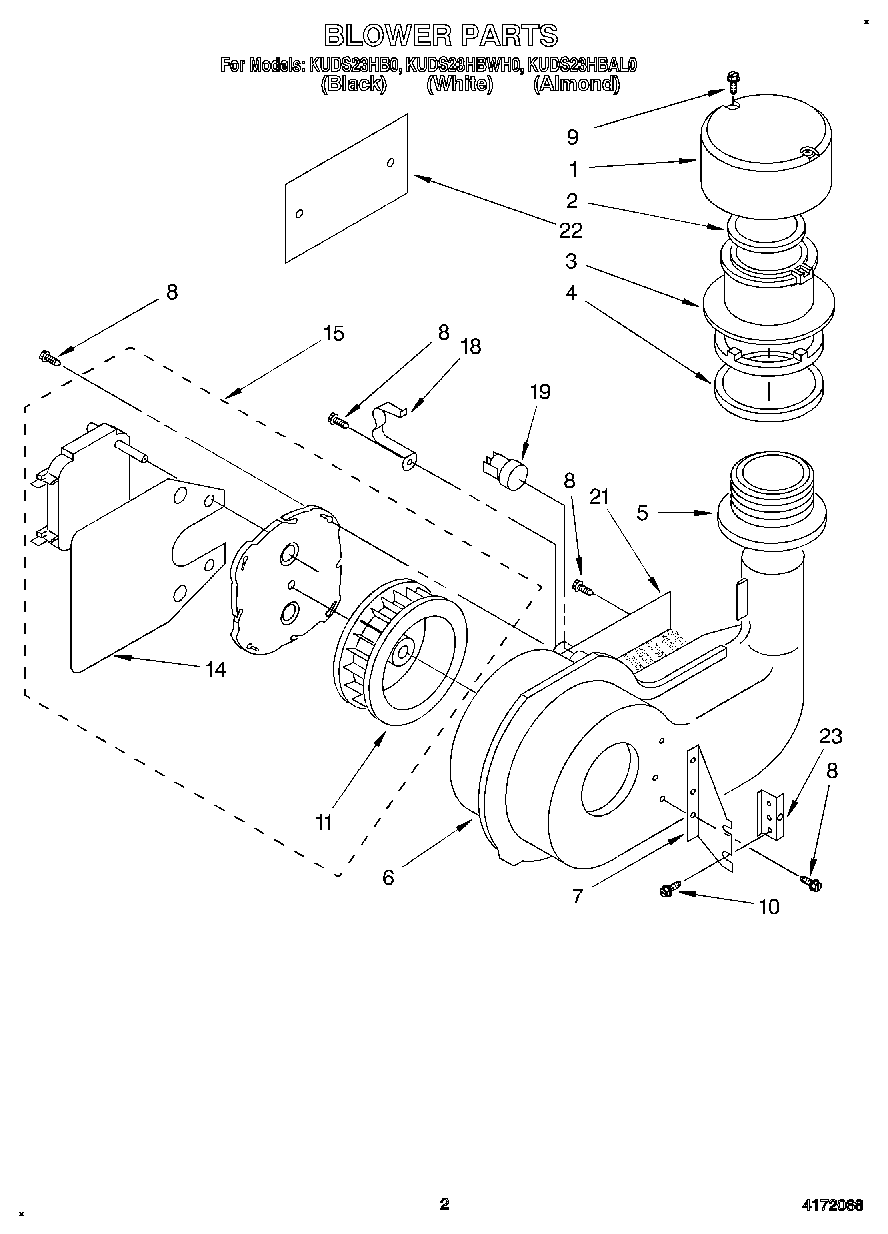

KUDS23HB0 02 – BLOWER

Products

Position	Product
1	Cover, Air Inlet
2	Float, Check Valve
3	Vent Tube
4	Seal
5	Retainer, Vent Tube
6	Dryer Housing
7	Bracket, Housing Support
8	Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
9	Screw, No.6 (2)
10	Screw, 10-16 X 5/8
11	Wheel, Blower
14	Cover, Dryer Motor
15	Blower Motor Assembly
18	Clip, Thermoprotector
19	Thermostat
21	Heater
22	Access Cover
23	Bracket, Blower Mounting
