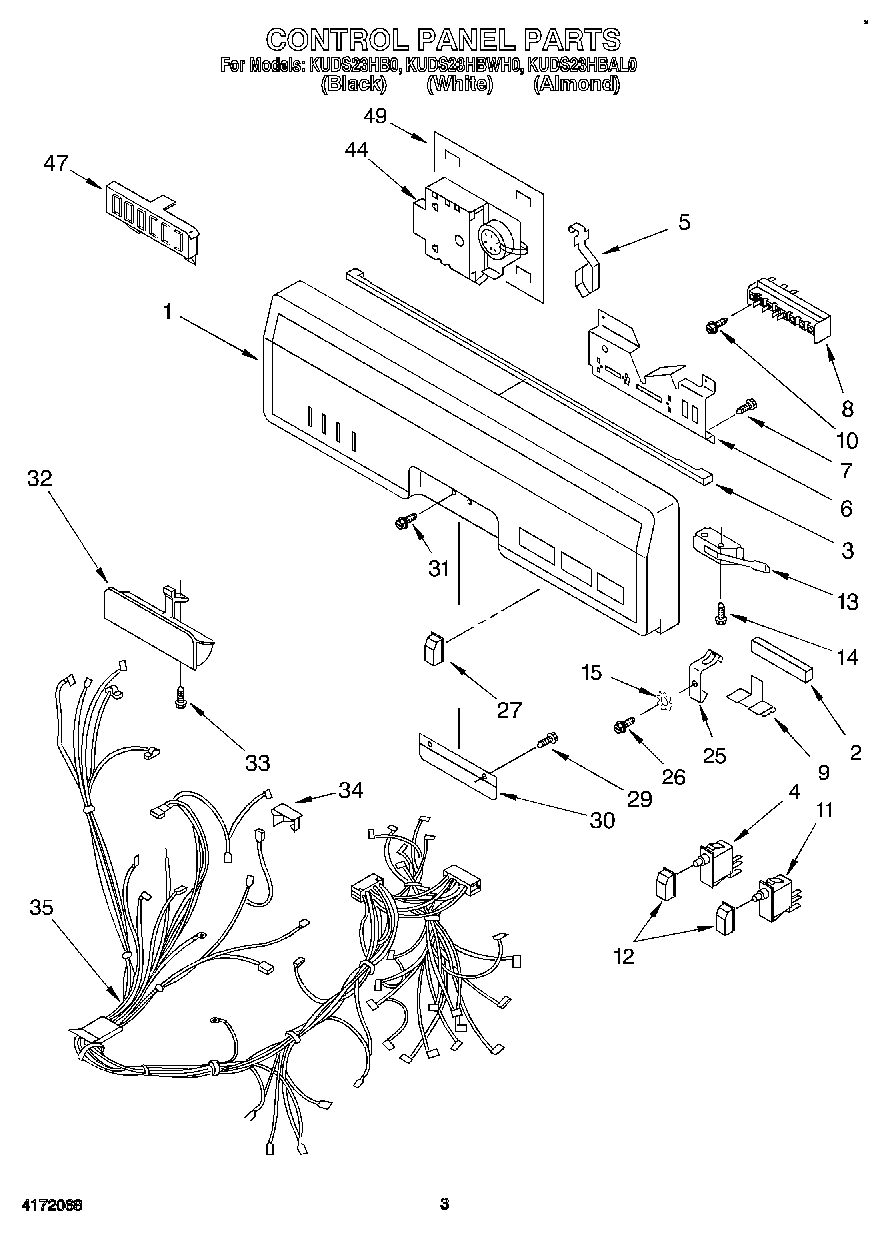

KUDS23HBAL0 03 – CONTROL PANEL, LIT/OPTIONAL

KUDS23HBAL0 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDS23HBAL0 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT9742248
	WPL LIT9742211
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	WPL 9741358
	WPL LIT9742114
	WPL LIT9742004
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	285006 Whirlpool Spray
	WPL 72112
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	Wood Top Kit
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
1	Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (White Model)
1	Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (Black Model)
1	Control Panel (Includes: Insert, No.3 Seal, and No.30 Bracket) (Almond Model)
2	Filler, Control Panel
3	Seal, Control Panel
4	Switch, Time Delay
5	Spring, Switch Cancel
6	Bracket, Program Switch
7	SCREW
8	Switch, Program
9	Clip, Retainer
10	Screw, 6-32 X 3/8
11	Switch, start
12	Button, Time Delay (2) (White Model)
12	Button, Time Delay (2) (Black Model)
12	Button, Time Delay (2) (Almond Model)
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
15	4159493 Whirlpool Lockwasher
25	Clip, Grounding (Front Panel)
26	Screw, 8-18 x 1/2
27	Button, Program Switch (8) (Almond Model)
27	Button, Program Switch (8) (White Model)
27	Button, Program Switch (6) (Black Model)
29	Screw
30	Bracket, Support
31	Screw, 8-32 x 1/2 (Black Model)
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch (Black Model)
32	Handle, Latch (Almond Model)
32	Handle, Latch (White Model)
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
44	Timer Assembly (
47	WPL 9742225
49	Barrier, Timer
