KUDS24SEAL1 07 – UPPER WASH AND RINSE

KUDS24SEAL1 07 – UPPER WASH AND RINSE

Written by

in

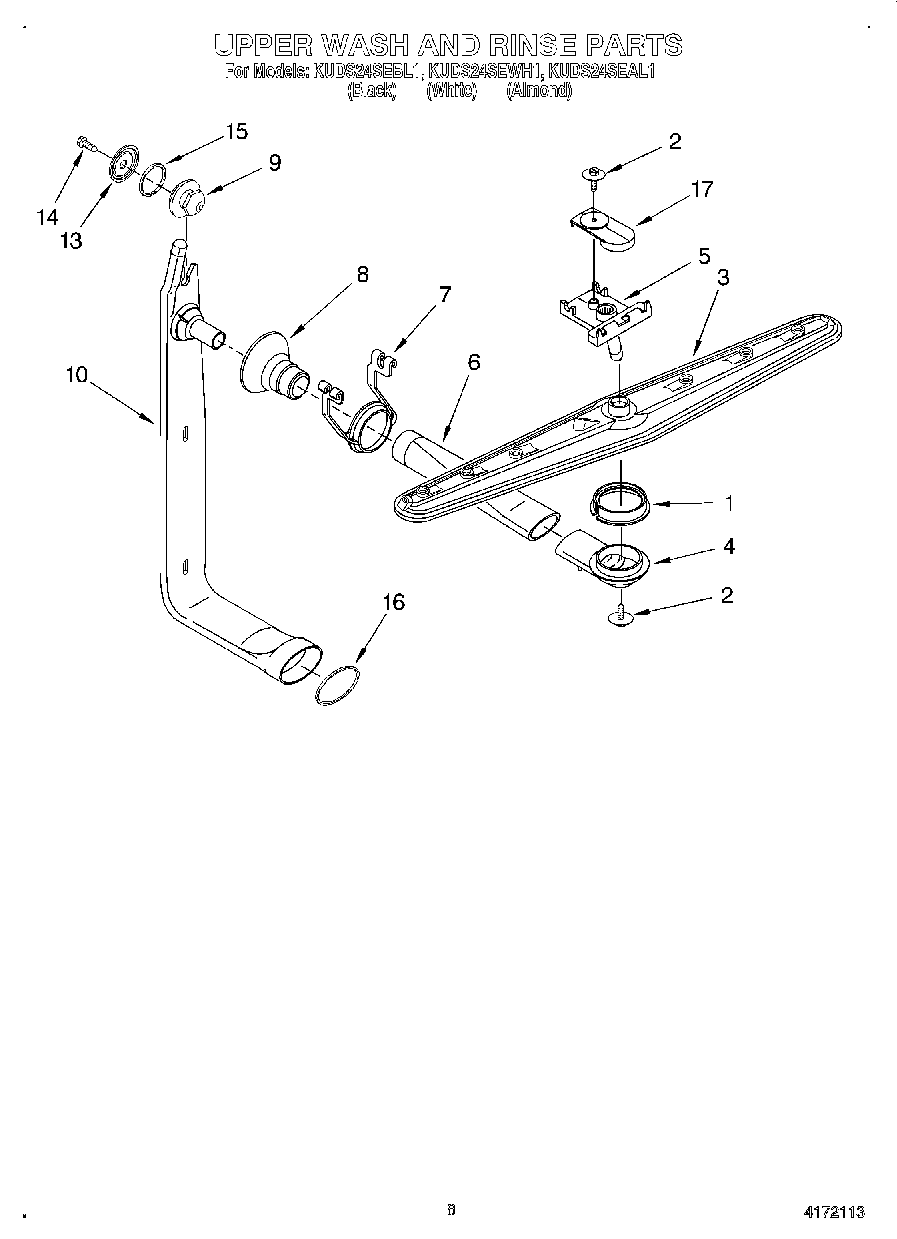

KUDS24SEAL1 07 – UPPER WASH AND RINSE

Products

PositionProduct
1WP3376846 Whirlpool Seal
2WPW10349488 Whirlpool Screw
3675808 Whirlpool Dishwasher Middle Spray Arm and Manifold Assembly
5WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
7WP3378186 Whirlpool Dishwasher Holder
9Connector (Includes Items 13, 14 & 15)
10Feed Tube Assembly
13Washer
14WP9740848 Whirlpool Dishwasher Screw
15Gasket, Connector
16Seal, Tube
17WP8268812 Whirlpool Dishwasher Mounting Assembly
